Главная
›
Mercedes
›
CAR
›
CLA 45 AMG
›
117.352
›
47 FUEL SYSTEM
›

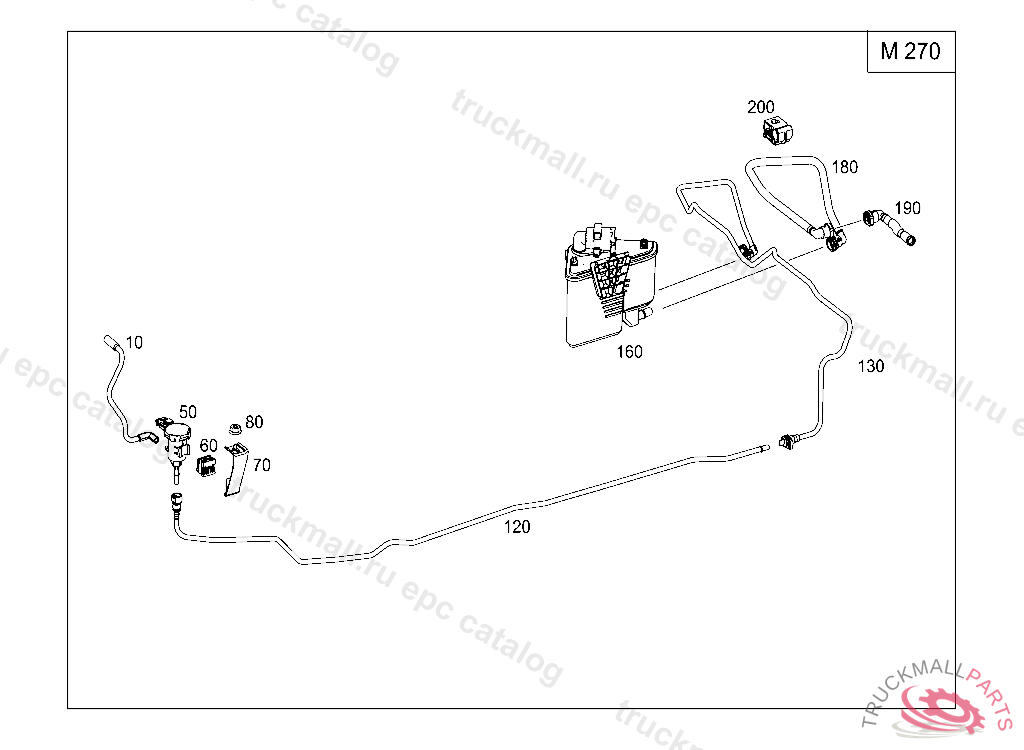

060 CLOSED FUEL-EVAPORATION-CONTROL SYSTEM IL. 1
Mercedes A2464702564 - Вентиляционная трубка
CLA 45 AMG 117.352
47 FUEL SYSTEM - 060 CLOSED FUEL-EVAPORATION-CONTROL SYSTEM IL. 1
Поз.
Артикул
Описание
10
A1764700164
PURGE LINE
50
A0014760532
PURGE VALVE
60
A0004764536
BRACKET PURGE VALVE AT BRACKET
70
A2464760236
BRACKET PURGE VALVE TO LONGITUDINAL MEMBER
80
N910112006001
NUT , Replaced By: N913023006001
120
A2464701064
PURGE LINE VALVE TO CONNECTING POINT
130
A2464702464
PURGE LINE SEPARATION POINT FOR FILTER
160
A2464700359
ACTIVATED CHARCOAL
160
A2464700259
ACTIVATED CHARCOAL
180
A2464702064
VENTING LINE CONNECTING POINT TO TANK
190
A2464702864
VENTING LINE ACTIVATED CHARCOAL FILTER TO CONNECTING POINT
190
A2464702564
VENTING LINE ACTIVATED CHARCOAL FILTER TO CONNECTING POINT
200
A0039950677
LINE FASTENER ATTACHMENT OF VENT LINE
