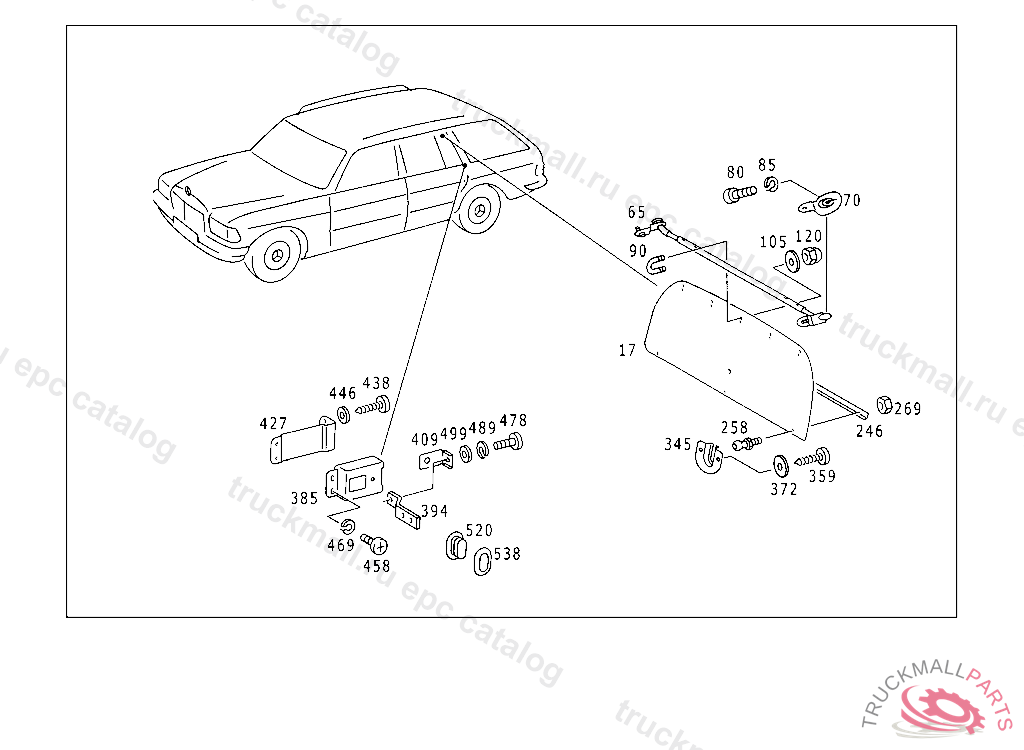

Поз.
Артикул
Описание
17
GLASS PANE
65
FIXTURE
70
BRACKET RIGHT
70
BRACKET RIGHT
70
BRACKET LEFT
70
BRACKET LEFT
80
SCREW , Replaced By: A1249900520
85
LOCK WASHER BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
90
CLAMP FIXTURE TO PANE
105
WASHER COVERING TO CYCLONE AIR TRAP
120
CAP NUT BRACKET TO SUPPORT
246
RAIL
258
BALL PIVOT RAIL TO WASHER
269
NUT CLAMP TO BRACKET
345
MOUNTING WASHER TO REAR SEAT BENCH BACKREST
359
SHEET METAL SCREW WINDOW SILL GIRDER LOWER PART,4 273689
372
WASHER COVERING TO CYCLONE AIR TRAP
385
FASTENER
394
PLATE
409
ANGLE
427
BRACKET
438
SHEET METAL SCREW ELECTRIC CABLE MOUNTING
446
WASHER BRACKET TO SUPPORT
458
SCREW STRAP TO BRACKET
469
LOCK WASHER WIRE CABLE TO LEVER
478
SCREW APPARATUS PLATE TO CAB,K 062140
489
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
499
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
520
EYE
538
EYE
