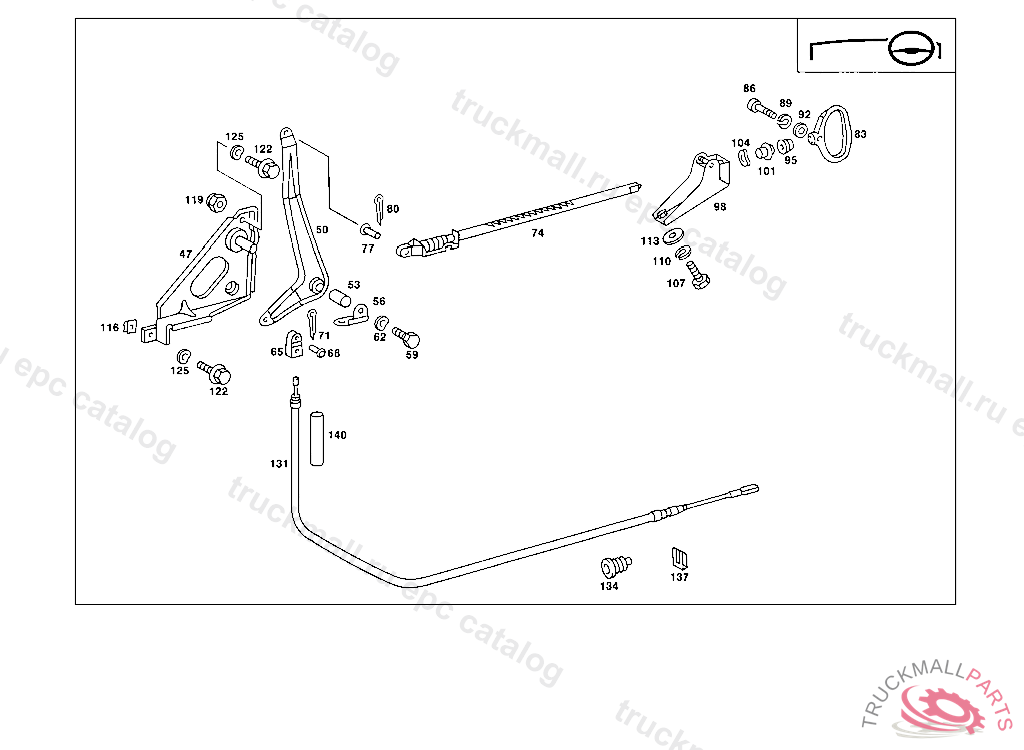

Поз.
Артикул
Описание
47
SUPPORT
50
BRAKE LEVER
53
BUSHING
56
BRACKET
59
SCREW , Replaced By: N304017006034
59
SCREW COVER PLATE TO COVER PLATE M 6 X 10
62
SPRING WASHER LICENSE PLATE TO BRACKET
65
CONNECTOR
68
PIN
71
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
74
RATCHET ROD
77
PIN
80
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
83
HANDLE , 000 093251 003 046617 102,103 073879 105 093170
86
SCREW HANDLE TO RATCHET ROD
92
WASHER BOOT TO CAB FLOOR
92
WASHER , Replaced By: N000433005304
95
DAMPING RING
98
BRACKET
101
SCREW PAWL BRACKET TO INSTRUMENT PANEL
104
SPRING WASHER LEVER TO BRACKET
107
SCREW COVER PLATE TO BRACKET
107
SCREW PUMP TO BRACKET
110
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
113
WASHER , Replaced By: N009021006208
113
WASHER COMPRESSED AIR LINE TO BRACKET
116
NUT RETAINER ,123 415950
119
NUT , Replaced By: N913019006000
119
NUT , Replaced By: N913012006001
119
NUT CLAMP TO BRACKET
122
SCREW , Replaced By: N910105006023
122
SCREW LEVER TO ENGINE CONTROL SHAFT
125
SPRING WASHER LICENSE PLATE TO BRACKET
131
BRAKE CABLE FRONT
134
CUP
137
SPRING
140
HOSE30 MM, ORDER BY THE METER
