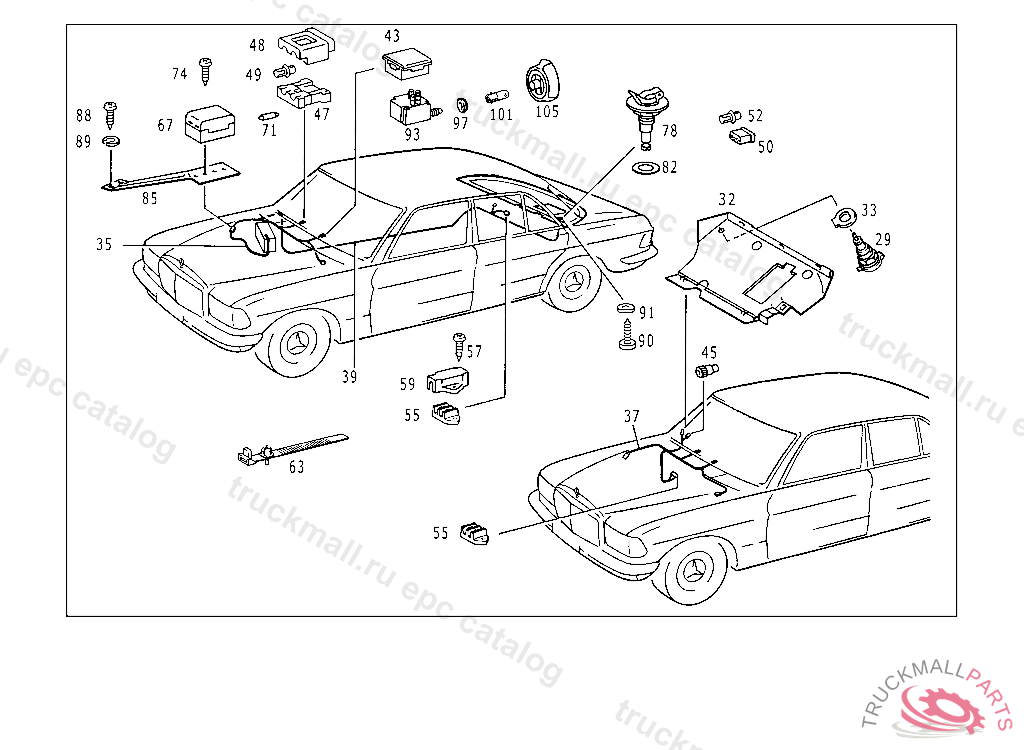

Поз.
Артикул
Описание
29
PLUG SOCKET AT COVERING
32
COVERING BELOW INSTRUMENT PANEL,TOP RIGHT
32
COVERING
33
GROUND STRAP TERMINAL AT COVERING
35
ELECTRIC CABLE FROM BATTERY TO FUSE BOX
37
ELECTRIC CABLE FROM ADDITIONAL FUSE BOX TO DRIVER'S LEGROOM ON THE RIGHT
39
ELECTRIC CABLE FROM FUSE BOX TO LUGGAGE COMPARTMENT
39
ELECTRIC CABLE FROM ADDITIONAL FUSE BOX PLUG SOCKET ON HAT TRAY
43
PLUG TRIPLE
45
PLUG
45
PLUG
47
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
48
COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
49
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
50
PIN BUSHING HOUSING BIPOLAR
52
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
52
PIN BUSHING , Replaced By: A0075458226
55
CABLE CONNECTOR , FROM CHASSIS:108.016 050831 108.018 053598 108.019 054235
57
SHEET METAL SCREW COVER TO CASE
57
SHEET METAL SCREW TACHOGRAPH
59
CAP
63
LOOM TIE
67
FUSE BOX BIPOLAR,K 100807 MIT AUSNANME VON K 093739
71
FUSEA16
71
FUSEA8
71
FUSE , Replaced By: N072581008101
74
SHEET METAL SCREW WINDOW SILL GIRDER LOWER PART,4 273689
78
PLUG SOCKET REAR PANEL,TOP
78
PLUG SOCKET REAR PANEL,TOP,HAT TRAY
82
WASHER REAR PANEL,TOP,HAT TRAY
85
BRACKET
88
SHEET METAL SCREW , Replaced By: N000000000459
88
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
89
LOCK WASHER T-FITTING TO BRACKET
90
SCREW FUSE BOX TO SIDE MEMBER,5 097182
90
SCREW , Replaced By: N000000001933
91
LOCK WASHER T-FITTING TO BRACKET
93
SWITCH INSTRUMENT PANEL
97
ESCUTCHEON
101
BULB , Replaced By: A6885447093
105
KNOB INSTRUMENT PANEL
