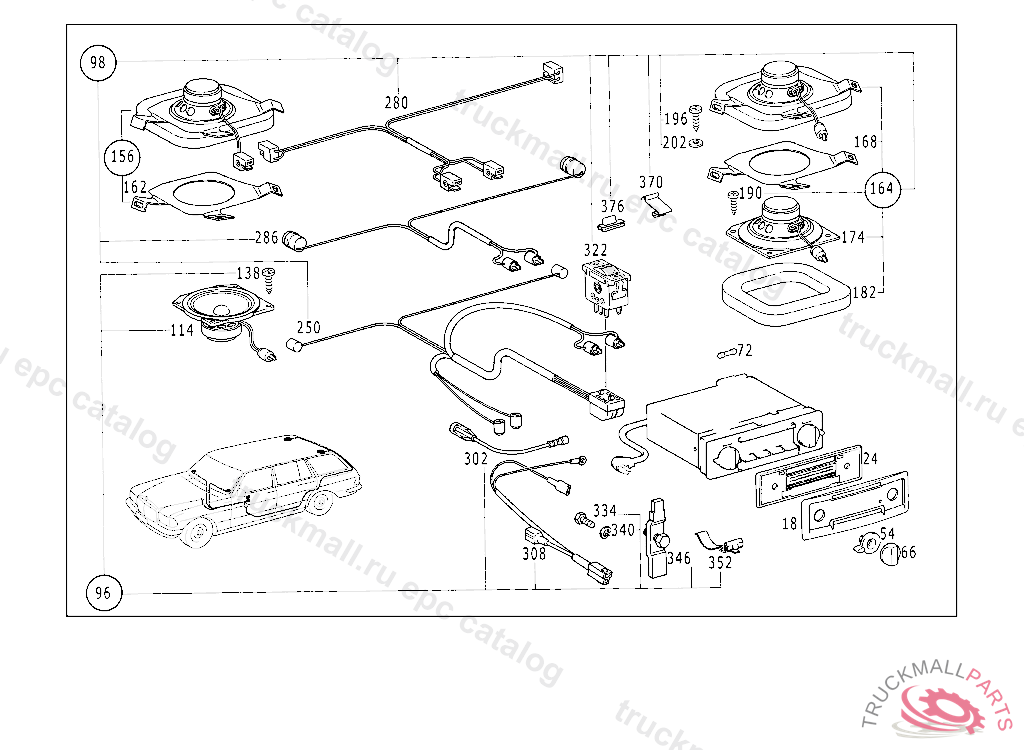

Поз.
Артикул
Описание
18
ORNAMENTAL FRAME WITH DIAL
54
LEVER
72
FUSE5 A
72
FUSE5 A
96
RADIO ACCESSORIES (INSTALLATION KIT)
98
RADIO ACCESSORIES REAR LOUDSPEAKER, THE FOLLOWING PARTS ARE NOT INCLUDED IN RANGE OF DELIVERY: VCOVERING IN HOUSING
114
LOUDSPEAKER FRONT
138
SHEET METAL SCREW , Replaced By: N000000000453
138
SHEET METAL SCREW MODULE TO HOUSING
156
CONSOLE WITH LOUDSPEAKER,LEFT
162
CONSOLE LEFT
164
CONSOLE WITH LOUDSPEAKER,RIGHT
168
CONSOLE REAR LOUDSPEAKER
174
LOUDSPEAKER
182
SEAL REAR LOUDSPEAKER
190
SHEET METAL SCREW , Replaced By: N000000000453
190
SHEET METAL SCREW MODULE TO HOUSING
196
SHEET METAL SCREW MODULE TO HOUSING
196
SHEET METAL SCREW , Replaced By: N000000000453
202
WASHER BRACKET TO SUPPORT
250
ELECTRIC CABLE FROM RADIO SET TO FADER CONTROL
280
ELECTRIC CABLE REAR LOUDSPEAKER
286
ELECTRIC CABLE REAR LOUDSPEAKER
302
ELECTRIC CABLE FROM FUSE TO RADIO SET
308
ELECTRIC CABLE RADIO CURRENT SUPPLY TO 001 820 42 86
322
SWITCH. FADER CONTROL
334
SCREW COVER PLATE TO COVER PLATE M 6 X 10
340
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
346
CLAMP RADIO SET FIXTURE IN HOUSING, UP TO CHASSIS107.022 009533 107.025 001704 107.026 002280 107.042 009859 107.045 003232 107.046 000488
352
SPRING RADIO SET FIXTURE IN HOUSING
370
CLIP
376
CLIP
999
LOUDSPEAKER FRONT B6 6 82 8921
