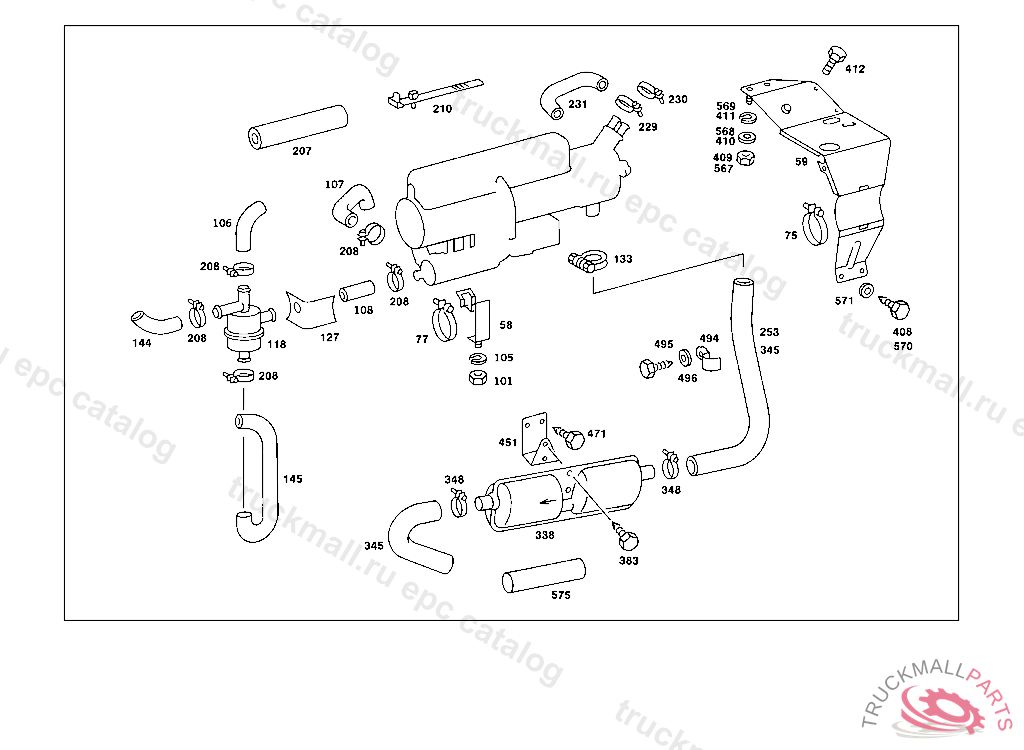

Поз.
Артикул
Описание
58
BRACKET CIRCULATION PUMP
59
BRACKET HEATER UNIT
75
LOOM TIE LINE MOUNTING
75
CLAMP , Replaced By: A0069972790
77
CLAMP , WITH BOOT
101
NUT BATTERY MOUNTING
101
NUT CYLINDER TO BRACKET TO0002902112
105
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
106
HOSE
107
HOSE FROM PUMP TO HEATING WATER PIPE
108
HOSE FROM WATER PUMP TO THERMOSTAT
118
THERMOSTAT ELEMENT
118
THERMOSTAT ELEMENT
118
THERMOSTAT ELEMENT , Replaced By: A0032033475
118
THERMOSTAT ELEMENT , Replaced By: A0032033575
118
THERMOSTAT ELEMENT , Replaced By: A0032034075
127
BRACKET THERMOSTAT
133
CLAMP EXHAUST PIPE
133
LOOM TIE. CLAMP BRAKE HOSE 45-55 MM, DISCONTINUED,PART IS NO LONGER REQUIRED
133
LOOM TIE. CLAMP HOSE FASTENING
133
CLAMP , Replaced By: A0049976890
133
CLAMP , Replaced By: A0069970690
133
CLAMP , Replaced By: A0069972690
144
HOSE FROM CHECK VALVE TO THERMOSTAT, 024,025 113919 ALSO INSTALLED ON 113701,113704,113706,113711,113713,113714,113717,113718,113721,113728-113732,113734,113737-113740, 113742,113745,113747,113748,113751,113752,113754-113783,113785-113791,113793-113835,113838-113842, 113845,113846,113848,113849,113853,113854,113857,113859,113860,113862-113864,113868-113870,113874, 113876-113883,113886,113889-113891,113893-113904,113906-113915,113917.
145
HOSE FROM HEATING WATER PIPE TO THERMOSTAT
207
INSULATING HOSE
208
HOSE CLAMP LINE MOUNTING
208
CLAMP , Replaced By: A0059970190
210
LOOM TIE
229
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
229
CLAMP , Replaced By: N000000000667
230
CLAMP , Replaced By: A0059970190
230
HOSE CLAMP LINE MOUNTING
231
HOSE FROM HEATING WATER PIPE TO HEATER
253
HOSE EXHAUST PIPE TO MUFFLER 1380 MM, ORDER BY THE METER
253
FRONT EXHAUST PIPE , Replaced By: A0004920901
253
FRONT EXHAUST PIPE , Replaced By: A0004920901
253
FRONT EXHAUST PIPE , Replaced By: A0004920901
253
FRONT EXHAUST PIPE , Replaced By: A0008354197
338
MUFFLER , Replaced By: A0034919001
338
MUFFLER
345
FRONT EXHAUST PIPE , Replaced By: A0008354197
345
FLEXIBLE METAL TUBE , Replaced By: A0004920901
345
HOSE EXHAUST PIPE TO MUFFLER 1380 MM, ORDER BY THE METER
348
CLAMP , Replaced By: A0049976890
348
CLAMP
348
CLAMP EXHAUST PIPE
383
SHEET METAL SCREW VALVE TO WINDOW SILL
408
SHEET METAL SCREW VALVE TO WINDOW SILL
409
NUT BATTERY MOUNTING
409
NUT CYLINDER TO BRACKET TO0002902112
410
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
410
WASHER COMPRESSED AIR LINE TO BRACKET
411
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
412
SCREW COVER PLATE TO BRACKET
412
SCREW PUMP TO BRACKET
451
BRACKET MUFFLER
451
BRACKET MUFFLER
451
BRACKET MUFFLER TO SIDE MEMBER
451
BRACKET MUFFLER
471
SHEET METAL SCREW , NOT USED
471
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
471
SHEET METAL SCREW VALVE TO WINDOW SILL
471
SHEET METAL SCREW ALARM UNIT TO STRUT
494
CLAMP , UP TO CHASSIS107.024 012078 107.044 029875
494
CLAMP , Replaced By: A1239950320
495
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
495
SHEET METAL SCREW BRACKET TO CAB FLOOR, EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 5 180559
495
SHEET METAL SCREW ALARM UNIT TO STRUT
496
WASHER BOOT TO CAB FLOOR
496
WASHER , Replaced By: N000433005304
567
NUT CYLINDER TO BRACKET TO0002902112
567
NUT BATTERY MOUNTING
568
WASHER COMPRESSED AIR LINE TO BRACKET
568
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
569
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
570
SHEET METAL SCREW , NOT USED
571
WASHER , Replaced By: N009021006208
571
WASHER COMPRESSED AIR LINE TO BRACKET
575
INSULATING HOSE
575
INSULATING HOSE , Replaced By: A1235060137
999
BRACKET LINE MOUNTING 11 MM
999
RUBBER MAT , 116.020 121073 116.024,025 153750 116.028,029 054878 116.032,033 097700 116.036 007063 123.020 130273 123.000,023 164267 123.003,026,028 081970 123.030 028220 123.007,033 066427 123.043 016041 123.050 003504 123.053 017763 123.083 005594 123.086 004314 123.093 005320
999
FUSEA16
999
FUSE FUSE BOX A 25
999
FUSE25 A
999
LOOM TIE , Replaced By: A0019974390
999
LOOM TIE TO MOUNT PLASTIC PIPING
999
PLUG , Replaced By: A0085453728, +002A0035452626, +001A0085453828
999
LOOM TIE , Replaced By: A0019974390
999
PLUG
999
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
999
LINE
999
LINE
999
HOSE220 MM, ORDER BY THE METER
999
HOSE FROM INTAKE MANIFOLD TO WARM-UP REGULATOR
999
CLAMP , Replaced By: A0004760436
999
CLAMP HOSE TO HOSE 20 MM
999
LINE LINE TO FIRE WALL
999
BRACKET HEATER UNIT
999
CABLE HARNESS FROM SUPPLY UNIT TO PUMP
999
HEATING UNIT RANGE OF DELIVERY
999
HEATING UNIT RANGE OF DELIVERY TO 123 500 15 98,123 500 16 98
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 00 98
999
HEATING UNIT , Replaced By: A1235000298
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 00 98
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 00 98
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 00 98
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 02 98, ONLY FOR USE WITH RANGE OF DELIVERY OF HEATER
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 02 98, ONLY FOR USE WITH RANGE OF DELIVERY OF HEATER
999
BRACKET CABLE CONNECTOR
999
HOSE , Replaced By: A1079971482
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
NUT CABLE TO ALTERNATOR,4 477130
999
SHEET METAL SCREW COVERING TO HOUSING
999
SHEET METAL SCREW
999
SHEET METAL SCREW
999
SHEET METAL SCREW BRACKET TO CAB
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
COMBINATION BOLT CABLE TO FUSE BOX
999
CLAMP , Replaced By: A0059970190
