Поз.
Артикул
Описание

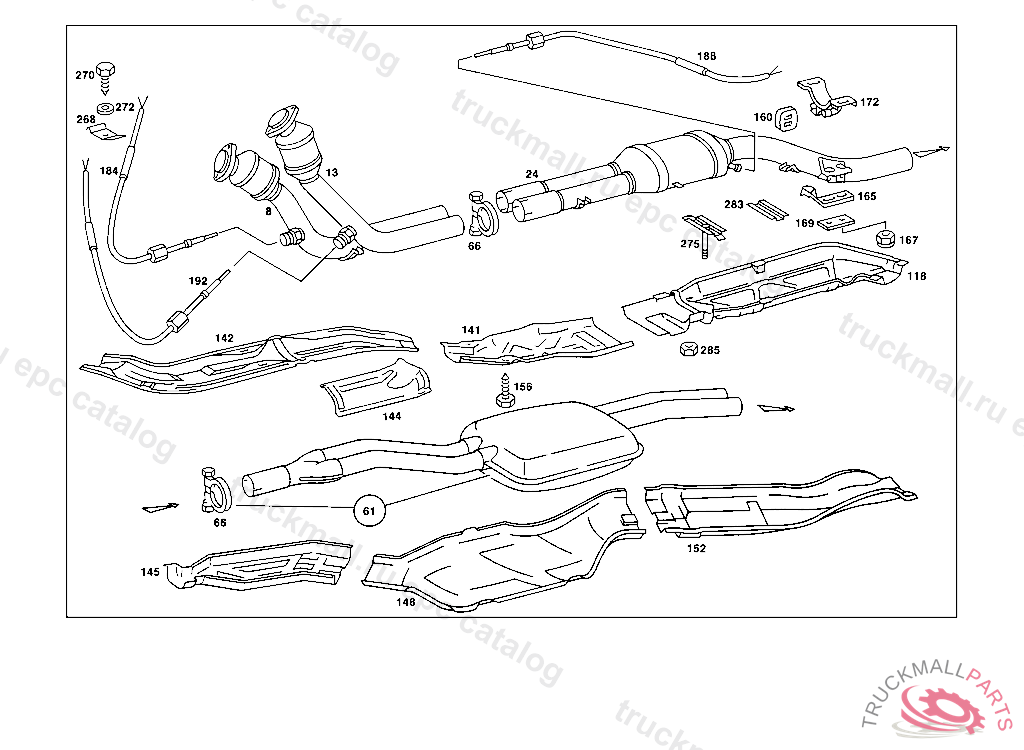

8
EXHAUST PIPE CYLINDERS 1-3
13
EXHAUST PIPE CYLINDERS 4-6
24
EXHAUST PIPE
61
EXHAUST MUFFLER WITH PIPE CENTRAL
61
EXHAUST PIPE , Replaced By: A1234901715
66
CLAMP , Replaced By: A1244900041
66
CLAMP , Replaced By: A1074900041
66
CLAMP , Replaced By: A1074920340
66
CLAMP , Replaced By: A1074900141
66
CLAMP , Replaced By: A0004900741
66
CLAMP
66
CLAMP , 003 078976 086 003333 EXCEPT FOR 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
118
PROTECTIVE PLATE ,123.033 041774,123.053 009521
118
PROTECTIVE PLATE ,123.033 041773,123.053 009520
141
PROTECTIVE PLATE
142
PROTECTIVE PLATE
144
PROTECTIVE PLATE ,123.033 041774,123.053 009521
145
PROTECTIVE PLATE
148
PROTECTIVE PLATE
152
PROTECTIVE PLATE
156
SHEET METAL SCREW BRACKET TO CAB FLOOR
156
COMBINATION BOLT , Replaced By: N007976004205, +001N000125004311
160
DAMPING PAD , 003 078977 086 003334 ALSO INSTALLED ON 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
165
BRACKET
167
NUT , Replaced By: A0009903250
167
NUT POWER CYLINDER TO BRACKET
169
BASE PLATE
172
BRACKET , Replaced By: A1234901640
172
BRACKET
184
SENDER UNIT
184
SENDER UNIT
188
SENDER UNIT
188
SENDER UNIT
192
SENDER UNIT
268
BRACKET
270
SHEET METAL SCREW BRACKET TO CAB FLOOR
272
WASHER , Replaced By: N000125004319
272
WASHER BRACKET TO SUPPORT
275
BRACKET , Replaced By: A1234900440
275
BRACKET
275
BRACKET ,123.033 041774,123.053 009521
275
BRACKET
283
CLAMP ,123.033 041773,123.053 009520
285
NUT ,123.033 041774,123.053 009521
999
SPACER TUBE
999
SPACER TUBE MAIN MUFFLER REAR SUSPENSION, FROM CHASSIS 116.024,025 113919 ALSO INSTALLED ON 113701,113704,113706,113711,113713,113714,113717,113718,113721,113728-113732,113734,113737-113740, 113742,113745,113747,113748,113751,113752,113754-113783,113785-113791,113793-113835,113838-113842, 113845,113846,113848,113849,113853,113854,113857,113859,113860,113862-113864,113868-113870,113874, 113876-113883,113886,113889-113891,113893-113904,113906-113915,113917.
999
INSULATION
999
SEAL RING
999
FLANGE , 003 114540 007 106557 102,103 362783 105 291289, Replaced By: A1264920745, +001N000931008327
999
BRACKET
999
DAMPING PAD , Replaced By: A1164920182
999
FLANGE GASKET
999
SPACER TUBE , Replaced By: A0004920153
999
CLAMP , Replaced By: A1124900341
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
CLAMP
999
SPACER TUBE , 120 023429 123 010750 126 011171 130 017637
999
SPRING , 120 023429 123 010750 126 011171 130 017637
999
EXHAUST MUFFLER WITH PIPE
999
EXHAUST MUFFLER WITH PIPE , Replaced By: A1234903215
999
FITTING
999
EXHAUST PIPE
999
EXHAUST MUFFLER WITH PIPE , Replaced By: A1234902915
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST MUFFLER WITH PIPE
999
EXHAUST MUFFLER WITH PIPE
999
EXHAUST MUFFLER WITH PIPE , Replaced By: A1234907815
999
EXHAUST MUFFLER WITH PIPE , UP TO IDENT NO. 003 038514 EXCEPT FOR 038269,038362,038363.
999
EXHAUST PIPE
999
EXHAUST PIPE CYLINDERS NOS.1-3, 003 078976 086 003333 EXCEPT FOR 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332. FROM IDENT NO. 003 038515 ALSO INSTALLED ON 038269,038362,038363.
999
EXHAUST PIPE CYLINDERS NOS.4-6
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
RUBBER BUFFER IN FRONT OF,AND BEHIND,POSTERIOR MUFFLER
999
SCREW DISTRIBUTOR TO FRAME
