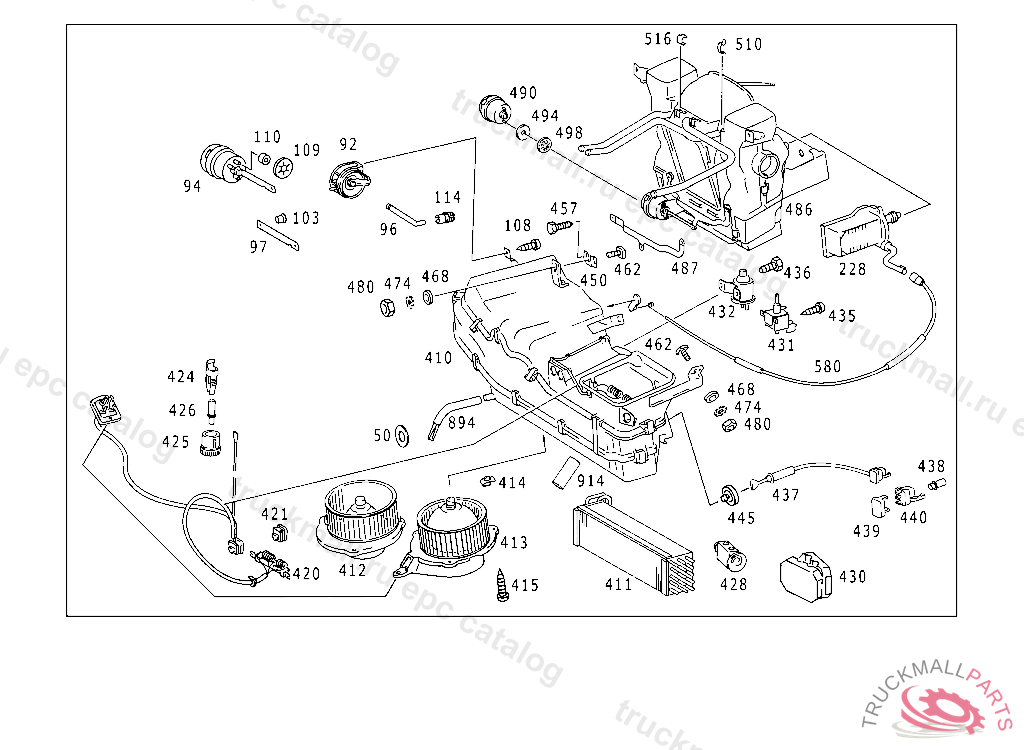

Поз.
Артикул
Описание
50
WASHER REAR PANEL,TOP,HAT TRAY
92
ELEMENT CIRCULATING AIR FLAP
94
ELEMENT VACUUM ELEMENT ON CIRCULATING AIR FLAP TO EVAPORATOR HOUSING
96
ROD , 000 108179 003 054792 007 045304 083 004251 086 003239 093 004119 102,103 087738 105 110886 183 007273 190 110978
97
ROD , 000 108180 003 054793 007 045305 083 004252 086 003240 093 004120 102,103 087739 105 110887 183 007274 190 110979
103
RIVET
108
SHEET METAL SCREW GROUND CABLE CONNECTION
109
LOCK. CLIP LICENSE PLATE FLAP
110
RUBBER RING ELECTRIC CABLE TO CABLE DUCT
114
CLIP
228
SWITCH BLOWER, FROM CHASSIS 123.086 007098 123.093 008964 123.183 015309 123.190 021905 123.193 001980
410
EVAPORATORFA. BEHR
410
EVAPORATOR
410
EVAPORATORFA. SIEMENS
410
EVAPORATORSIEMENS
411
EVAPORATORTO 123 830 20 58
411
EVAPORATOR
411
EVAPORATORTO 123 830 09 58
411
EVAPORATORTO 123 830 24 58,123 830 37 58
411
EVAPORATORTO 123 830 42 58
411
EVAPORATORTO 123 830 30 58
412
ELECTRIC MOTOR EVAPORATOR CASE, 023 108179 033 045304 123 087738 130 110886
413
ELECTRIC MOTOR EVAPORATOR CASE
413
ELECTRIC MOTOR EVAPORATOR CASE
413
ELECTRIC MOTOR EVAPORATOR CASE
413
ELECTRIC MOTOR EVAPORATOR CASE
413
ELECTRIC MOTOR EVAPORATOR CASE
414
LOCK
415
SHEET METAL SCREW BRACKET TO FIRE WALL, Replaced By: N000000000529
415
SHEET METAL SCREW BRACKET TO FIRE WALL
420
RESISTOR EVAPORATOR CASE
420
ELECTRICAL UNIT EVAPORATOR CASE
420
RESISTOR EVAPORATOR CASE
420
RESISTOR EVAPORATOR CASE
420
RESISTOR AT EVAPORATOR CASE
421
PLUG HOUSING DOUBLE
424
PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104
425
COVERTO 011 545 10 28
426
ROUND PIN BUSHING4 MM2
428
VALVE , Replaced By: A1268300284
428
VALVE EXPANSION VALVE TO 123 830 09 58, 023 173443 033 070365 123 169394 130 181803
428
VALVE EXPANSION VALVE TO 123 830 09 58, 023 173443 033 070365 123 169394 130 181803
430
HOUSING
431
VALVE EVAPORATOR CASE
432
VALVE (3/2-WAY SOLENOID VALVE)
435
SHEET METAL SCREW
436
SHEET METAL SCREW
436
SCREW , 023 194297 033 082968 123 219617 130 218979 223 013443
437
TEMPERATURE SENSOR EVAPORATOR
437
TEMPERATURE SENSOR EVAPORATOR
438
ROUND PIN BUSHING2.5 MM2
439
COVERTO 010 545 10 28
440
PIN BUSHING HOUSING BIPOLAR
445
GROMMET
450
BRACKET EVAPORATOR CASE
457
SHEET METAL SCREW BRACKET TO CAB FLOOR
462
SCREW
468
WASHER COMPRESSED AIR LINE TO BRACKET
474
TOOTHED WASHER MASKED STOP LAMP
480
NUT BALL PIVOT TO LEVER
480
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
486
HEATER CASE , 023 132842 033 054320 123 116633 130 137940
486
HEATER CASE , UP TO CHASSIS: 123.083 UNTIL PRODUCTION STOP 123.086 007097 123.093 008963 123.183 015308 123.190 021904 123.193 001979
487
LEVER LEGROOM FLAP LEVER
490
ELEMENT DEFROSTER NOZZLE
490
ELEMENT LEGROOM FLAP LEVER
494
RUBBER RING ELECTRIC CABLE TO CABLE DUCT
498
LOCK. CLIP LICENSE PLATE FLAP
510
SPRING
516
SPRING
516
SPRING , Replaced By: A0008352134
580
WIRE CABLE WIRE CABLE TO AIR FLAP
580
WIRE CABLE WIRE CABLE TO AIR FLAP
580
WIRE CABLE WIRE CABLE TO AIR FLAP
894
HOSE CONDENSED WATER DRAIN FROM AIR CONDITIONER CASE TO TUNNEL
914
HOSE CONDENSED WATER DRAIN
999
AIR CONDITIONER RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION
999
AIR CONDITIONER RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION
999
AIR CONDITIONER RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION
