Mercedes A1168210097 - Шланг

200 E / E 200 200-320 FROM 10/92, 200D-300D FROM 7/93 124.019

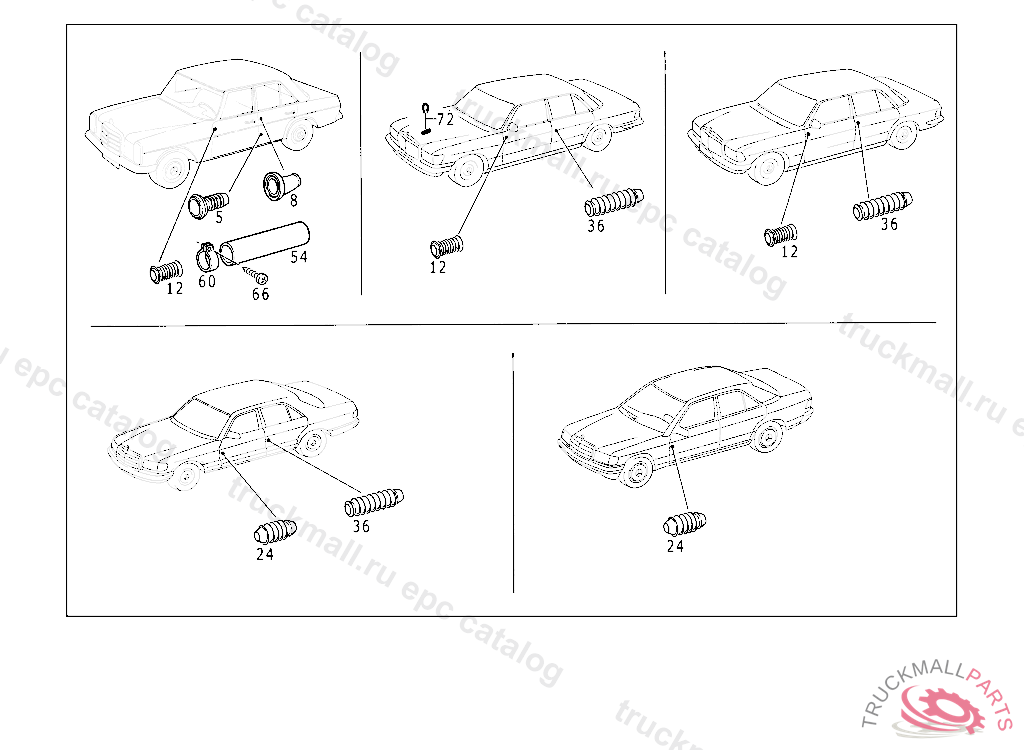

82 ELECTRICAL SYSTEM - 001 PROTECTIVE HOSES (TYPES 124,126,201 SEE STANDARD VERSION)

Поз.
Артикул
Описание
5
A1099970081
GROMMET CABLE PASSAGE THRU CENTRAL PILLARS
8
A1099970181
GROMMET (CABLE HARNESS THRU REAR DOOR)
12
A1078210097
HOSE LEFT AND RIGHT FRONT DOOR CABLE HARNESS
12
A1158210097
HOSE
24
A1268210397
HOSE FRONT-PANEL-PILLAR-TO-FRONT-DOOR-CABLE PROTECTIVE HOSE
36
A1168210097
HOSE CENTRAL-PILLAR-TO-REAR-DOOR-CABLE PROTECTIVE HOSE
36
A1238210697
HOSE CENTRAL-PILLAR-TO-REAR-DOOR-CABLE PROTECTIVE HOSE
54
A0009870527
PLASTIC PIPE FROM CENTRAL PILLAR TO REAR DOOR 500 MM, ORDER BY THE METER STATE COLOR NUMBER WHEN ORDERING
60
A1099950020
CLAMP , 107.023 UP TO CHASSIS 009336,107.024 UP TO006399,107.043 UP TO CHASSIS 011238,107.044 UP TO CHASSIS 018373,CONTINUED SEEFOOTNOTE 50
66
N007981004233
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
66
N000000000460
SHEET METAL SCREW BRACKET TO FLOOR PLATE
72
A0019877625
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
