Mercedes A1247320709 -

260 E 200-300 9/89-10/92, 200D-300D 9/89-7/93 124.027

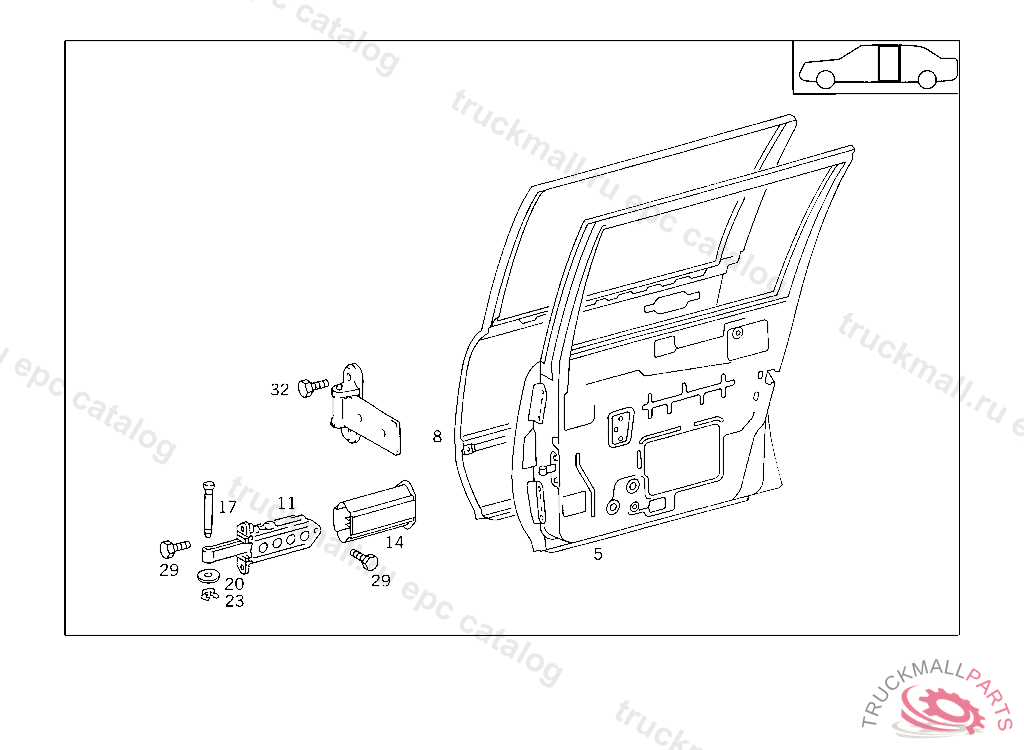

73 DOORS - 100 CENTRAL DOOR

Поз.
Артикул
Описание
5
A1247304305
DOOR SHELL CENTRAL LEFT
5
A1247304405
DOOR SHELL CENTRAL RIGHT
8
A1247320809
PANELLING CENTRAL RIGHT
8
A1247320709
PANELLING CENTRAL LEFT
11
A1267200516
DOOR CHECK FRONT DOORS
14
A1247220008
COVERING
17
A1239910207
PIN
20
A1269900840
WASHER , 023 195544 033 091265 123 258174 130 242529
20
A1269900940
WASHER SEAT HEATER CONTROL TO CROSS MEMBER AND TO FRONT SEAT
23
N912001006002
LOCK
29
N914007006012
COMBINATION BOLT , Replaced By: N304017006018, +001N006902006102
29
N304017006034
SCREW COVER PLATE TO COVER PLATE M 6 X 10
29
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
32
A2019900017
SCREW REAR DOORS TO CENTRAL PILLAR HINGES
