Mercedes N000912008098 - SCHRAUBE DIN 912-M 8

300 E 2.8 USA FROM 09/89 124.028

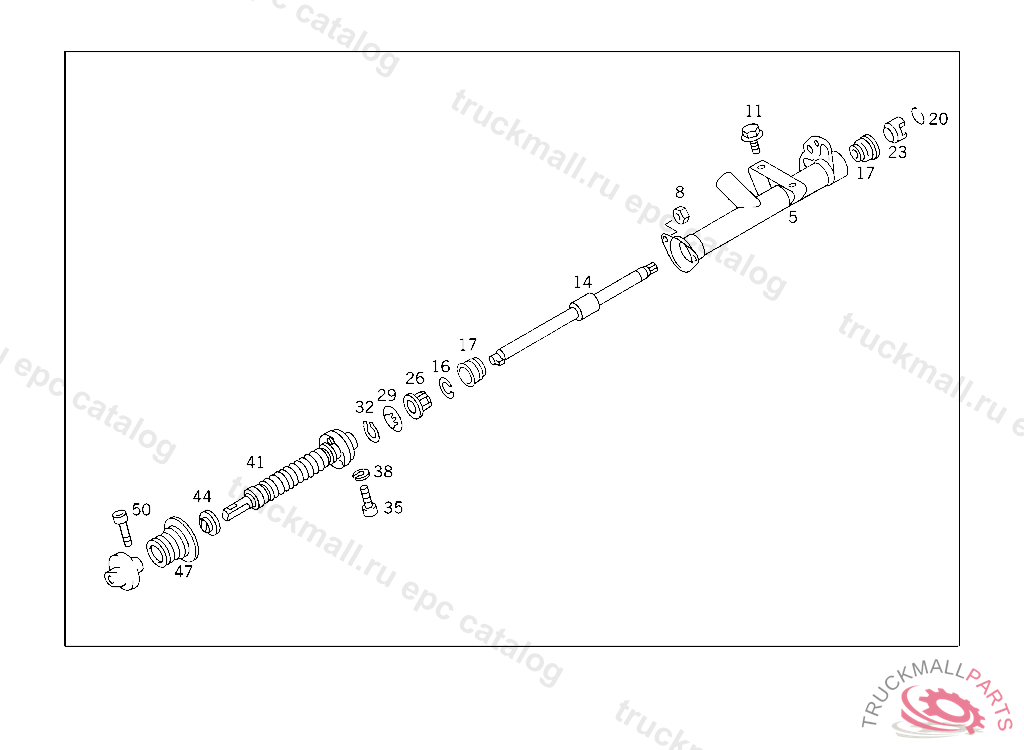

46 STEERING - 075 STEERG.COLUMN JACKET TUBE & STEERG. SHAFT

Поз.
Артикул
Описание
5
A1244602216
STEER. COLUMN JACKET TUBE
8
N304032006008
NUT BATTERY MOUNTING
8
N000934006013
NUT CYLINDER TO BRACKET TO0002902112
11
A2019900204
SCREW STEERING COLUMN JACKET TUBE TO BODY
14
A1244601509
STEERING SHAFT TOP
17
A1269810025
BALL BEARING
20
N912009025100
SNAP RING
23
A1264620051
RING
26
A1234620417
CONICAL SLEEVE , 023 108180 033 045305 123 087739 130 110887
29
A1239930226
DISC SPRING , 023 108180 033 045305 123 087739 130 110887
32
N900055025401
LOCK RING
35
N000912008098
SCREW , Replaced By: N000912008204
38
N007980008003
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL, Replaced By: N912006008000
38
N912006008000
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
41
A1244600709
STEERING SHAFT BOTTOM
44
A1234620460
SEAL RING
47
A1244621396
BOOT
47
A1244620396
BOOT , Replaced By: A1244621396
50
A1239900720
SCREW , Replaced By: A2029902101
50
A2029902101
SCREW
