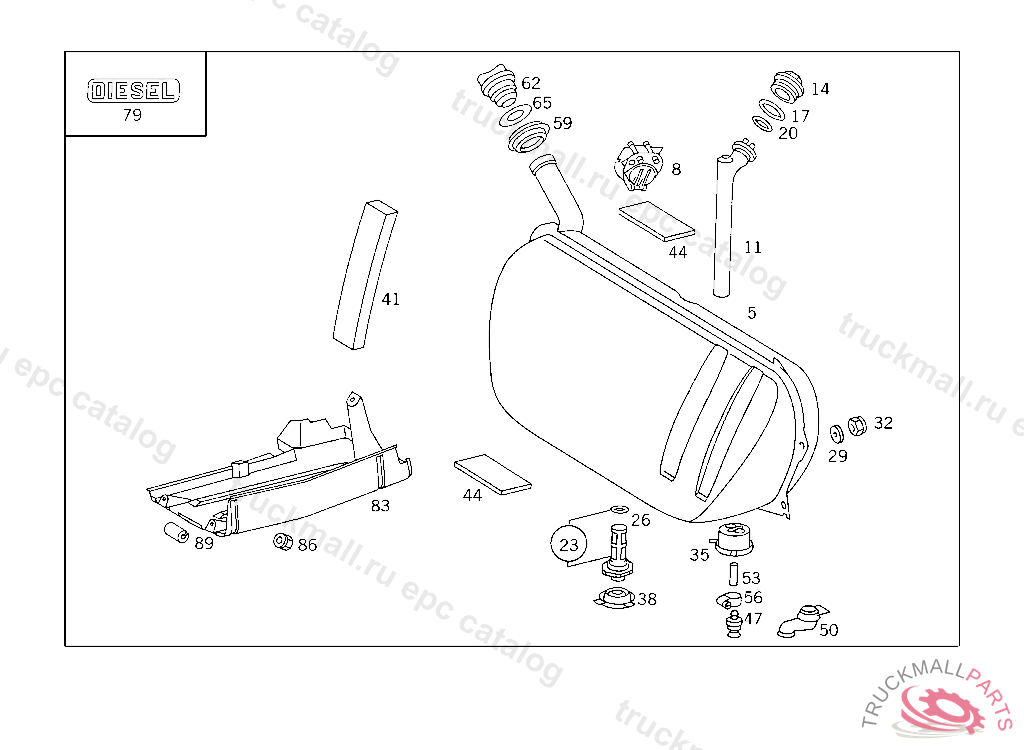

Поз.
Артикул
Описание
5
FUEL TANK70 L.
8
FUNNEL , Replaced By: A1694700029
11
GAUGE SENDER UNIT70 L
14
FLANGE
17
SEAL RING
20
SEAL RING
23
FUEL STRAINER PARTS KIT
26
SEAL RING
29
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
32
NUT SWITCH TO FLOOR PLATE
35
BOOT LEFT
38
BOOT RIGHT
41
PAD FUEL TANK,FRONT SIDE, 020 008805 023 010290 026 002881 120 012502 123 005628 126 006101 130 009362
44
PAD FUEL TANK BOTTOM SIDE
59
GROMMET FILLER NECK THRU FENDER RECESS
62
FILLER CAP , Replaced By: A0004700730
65
SEAL RING
83
PROTECTIVE COVER , Replaced By: A1244781237
83
PROTECTIVE COVER , USED WITHOUT AUTOMATIC LOCKING DIFFERENTIAL (A S D)
86
NUT COVERING TO CAB FIRE WALL
89
HOSE , ORDER BY THE METER 107.022 005201 ALSO INSTALLED ON 005190-005192,005194-005199. 107.023 012497 107.024 021804 ALSO INSTALLED ON 021794,021804
