Mercedes N071805013203 - Втулка

OM 352 A 353.997

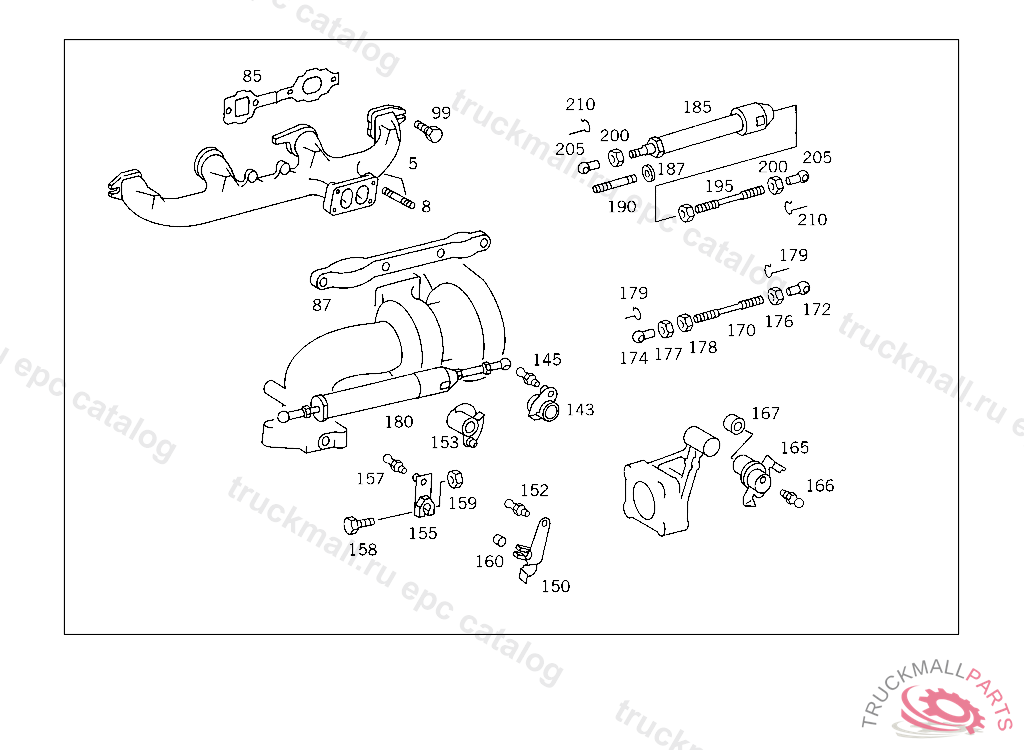

14 EXHAUST MANIFOLD - 001 INTAKE AND EXHAUST MANIFOLDS IL. 1

Поз.
Артикул
Описание
5
A3521404909
EXHAUST MANIFOLD WITH STUDS
8
A0009906005
STUD CONNECTING PIPE TO EXHAUST MANIFOLD
85
A3521420480
GASKET EXHAUST MANIFOLD
87
A3521420912
CLAMPING PIECE
99
A0079900401
SCREW BRACKET TO INTAKE MANIFOLD, NOT USED
99
N304014010021
SCREW
150
A3521407732
LEVER EXHAUST-BRAKE THROTTLE VALVE
152
N071803010209
BALL PIVOT , Replaced By: A3129910120
152
A3129910120
BALL PIVOT LEVER
158
N304017006012
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
159
N304032006004
NUT SPRING-LOADED PUSH ROD
185
A0004301326
CYLINDER LOCKING MECHANISM
187
A0109973246
SEAL RING
195
N900331008419
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
200
N304035008001
NUT
205
N071805013203
BALL SOCKET ROD TO BALL PIVOT
210
N071805013402
SECURING CLIP. CIRCLIP
