Mercedes A0005451050 -

300 E-24 JAPAN FROM 09/89 124.031

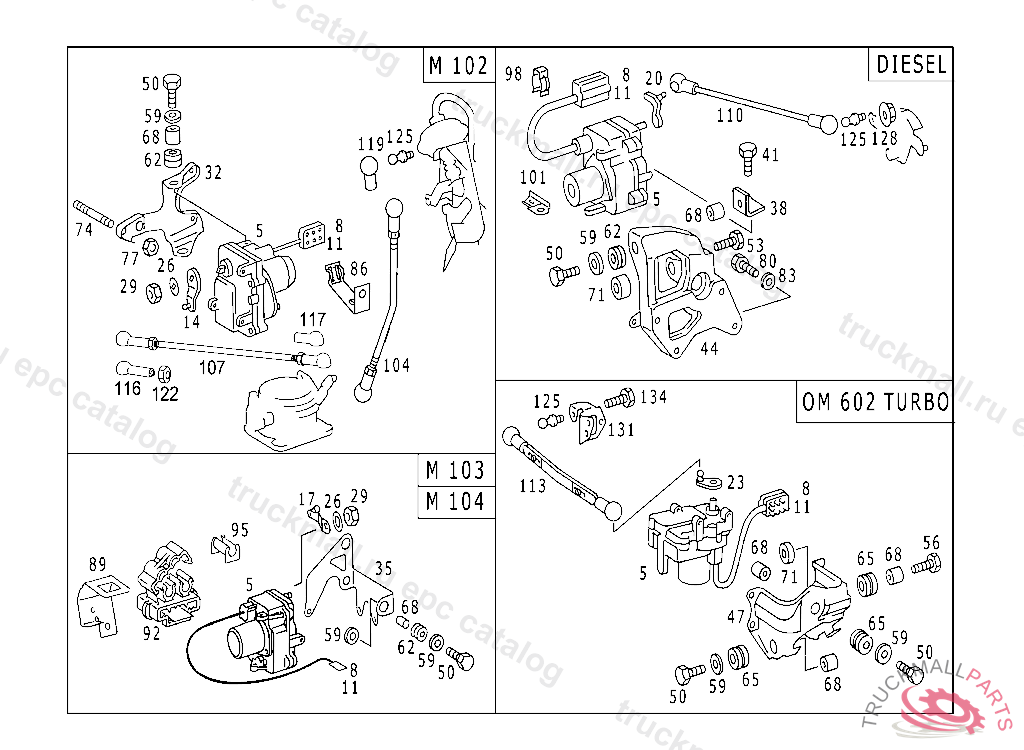

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 750 TEMPOMAT (CRUISE CONTROL) IL. 1

Поз.
Артикул
Описание
5
A0025458632
CONTROL UNIT ACTUATOR
8
A0095453628
COVERTO 006 545 81 28
8
A0095455328
PLUG HOUSING FINAL CONTROL ELEMENT, 8-POLE
11
A0015453826
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
17
A1245400184
LEVER
26
A0009941310
LOCK
29
N000439008213
NUT
35
A1030700140
BRACKET FINAL CONTROL ELEMENT
50
N000933006194
SCREW 3/2-WAY VALVE TO BRACKET
59
A3859901140
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
62
A1029970081
GROMMET ACTUATOR TO BRACKET
68
A0009923760
SPACER TUBE ACTUATOR TO BRACKET
68
A1021500077
SPACER ACTUATOR TO BRACKET, Replaced By: A0009923760
86
A1245451740
BRACKET FINAL CONTROL ELEMENT PLUG-CONNECTION TO COOLING WATER EXPANSION TANK
89
A1030721340
BRACKET FINAL CONTROL ELEMENT CABLE TO INTAKE MANIFOLD STAY,FRONT
92
A0005464543
BRACKET FINAL CONTROL ELEMENT CABLE
95
A0005451050
BUSHING FINAL CONTROL ELEMENT TO BRACKET
