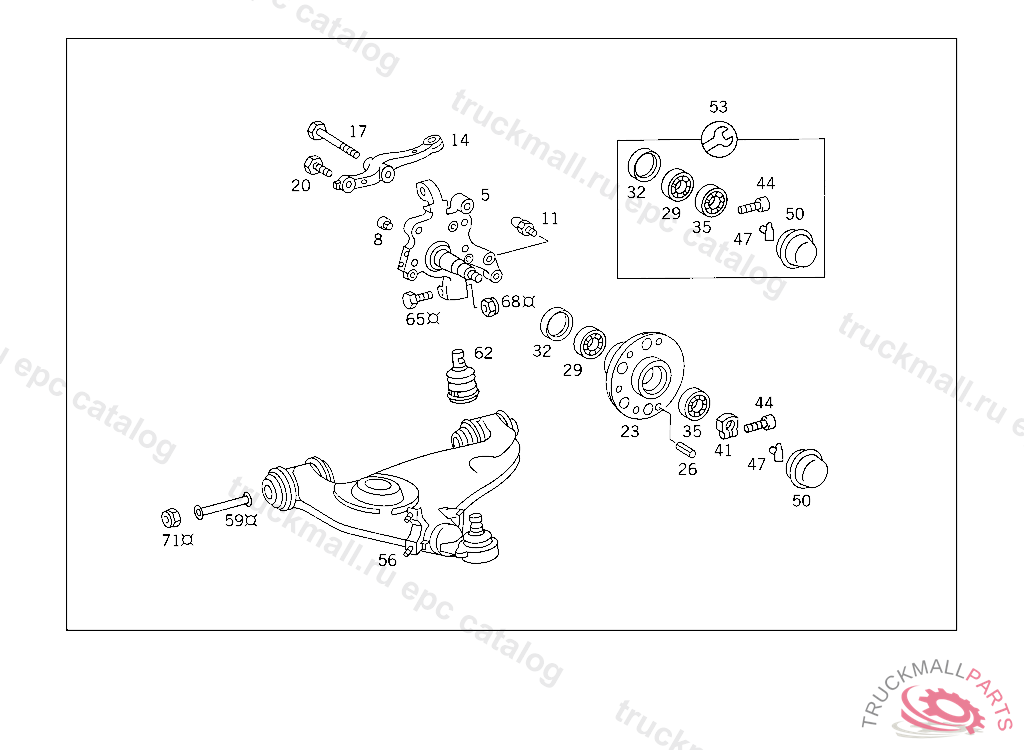

Поз.
Артикул
Описание
5
STEERING KNUCKLE LEFT, F 216215
5
STEERING KNUCKLE RIGHT, F 216215
8
PIN (CENTERING PIN)
8
PIN (CENTERING PIN)
8
PIN (CENTERING PIN)
11
PIN STEERING STOP
14
STEERING ARM RIGHT
14
STEERING ARM LEFT
17
SCREW STEERING ARM TO STEERING KNUCKLE
20
SCREW , Replaced By: A1244210571
20
HEXAGON HEAD BOLT STEERING ARM TO STEERING KNUCKLE
23
FRONT WHEEL HUB
26
CLAMPING SLEEVE BRAKE DISC TO WHEEL HUB
26
CLAMPING PIN , Replaced By: N001481012018
29
TAPERED ROLLER BEARING INSIDE,F 023122 EXCEPT FOR F 027127
32
SEAL RING ,F 023122 EXCEPT FOR F 027127
35
TAPERED ROLLER BEARING OUTSIDE
41
NUT FRONT WHEEL HUB TO STEERING KNUCKLE
44
SCREW CHARGE AIR PIPE TO ELECTRONIC GAS ACTUATOR M 6X25
47
CONTACT SPRING FRONT WHEEL HUB TO STEERING KNUCKLE
50
LOCKING CAP FRONT WHEEL HUB TO STEERING KNUCKLE
53
REPAIR KIT , Replaced By: A1293300351
53
ANTI-FRICTION BEARING FRONT WHEEL BEARING
56
TRANSVERSE CONTROL ARM BOTTOM RIGHT, INAPPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
56
TRANSVERSE CONTROL ARM BOTTOM LEFT
59
CLAMPING PIECE
65
SCREW LOWER CONTROL ARM TO STEERING KNUCKLE
65
SCREW , Replaced By: A1299901001
68
NUT , Replaced By: N910113012003
71
NUT LOWER CONTROL ARM TO FRAME
71
SCREWED INSERT LOWER CONTROL ARM TO FRAME, F 204092
