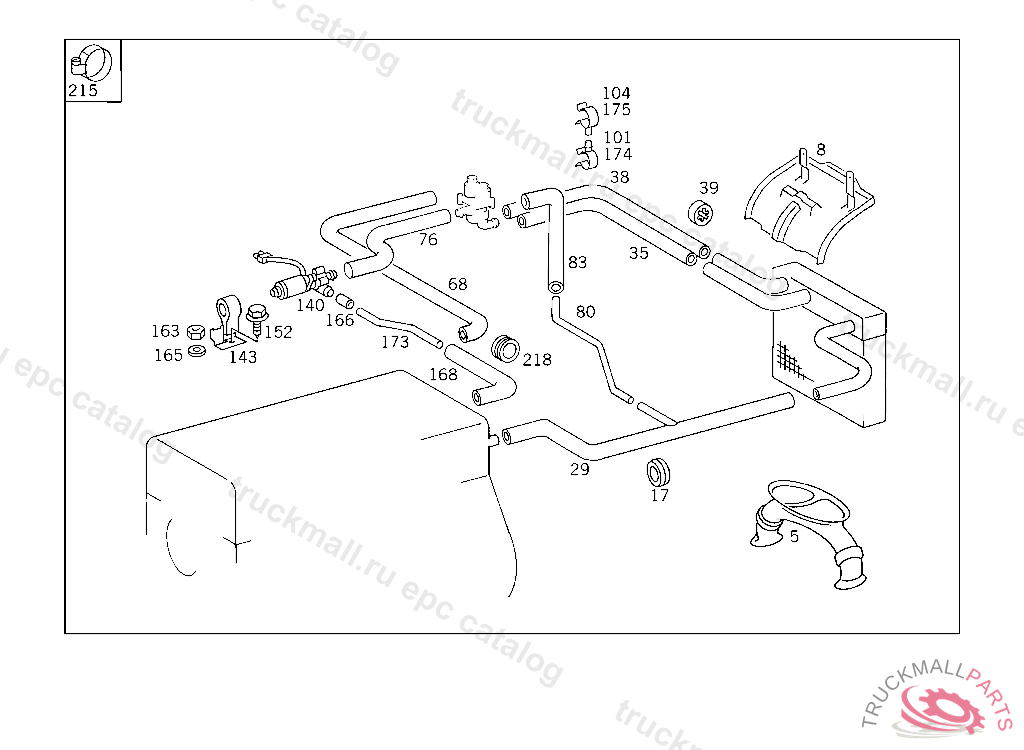

Поз.
Артикул
Описание
5
PIPE SOCKET WATER DRAIN OF CENTRAL PART BELOW WINDSHIELD
8
WATER BAFFLE WATER DRAIN OF CENTRAL PART BELOW WINDSHIELD
17
GROMMET FEED LINE TO FIRE WALL,F 016102
29
HOSE FROM ENGINE TO FEED LINE,C 096886
29
HOSE FROM ENGINE TO FEED LINE,C 096887
29
HOSE FROM ENGINE TO FEED LINE, USED WITHOUT HEATED WIPER SYSTEM,C 096886
35
HOSE FROM RIGHT HEAT EXCHANGER TO WATER VALVE
38
HOSE FROM RIGHT HEAT EXCHANGER TO WATER VALVE, ONLY USED WITH HEATING AUTOMATICS AND WITH TEMPMATIK
38
HOSE FROM RIGHT HEAT EXCHANGER TO WATER VALVE, ONLY USED WITH AUTOMATIC AIR CONDITIONERC 040818
39
BUFFER. RUBBER RING PROTECTION AGAINST SCORING FOR HOSE
68
HOSE FROM DOUBLE WATER VALVE TO PIPE LINE,F 016102
76
HOSE FROM DOUBLE WATER VALVE TO RECIRCULTG. PUMP, USED WITHOUT HEATED WIPER SYSTEM,C 040818
76
HOSE FROM DOUBLE WATER VALVE TO RECIRCULTG. PUMP, USED WITHOUT HEATED WIPER SYSTEM,C 040817
80
PIPE LINE FEED LINE,NOT WITH HEATED WINDSCREEN WASHER SYSTEM,C 096887
83
HOSE BYPASS LINE TO WATER VALVE,C 096887
101
CLAMP6/14-15 MM
104
CLAMP
140
RECIRCULATING PUMP. PUMP , NOT FOR AUSTRALIA
143
BRACKET
152
SCREW BRACKET TO FIRE WALL
152
SHEET METAL SCREW , Replaced By: N000000000542
163
NUT BALL PIVOT TO LEVER
165
WASHER COMPRESSED AIR LINE TO BRACKET
165
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
166
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR, ORDER BY THE METER
168
HOSE FROM RECIRCULATING PUMP TO ENGINE
173
PIPE LINE FROM RETURN LINE TO ENGINE
174
CLAMP HOSE TO HOSE
175
CLAMP
215
LOOM TIE , Replaced By: N000000000668
215
CLAMP , Replaced By: N000000000667
215
CLAMP25-40X13 MM
215
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
215
HOSE CLAMP LINE MOUNTING
215
CLAMP PRESSURE REGULATOR
218
GROMMET FEED LINE TO FIRE WALL,F 016102
