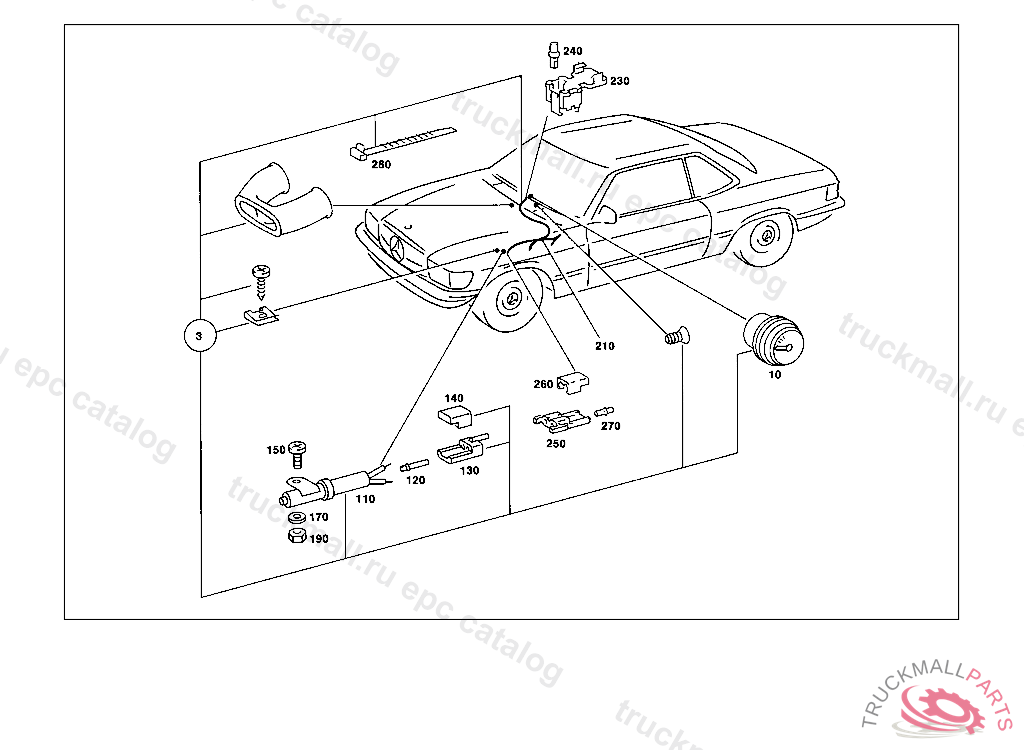

Поз.
Артикул
Описание
3
INDICATOR RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION
10
WARNING INDICATOR (OUTBOARD TEMPERATURE INDICATOR)
110
SENDER UNIT , Replaced By: A0075423317
110
SENDER UNIT , Replaced By: A0015422618
110
SENDER UNIT OUTBOARD TEMPERATURE FEELER, TO BE ADAPTED DURING ASSEMBLY
120
PLUG PIN , 107.042 L.H.D. A 005252 107.042 R.H.D. A 007245 123. L.H.D. A 154544,F 019237 123. R.H.D. A 118487,F 020926
120
PLUG PIN , Replaced By: A0135457928
130
PLUG HOUSING BIPOLAR
140
COVERTO 008 545 08 28,008 545 09 28
150
SCREW , Replaced By: N000000001145
150
SCREW BRACKET TO COVERING
170
WASHER COMPRESSED AIR LINE TO BRACKET
170
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
190
NUT BALL PIVOT TO LEVER
210
CABLE HARNESS , Replaced By: A1075401010
210
CABLE HARNESS OUTBOARD TEMPERATURE FEELER
230
PIN BUSHING HOUSING CRYOSTAT
240
PIN BUSHING , Replaced By: A0025459926
240
ROUND PIN BUSHING2.5 MM2
250
PIN BUSHING HOUSING ELECTRIC CHANGE-OVER VALVE
260
COVERTO 008 545 08 28,008 545 09 28
270
ROUND PIN BUSHING4 MM2
280
LOOM TIE TO MOUNT PLASTIC PIPING
999
LOCK INSTRUMENT PANEL TO COWL
