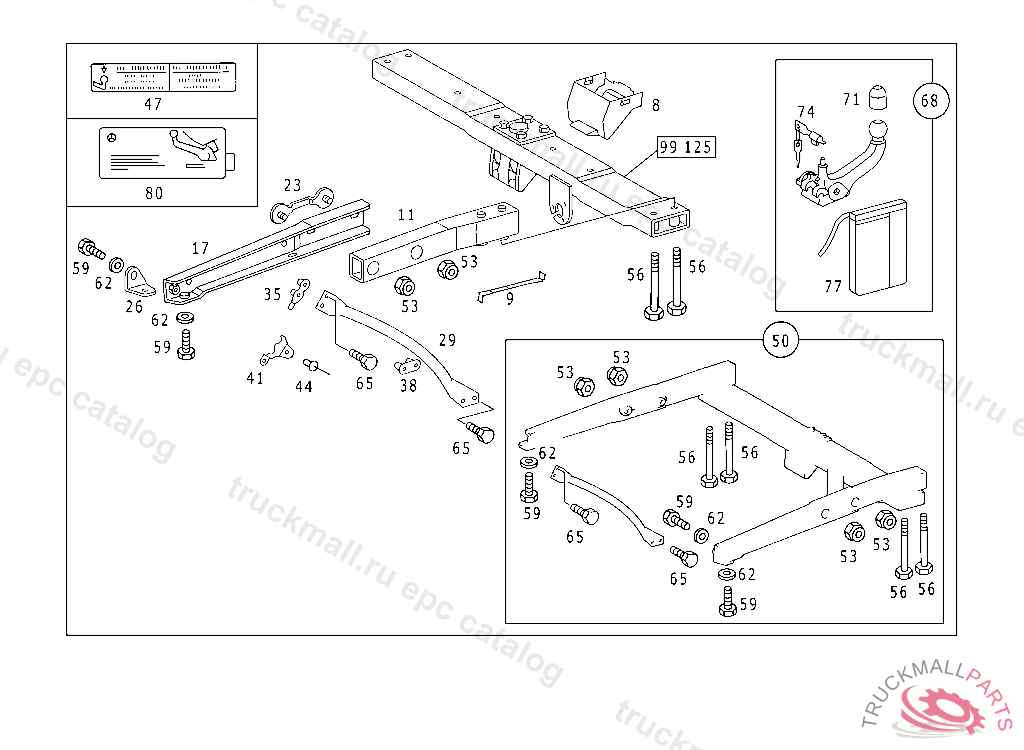

400 E / E 420 - 124.034 - 31 HITCHING MECHANISM
Поз.
Артикул
Описание
8
COVERING
9
LOOM TIE
11
STIFFENING LEFT
11
STIFFENING RIGHT
17
PLATE LEFT
17
PLATE RIGHT
23
SHACKLE
26
PLATE LEFT
29
REINFORCEMENT LEFT
29
REINFORCEMENT RIGHT
35
PLATE TOP
38
PLATE BOTTOM
41
BRACKET BOTTOM
44
RIVET GEARING TO BACKREST FRAME 3 MM
47
GUIDE SIGNFUERSTUETZLAST U. ANHAENGERGEWICHT
50
MOUNTING MATERIAL (PARTS KIT)
53
NUT STRAP TO BRACKET
56
SCREW
59
SCREW , Replaced By: N910106010031
59
SCREW HYDROPNEUMATIC SPRING LEG TO REAR AXLE
62
WASHER STRUT TO CROSS MEMBER
65
SCREWM 8X18
68
BALL HEAD
71
CAP
74
PADLOCK
77
PROTECTIVE WRAPPER
80
GUIDE SIGN FOR DETACHABLE BALL HEAD
