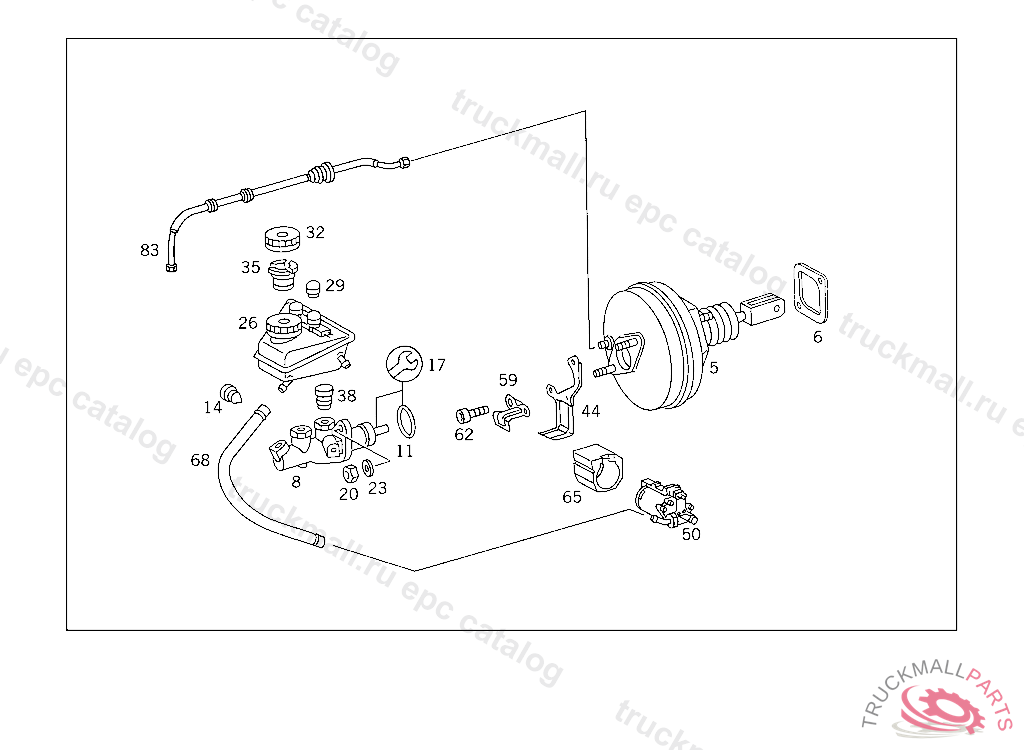

Поз.
Артикул
Описание
5
BRAKE BOOSTER ASSEMBLY
6
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL TO 004 430 00 30/08 30
8
BRAKE MASTER CYLINDER , DELIVER ADDITIONALLY: SCREW PLUG 126 997 02 32
11
SEAL RING
11
SEAL RING
14
SCREW PLUG BRAKE MASTER CYLINDER
17
REPAIR KIT BRAKE MASTER CYLINDER
20
NUT
20
NUT , Replaced By: N304032008006
23
WASHER , Replaced By: N000125008443
26
RESERVOIR BRAKE MASTER CYLINDER
29
PROTECTIVE CAPGIRLING
29
PROTECTIVE CAP , 000 113166 003 057448 007 046963 083 001049 086 000766 093 000621 102,103 092825 105 116297 183 001424 190 001362
32
COVER , Replaced By: A2024300014
32
COVER
35
STRAINER
38
BUSHING
44
BRACKET
50
PUMP
59
BRACKET TOP
62
SCREW DOOR HANDLE TO DOOR
65
RUBBER BUFFER BRAKE MASTER CYLINDER
68
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
83
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY
