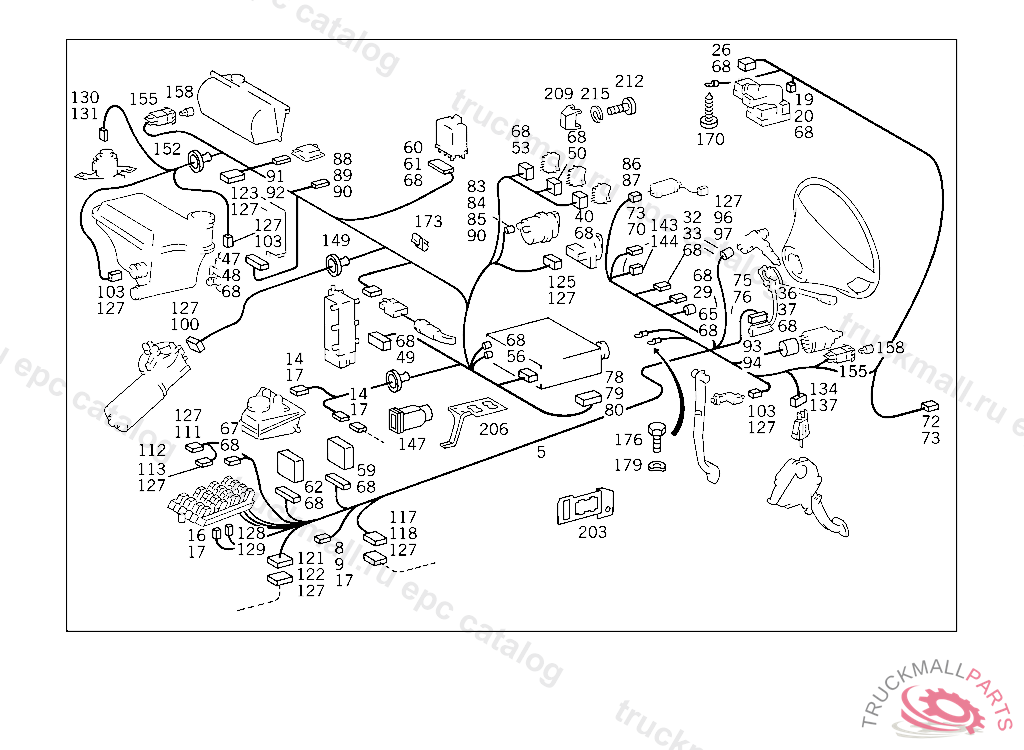

Поз.
Артикул
Описание
5
CABLE HARNESS INBOARD,WITH AIR CONDITIONING AUTOMATICS, FROM MODEL YEAR 93 UP TO END OF MODEL YEAR 93
5
CABLE HARNESS INBOARD,WITH AIR CONDITIONING AUTOMATICS, FROM MODEL YEAR 94
5
CABLE HARNESS INBOARD,WITH AIR CONDITIONING AUTOMATICS, UP TO END OF MODEL YEAR 92
8
PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104
9
COVERTO 011 545 10 28
14
PIN BUSHING HOUSING BIPOLAR
16
PIN BUSHING HOUSING DIODE
17
ROUND PIN BUSHING4 MM2
19
PIN BUSHING HOUSING BIPOLAR
20
COVERTO 010 545 10 28
26
PIN BUSHING HOUSING DOME LIGHTING
29
PIN BUSHING HOUSING CONTROL UNIT
32
PIN BUSHING HOUSING INSTRUMENT CLUSTER,15-POLE
33
COVERTO 010 545 04 28
36
PIN BUSHING HOUSINGTO 014 545 64 28
37
COVER LIGHT SWITCH
40
PIN BUSHING HOUSING CIRCULATING AIR SWITCH, 7-POLE
47
PIN BUSHING HOUSING CONTROL UNIT, 14-POLE
48
COVERTO 019 545 29 28
49
PIN BUSHING HOUSING VALVE STRIP,8-POLE
50
PIN BUSHING HOUSING HAZARD WARNING LIGHT, 8-POLE
53
PIN BUSHING HOUSING SWITCH
56
CASE 4-POLE
59
PIN BUSHING HOUSING RELAY CLUSTER
60
PIN BUSHING HOUSING SENSOR
61
COVERTO 009 545 16 28
62
PIN BUSHING HOUSING LAMP CONTROL
65
PIN BUSHING HOUSING PRE-GLOW TIME RELAY, 6-POLE
67
PIN BUSHING HOUSING OUTBOARD TEMPERATURE INDICATOR
68
ROUND PIN BUSHING2.5 MM2
70
PIN BUSHING HOUSING SOLENOID VALVE,F 051968
72
PIN BUSHING HOUSING TELL-TALE LAMP ASD
73
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
75
PLUG DOOR CABLE HARNESS SEPARATION POINT
76
FLAT PLUG1.5-1.0 MM2
78
PLUG HOUSING FINAL CONTROL ELEMENT, 8-POLE
79
COVERTO 006 545 81 28
80
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
83
PIN BUSHING HOUSING
84
COVERTO 009 545 83 28
85
PIN BUSHING HOUSING BIPOLAR
86
PIN BUSHING HOUSING BIPOLAR
87
CABLE SHOE
88
PLUG HOUSING FINAL CONTROL ELEMENT, 8-POLE
89
COVERTO 006 545 81 28
90
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
91
PIN BUSHING HOUSING BIPOLAR
92
FLAT PIN BUSHING , Replaced By: A0075458426
93
PIN BUSHING HOUSING STEERING COLUMN MOUNTED CABLE HARNESS, 14-POLE
94
COVERTO 009 545 23 28
96
PIN BUSHING HOUSING IGNITION/STARTING SWITCH,7-POLE
97
COVERTO 009 545 73 28,
100
PIN BUSHING HOUSING HEADLAMP,WIPER MOTOR,BLOWER SWITCH
103
PIN BUSHING HOUSING BIPOLAR
111
PIN BUSHING HOUSING FUSE BOX
111
PIN BUSHING HOUSING ADDITIONAL FAN RELAY II
112
PIN BUSHING HOUSING 4-POLE
113
COVER
117
PIN BUSHING HOUSING SEAT HEATER RELAY, 8-POLE
118
COVERTO 006 545 81 28
121
PIN BUSHING HOUSING 12-POLE
122
COVERTO 009 545 26 28
125
PIN BUSHING HOUSING REFRIGERANT COMPRESSOR
127
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
128
PIN BUSHING HOUSING FUSE BOX "N", FOR SWEDEN ONLY
128
PIN BUSHING HOUSING TEST PLUG ASD
128
PIN BUSHING HOUSING DIAGNOSIS BOX AIRBAG
128
PIN BUSHING HOUSING TERMINAL "61"
129
ROUND PIN BUSHING4.0 MM
130
PIN BUSHING HOUSING DIAGNOSIS BOX
131
ROUND PIN BUSHING LIGHT SWITCH
134
PIN BUSHING HOUSING PARKING BRAKE SWITCH
137
CONTACT SPRINGTO 657 540 50 10
143
CABLE SHOE. PIN BUSHING PRESSURE SWITCH
144
INSULATING SLEEVE , 107.042 011568 EXCEPT FOR 010107,010328,010378,011305,011341,011348,011356,011418,011426,011434,011436,011444,011454,011455, 011464,011472,011473,011476,011480,011494,011496,011503,011504,011513,011514,011518,011519,011520, 011526,011528,011531,011533,011535,011537,011538,011539,011541-011567. 107.045 009131 EXCEPT FOR 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128. 107.046 000986 EXCEPT FOR 000518,000621,000841,000897,000899,000921,000933,000936,000938,000940,000942,000944,000956,000964, 000967,000970,000974-000985.
144
INSULATING SLEEVETO 000 546 83 40
147
GROMMET BRAKE LINING WEAR INDICATOR,LEFT
147
GROMMET FRONT BLINKER LAMP
149
GROMMET BRANCH-OFF TO WINDSHIELD WIPER
152
GROMMET FIRE WALL,RIGHT
155
SOCKET
155
SOCKET
158
BULB , Replaced By: N000000001061
158
BULB LIGHTING OF LEFT AND RIGHT OPERATING UNITS AND BLOWER SWITCH
170
SHEET METAL SCREW BRACKET TO CAB
173
CLIP WIRE CABLE TO AIR CLEANER
176
SCREW PUMP TO BRACKET
179
SPRING WASHER LICENSE PLATE TO BRACKET
203
BRACKET TIMER IN HOUSING BELOW ASHTRAY
206
BRACKET AIR CONDITIONER CASE,RIGHT
209
SOCKET-TERMINAL STRIP BIPOLE, TERMINAL 58D
212
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
212
SCREW ELECTRIC CABLE TO FUSE BOX
215
LOCK WASHER T-FITTING TO BRACKET
