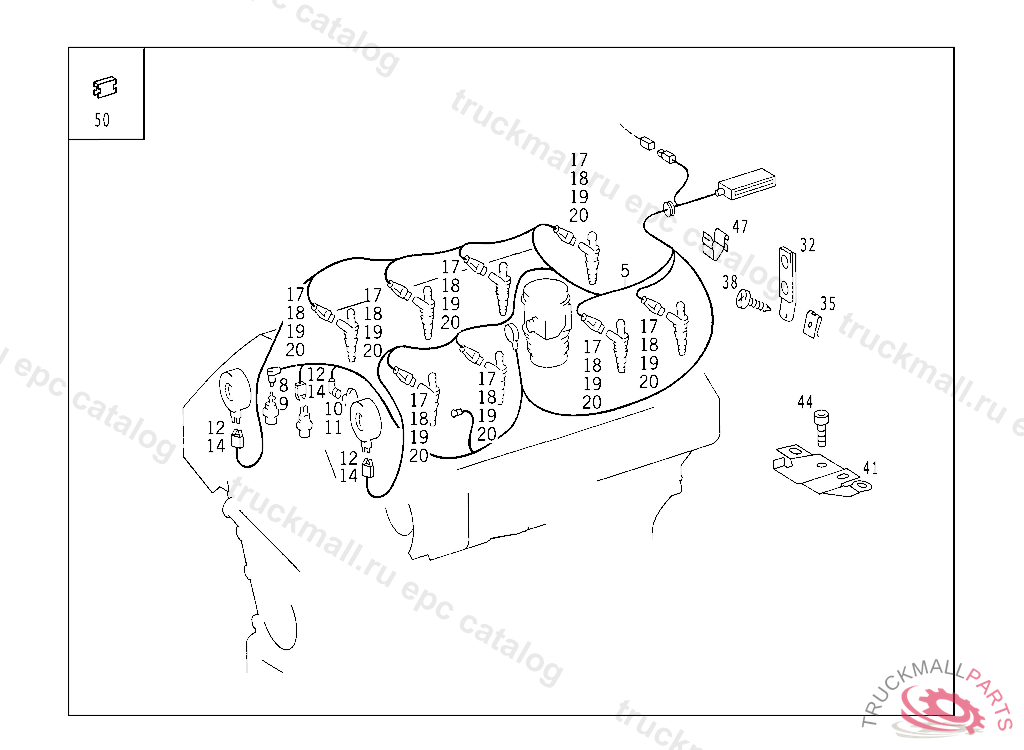

Поз.
Артикул
Описание
5
CABLE HARNESS ENGINE CABLE HARNESS,B 840526
5
CABLE HARNESS ENGINE CABLE HARNESS,B 840527
8
PLUG TEMPERATURE SENSOR, TO BE ADAPTED DURING ASSEMBLY
9
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
10
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
11
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
12
PIN BUSHING HOUSING BIPOLAR
14
ROUND PIN BUSHING4 MM2
17
PLUG INJECTION VALVE
18
WIRE SEAL
19
BOOT SIDE MARKER LAMP
20
CONTACT SPRINGTO 657 540 50 10
32
CABLE GUIDE AT PARTITION PANEL,RIGHT
35
LOCK INSTRUMENT PANEL TO PANELLING
38
TAPPING SCREW PROTECTIVE GRILLE 4.8X16 MM
38
COMBINATION BOLT. TAPPING SCREW , Replaced By: N000000000548
41
BRACKET AT CYLINDER HEAD COVER, TO BE ADAPTED DURING ASSEMBLY
44
SCREW BEARING BRACKET TO TRANSMISSION
44
SCREW
47
LOCK T.D.C. SENDER UNIT CABLE TO PARTITION PANEL,RIGHT
50
CLIP
