Главная
›
Mercedes
›
CAR
›
200 CE ITALIEN FROM 09/89
›
124.041
›
61 SUBSTRUCTURE
›
015 FRONT FLOOR
Mercedes A1246110222 - ЛОНЖЕРОН

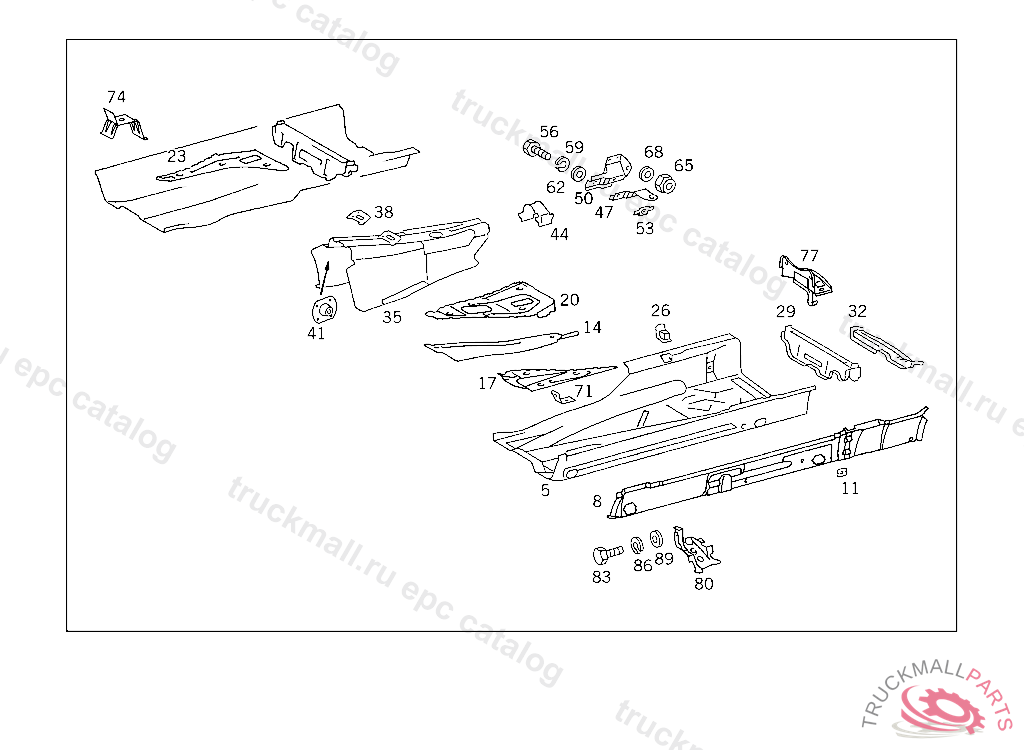

200 CE ITALIEN FROM 09/89 124.041
61 SUBSTRUCTURE - 015 FRONT FLOOR
Поз.
Артикул
Описание
5
A1246101560
FLOOR LEFT
5
A1246101660
FLOOR RIGHT
11
A1269840025
THREADED CHUCK SAFETY BELT MOUNTING
14
A1246110222
SIDE MEMBER FRONT RIGHT
14
A1246110122
SIDE MEMBER FRONT LEFT
26
A1246160031
CONSOLE CABLE PASSAGE
29
A1246100120
CROSS MEMBER BELOW FRONT SEAT,FRONT LEFT
29
A1246100220
CROSS MEMBER BELOW FRONT SEAT,FRONT RIGHT
32
A1246100520
CROSS MEMBER BELOW FRONT SEAT,REAR LEFT
32
A1246100620
CROSS MEMBER BELOW FRONT SEAT,REAR RIGHT
35
A1246100671
TUNNEL
38
A1246102836
BRACKET (SENSOR)
41
A1249840125
THREADED CHUCK PARKING BRAKE TO TUNNEL
44
A1246100052
TAKE-UP DEVICE PROPELLER SHAFT BEARING IN TUNNEL CENTER
71
A1166160020
MOUNTING ACCELERATOR PEDAL, AT FRONT FLOOR
77
A1246102325
REINFORCEMENT CROSSMEMBER DRIVER'S SEAT WITH CAT BRACKET
80
A1246101231
CONSOLE RIGHT, A 061921
80
A1246101131
CONSOLE LEFT, A 061921
83
N900161008109
SCREW BRACING TO TUNNEL
86
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
89
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
