Поз.
Артикул
Описание
5

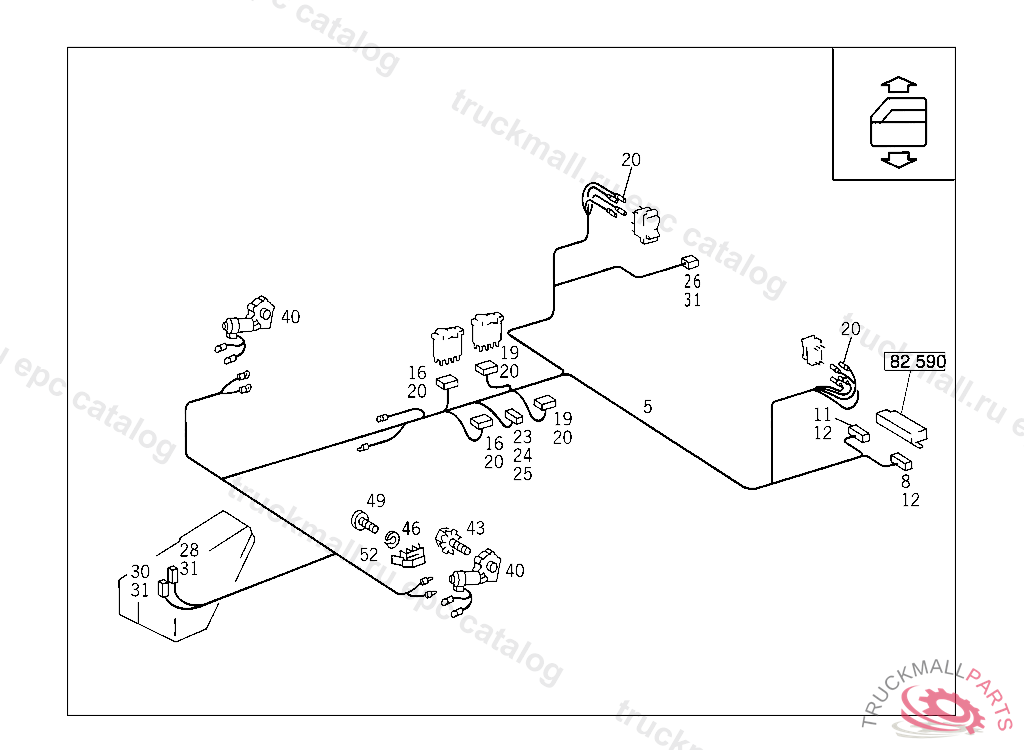

CABLE HARNESS FROM SWITCH CLUSTER TO FRONT DOOR WINDOW REGULATOR MOTORS
5
CABLE HARNESS FROM SWITCH CLUSTER TO FRONT-DOOR/ REAR-SIDE-PART WINDOW-REGULATOR MOTORS
8
PLUG CONTROL UNIT OF COMFORT CONTROL
11
PLUG CONTROL UNIT OF COMFORT CONTROL
12
ROUND PIN BUSHING4.0 MM
12
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
16
PIN BUSHING HOUSING ELECTRIC WINDOW REGULATOR SWITCH VORN
19
PIN BUSHING HOUSING ELECTRIC WINDOW REGULATOR SWITCH HINTEN
20
ROUND PIN BUSHING2.5 MM2
23
PIN BUSHING HOUSING SAFETY SWITCH
25
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
26
PIN BUSHING HOUSING BIPOLAR
28
PIN BUSHING HOUSING FUSE BOX H
30
PIN BUSHING HOUSING FUSE BOX "G"
31
ROUND PIN BUSHING4 MM2
40
ELECTRIC MOTOR ELECTRIC WINDOW REGULATOR,RIGHT
40
ELECTRIC MOTOR ELECTRIC WINDOW REGULATOR,LEFT
43
SCREW ELECTRIC WINDOW REGULATOR MOTOR
46
SOCKET-TERMINAL STRIP BIPOLAR
49
SCREW ELECTRIC CABLE TO FUSE BOX
52
LOCK WASHER T-FITTING TO BRACKET
