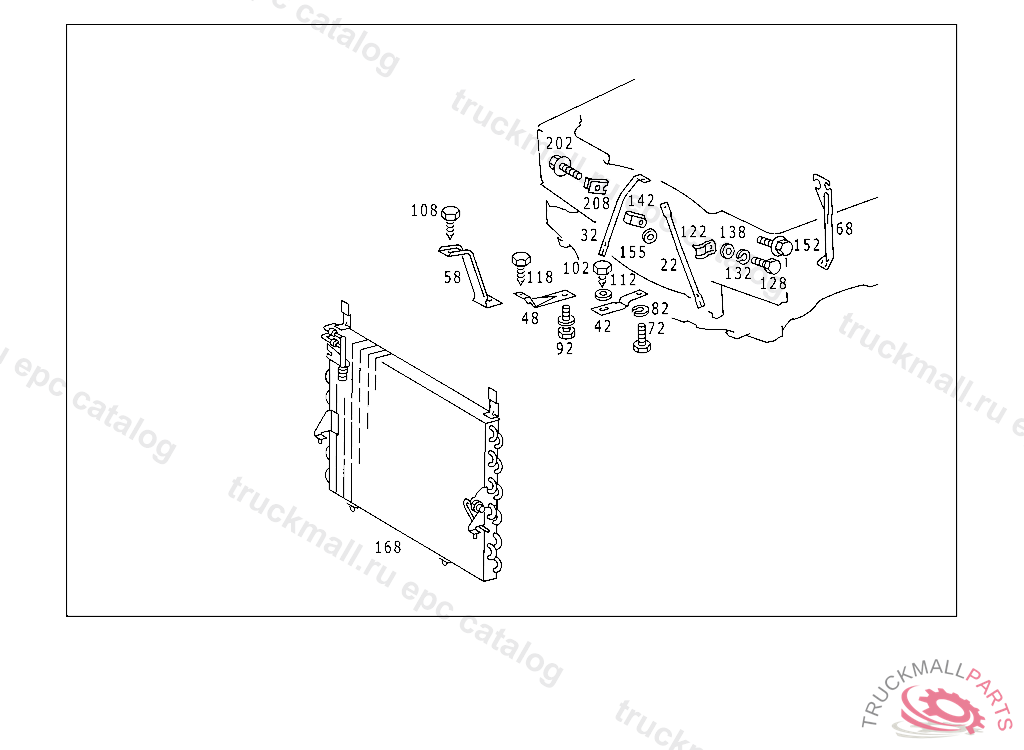

Поз.
Артикул
Описание
22
STRUT BETWEEN STIFFENING AND CROSS MEMBER, LEFT
32
STRUT BETWEEN STIFFENING AND CROSS MEMBER
42
BRACKET , UP TO CHASSIS: 116.020 070003 116.024,025 066865 116.032,033 053035 116.036 001168
48
BRACKET AUXILIARY FAN, FROM CHASSIS:116.020 070004 116.024,025 066866 116.032,033 053036 116.036 001169
58
BRACKET AUXILIARY FAN
68
BRACKET EVAPORATOR-TO-COMPRESSOR LINE TO WHEEL ARCH PANEL
72
SCREW COVER PLATE TO BRACKET
82
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
92
COMBINATION BOLT
102
SHEET METAL SCREW BRACKET TO WINDOW SILL
108
SHEET METAL SCREW
112
WASHER COMPRESSED AIR LINE TO BRACKET
118
SHEET METAL SCREW BRACKET TO WINDOW SILL
122
CLAMP
128
SCREW COVER PLATE TO BRACKET
132
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
138
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
142
CLAMP
142
CLAMP , FROM CHASSIS:107.024 018638 107.044 041612
152
COMBINATION BOLT
155
WASHER BRACKET TO SUPPORT
168
CONDENSER
168
CONDENSER , 023 016993 033 012222 123 009145 130 014497 033 098845 123 303955 130 266592 223 083075
202
COMBINATION BOLT
208
LOCK INSTRUMENT PANEL TO PANELLING
