Главная
›
Mercedes
›
CAR
›
300 CE FROM 09/89
›
124.050
›
46 STEERING
›
075 STEERG.COLUMN JACKET TUBE & STEERG. SHAFT
Mercedes N000912008098 - SCHRAUBE DIN 912-M 8
300 CE FROM 09/89 124.050

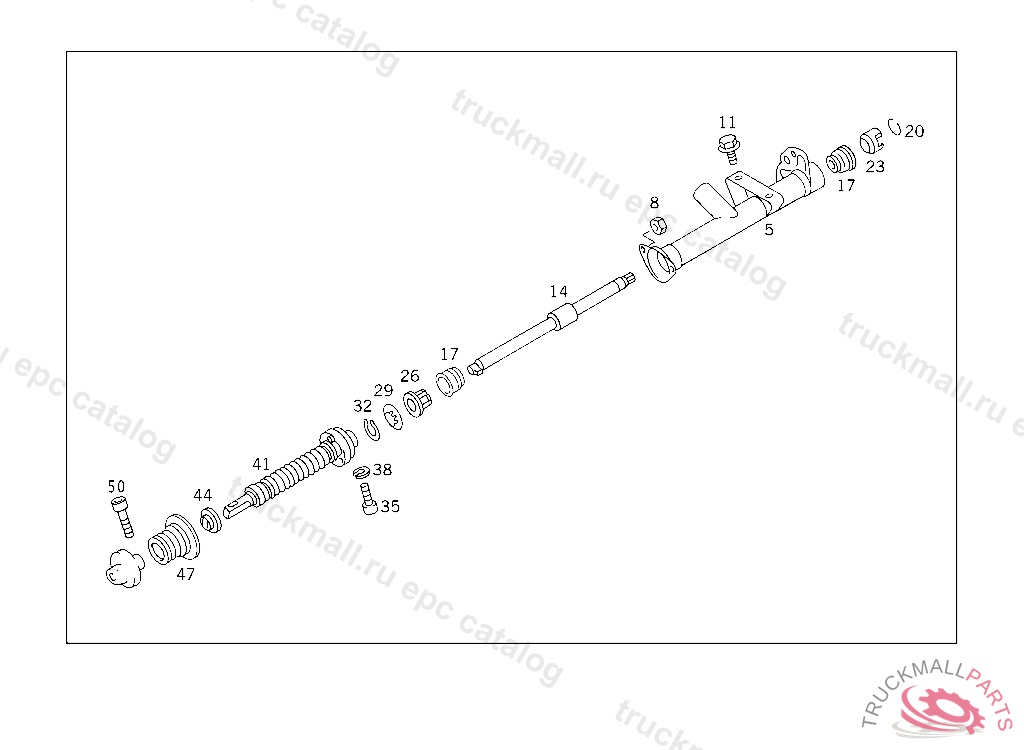

46 STEERING - 075 STEERG.COLUMN JACKET TUBE & STEERG. SHAFT
Поз.
Артикул
Описание
5
A1244602216
STEER. COLUMN JACKET TUBE
8
N000934006013
NUT CYLINDER TO BRACKET TO0002902112
8
N304032006008
NUT BATTERY MOUNTING
11
A2019900204
SCREW STEERING COLUMN JACKET TUBE TO BODY
14
A1244601509
STEERING SHAFT TOP
14
A1244600609
STEERING SHAFT , Replaced By: A1244601509
17
A1269810025
BALL BEARING
20
N912009025100
SNAP RING
23
A1264620051
RING
26
A1234620417
CONICAL SLEEVE , 023 108180 033 045305 123 087739 130 110887
29
A1239930226
DISC SPRING , 023 108180 033 045305 123 087739 130 110887
32
N900055025401
LOCK RING
35
N000912008098
SCREW , Replaced By: N000912008204
38
N912006008000
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
41
A1244600709
STEERING SHAFT BOTTOM
44
A1234620460
SEAL RING
47
A1244621396
BOOT
47
A1244620396
BOOT , Replaced By: A1244621396
50
A1239900720
SCREW , Replaced By: A2029902101
50
A2029902101
SCREW
