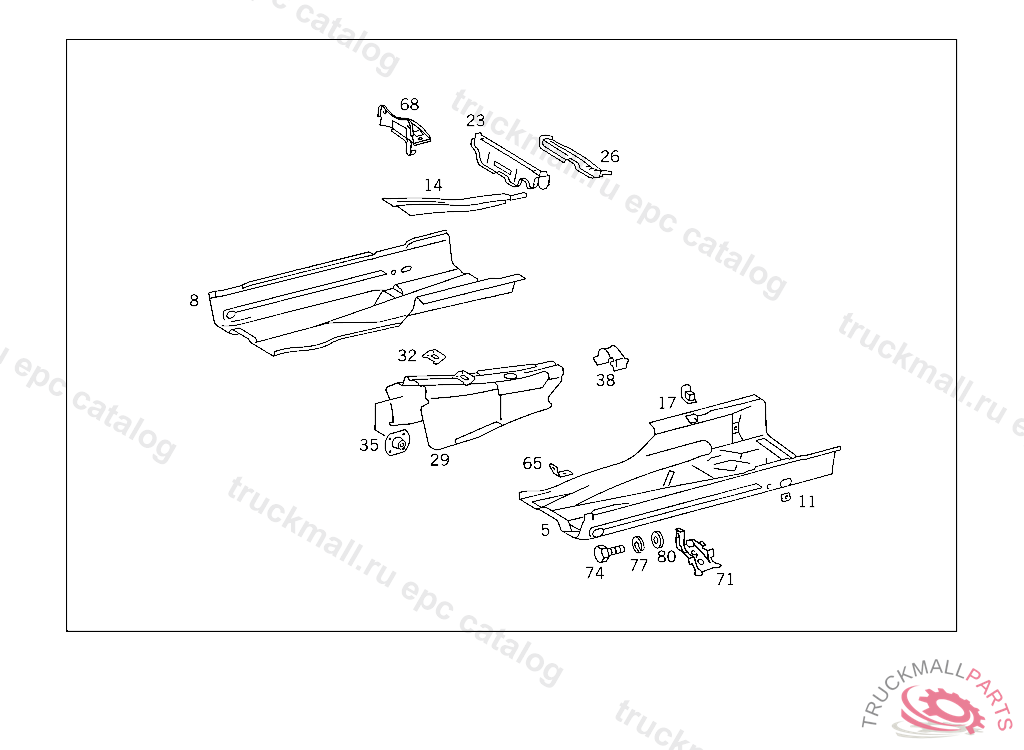

Поз.
Артикул
Описание
5
FLOOR LEFT
5
FLOOR , Replaced By: A1246101560
8
FLOOR , Replaced By: A1246101660, +001A1249104027
8
FLOOR RIGHT
11
THREADED CHUCK SAFETY BELT MOUNTING
14
SIDE MEMBER FRONT RIGHT
14
SIDE MEMBER FRONT LEFT
17
CONSOLE CABLE PASSAGE
23
CROSS MEMBER BELOW FRONT SEAT,FRONT RIGHT
23
CROSS MEMBER BELOW FRONT SEAT,FRONT LEFT
26
CROSS MEMBER BELOW FRONT SEAT,REAR LEFT
26
CROSS MEMBER BELOW FRONT SEAT,REAR RIGHT
29
TUNNEL
29
TUNNEL , Replaced By: A1246100671
32
BRACKET , Replaced By: A1246102836
32
BRACKET (SENSOR)
35
THREADED CHUCK PARKING BRAKE TO TUNNEL
38
TAKE-UP DEVICE PROPELLER SHAFT BEARING IN TUNNEL CENTER
65
MOUNTING ACCELERATOR PEDAL, AT FRONT FLOOR
68
REINFORCEMENT CROSSMEMBER DRIVER'S SEAT WITH CAT BRACKET
68
REINFORCEMENT , Replaced By: A1246102325
68
REINFORCEMENT , A 061921, Replaced By: A1246102825
71
CONSOLE RIGHT, A 061921
71
CONSOLE LEFT, A 061921
74
SCREW BRACING TO TUNNEL
77
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
80
WASHER , Replaced By: N000125008443
