Mercedes
›
CAR
›
300 CE USA FROM 09/89
›
124.051
›

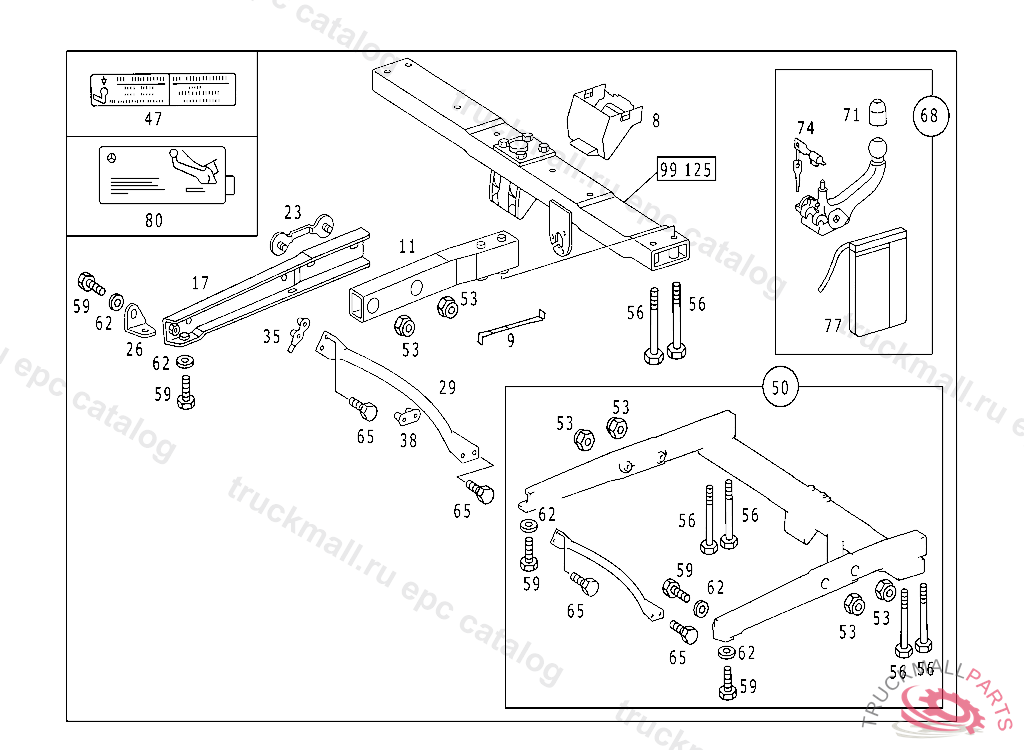

31 HITCHING MECHANISM
›
015 TRAILER COUPLING
Mercedes A1409900014 - Болт
300 CE USA FROM 09/89 124.051
31 HITCHING MECHANISM - 015 TRAILER COUPLING
Поз.
Артикул
Описание
8
A1243150383
COVERING
9
A1409970890
LOOM TIE
11
A1243100391
STIFFENING RIGHT
11
A1243100291
STIFFENING LEFT
17
A1243100257
PLATE RIGHT
17
A1243100057
PLATE LEFT
23
A2103100360
SHACKLE
26
A1243150021
PLATE LEFT
29
A1243150494
REINFORCEMENT LEFT
29
A1243150594
REINFORCEMENT RIGHT
35
A1243150321
PLATE TOP
38
A1243150421
PLATE BOTTOM
47
A1245843917
GUIDE SIGNFUERSTUETZLAST U. ANHAENGERGEWICHT
50
A0003150771
MOUNTING MATERIAL (PARTS KIT)
53
N910113010000
NUT STRAP TO BRACKET
56
A1409900014
SCREW
59
N914125010308
SCREW , Replaced By: N910106010031
59
N910106010031
SCREW HYDROPNEUMATIC SPRING LEG TO REAR AXLE
62
N007349010007
WASHER STRUT TO CROSS MEMBER
65
N914141008301
SCREWM 8X18
68
A1243100556
BALL HEAD
71
A0003150629
CAP
74
A2015830095
PADLOCK
77
A1245850103
PROTECTIVE WRAPPER
80
A1245841417
GUIDE SIGN FOR DETACHABLE BALL HEAD
