300 CE USA FROM 09/89
124.051
32 SPRINGS,SUSPENSION AND HYDRAULICS
001 HYDRAULIC SYSTEM USED WITH AUTOMATIC LOCKING DIFFERENTIAL (ASD) (FOR TYPE R129,W IL.4

Mercedes A0115451628 - Штифт

300 CE USA FROM 09/89 124.051

32 SPRINGS,SUSPENSION AND HYDRAULICS - 001 HYDRAULIC SYSTEM USED WITH AUTOMATIC LOCKING DIFFERENTIAL (ASD) (FOR TYPE R129,W IL.4

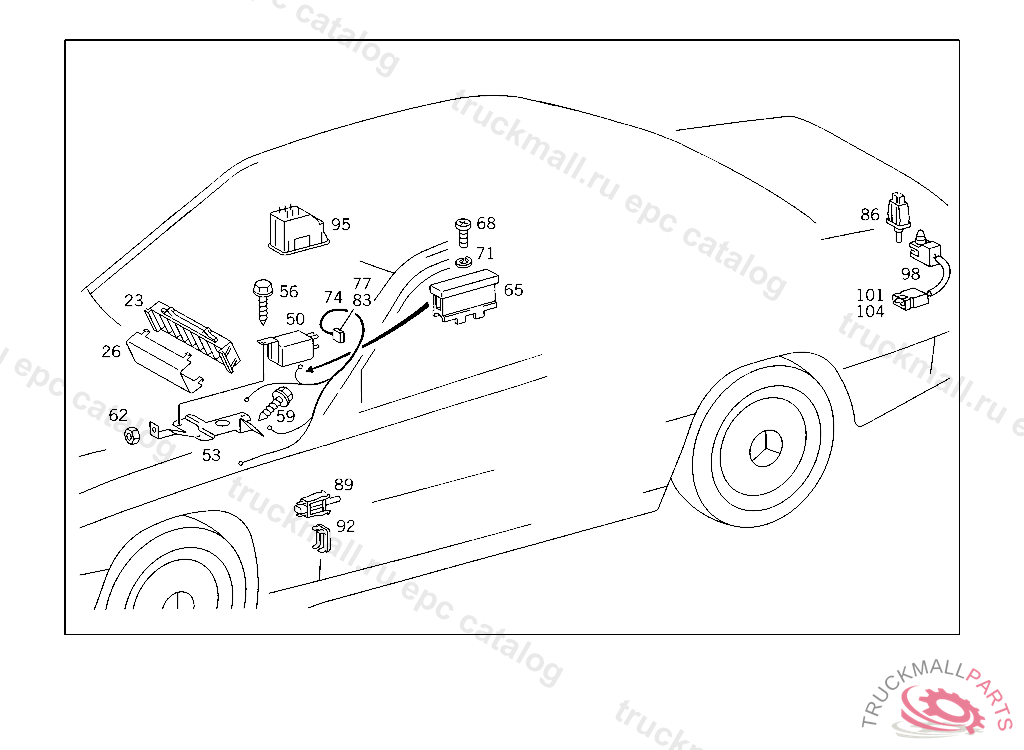

Поз.
Артикул
Описание
23
A1248210071
LEDGE SWITCH TO INSTRUMENT PANEL
26
A1248210038
COVER MULTIWAY CONNECTOR
50
A0045450832
CONTROL UNIT INSTRUMENT/SWITCH LIGHTING
53
A1245453640
BRACKET CONTROL UNIT
53
A1245455640
BRACKET CONTROL UNIT
56
N914031004301
COMBINATION BOLT
59
N914128004300
SHEET METAL SCREW SEAT HEATER CONTROL TO CROSS MEMBER AND TO FRONT SEAT
59
N914128004303
SHEET METAL SCREW ALARM UNIT TO STRUT
62
N000934006007
NUT BALL PIVOT TO LEVER
65
A0005400869
SOCKET-TERMINAL STRIP
68
N007985004107
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
68
N007985004125
SCREW , Replaced By: N007985004107
71
N912004004102
LOCK WASHER T-FITTING TO BRACKET
74
A1245406308
CABLE HARNESS INSTRUMENT/SWITCH LIGHTING
74
A1245407609
CABLE HARNESS INSTRUMENT/SWITCH LIGHTING
77
A0145458528
PIN BUSHING HOUSING 4-POLE, BLOWER MOTOR
77
A0155454928
PLUG TRIPLE
83
A0035452626
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
86
A2018202110
SWITCH DOOR CONTACT
89
A0015458714
SWITCH HAND BRAKE CONTROL
92
A0008210038
COVER TO PLUG THE DOOR CONTACT HOLES
95
A1248206810
SWITCH ELECTRIC SLIDING ROOF
98
A1248209610
SWITCH REAR LID LOCK COMFORT CONTROL
101
A0125458428
PLUG HOUSING
104
A0115451628
PLUG PIN
