300 CE USA FROM 09/89
124.051
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

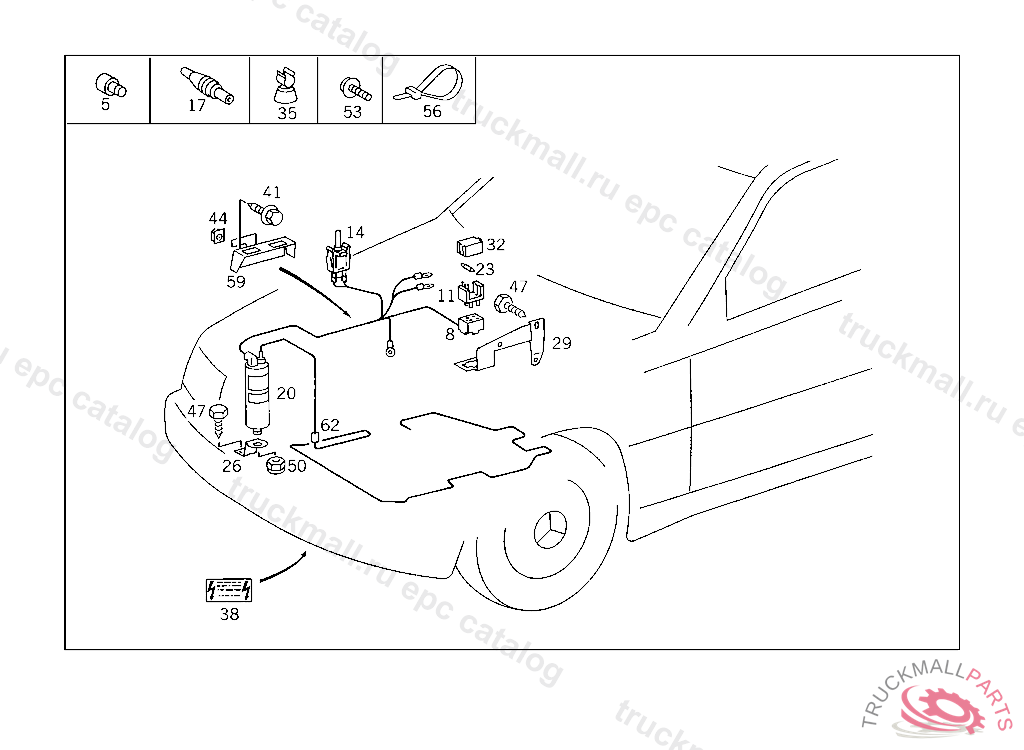

001 ADDITIONAL HEATER,RANGE OF ELECTRICAL PARTS (FOR TYPES 129,140 SEE STANDARD VERS IL.2

Mercedes N072581008101 - Плавкий предохранитель

300 CE USA FROM 09/89 124.051

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 ADDITIONAL HEATER,RANGE OF ELECTRICAL PARTS (FOR TYPES 129,140 SEE STANDARD VERS IL.2

Поз.
Артикул
Описание
5
A0001591438
CABLE SLEEVE
8
A2015409734
CABLE HARNESS
8
A1245405935
ELECTRIC CABLE SUBSEQUENT INSTALLATION
11
A2015400350
FUSE BOX
14
A1245450514
SWITCH
17
A0185453928
PLUG
20
A0115459232
CONTROL UNIT
20
A0075453432
CONTROL UNIT , Replaced By: A0115459232
23
N072581008101
FUSEA8
23
A0005458234
FUSE , Replaced By: N072581008101
26
A2015457840
BRACKET CONTROL UNIT
29
A2015458040
BRACKET ADDITIONAL FUSE BOX
32
A1235450446
COVERING FUSE BOX
35
A2015462143
BRACKET
38
A2015840247
WARNING STRIP
41
A2019900536
SCREW. SHEET METAL SCREW
44
A0019949845
LOCK. CLIP-TYPE NUT
47
N914128004303
SHEET METAL SCREW ALARM UNIT TO STRUT
47
N007976004217
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
47
N007976006203
SHEET METAL SCREW VALVE TO WINDOW SILL
50
N913002008004
NUT SWITCH TO FLOOR PLATE
53
N914129005010
SCREW
56
A0019974290
LOOM TIE , Replaced By: A0019974390
56
A0019974390
LOOM TIE TO MOUNT PLASTIC PIPING
59
A1248220214
BRACKET
62
A1245400538
ELECTRIC CABLE ,F 131809
62
A1245400038
ELECTRIC CABLE ,F 131808
