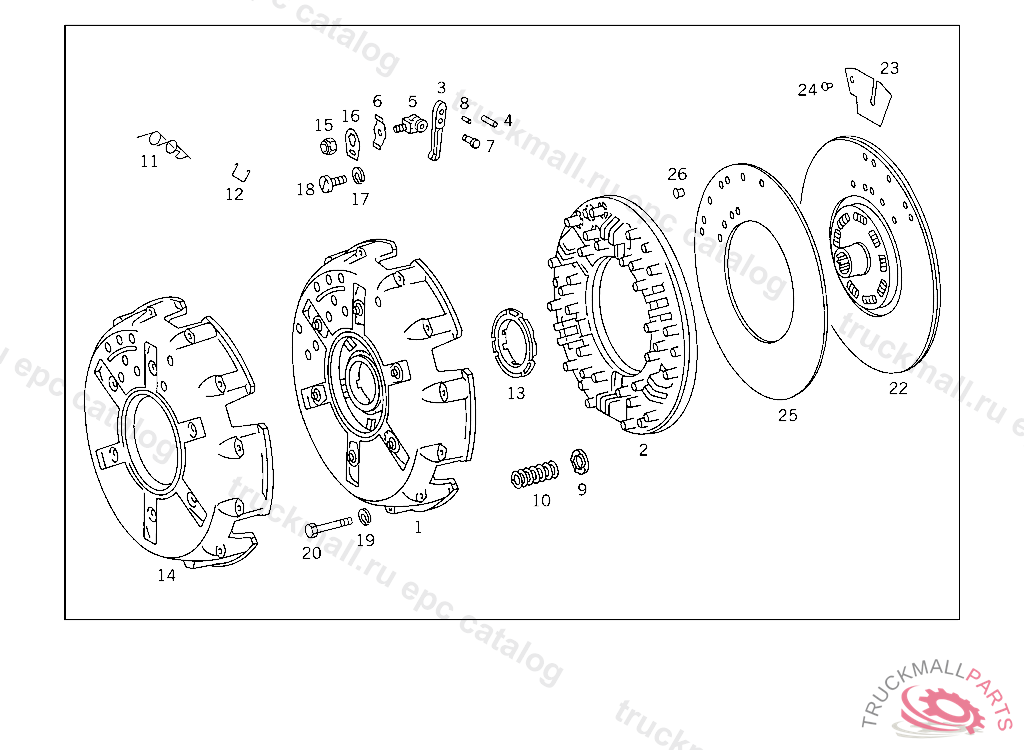

Поз.
Артикул
Описание
1
CLUTCH PRESSURE PLATE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 282327, Replaced By: A0032502204
1
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
2
PRESSURE PLATE
3
RELEASE LEVER CLUTCH ACTUATION
4
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
5
BRACKET RELEASE LEVER
6
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
6
LEAF SPRING THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
7
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
8
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
9
INSULATING WASHER
10
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
11
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
11
SPRING , Replaced By: A0002523227
11
SPRING SUSPENDED BELOW LEAF SPRING
12
CLAMP RELEASE FLANGE TO RELEASE LEVER
13
FLANGE
14
HOUSING
15
NUT FOR BRACKETS
16
LOCK FOR BRACKETS
17
LOCK WASHER BRACKET TO STEERING COLUMN END
17
LOCK WASHER , ON SPECIAL REQUEST
18
SCREW
19
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
20
SCREW , Replaced By: N304017010055
20
SCREW , Replaced By: N304017010050
22
CLUTCH DISC
22
CLUTCH DISC
23
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002523819, +002A0002523975
24
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
24
RIVET , Replaced By: A0002522075
25
CLUTCH LINING , Replaced By: A0012522910
25
CLUTCH LINING
26
RIVET LEAF SPRING TO CLUTCH DISC
999
FLANGETO 001 250 07 04,003 250 20 04
999
LOCK , Replaced By: A0002521073
999
RIVET , Replaced By: A0002521275
999
SLEEVE CLUTCH PRESSURE PLATE
999
SPINDLE , Replaced By: A0002522816, +001N006799007003
999
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
999
CLAMP , Replaced By: A0002523227
999
RIVET LINING WITH INTERMEDIATE SPRING
999
NUT , Replaced By: A0002523072
999
SPINDLE , Replaced By: A0002520616
999
SCREW RELEASE LEVER,BRACKET
999
RELEASE LEVER , Replaced By: A0002524613
999
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
999
CLUTCH PRESSURE PLATE , Replaced By: A0032502104
999
BALL PIVOT ,FB001827
999
LEVER CLUTCH OPERATION, ON L FROM IDENT NO. 008464 ALSO INSTALLED ON 008448-008455
999
WASHER LEVER TO RELEASE SHAFT, WITH L.H.D.FROM IDENT NO. 602167,WITH R.H.D.FROM IDENT NO. 601938
999
PROTECTIVE PLATE REAR
999
SPRING RELEASE SPRING
999
COTTER PIN
999
SCREW BEARING TO CAB
999
SCREW , Replaced By: N304017006020
999
SCREW , Replaced By: N304017006034
999
NUT BALL PIVOT TO LEVER
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREWM 18X18X33X55
999
FITTED WASHER AS REQUIRED 1.5 MM
999
FITTED WASHER AS REQUIRED 2.5 MM
999
SHIM. FITTED WASHER HYDRAULIC LINE MOUNTING PARTS
999
LOCK PLATE RELEASE LEVER TO SHAFT
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER BELL HOUSING TO TRANSMISSION
