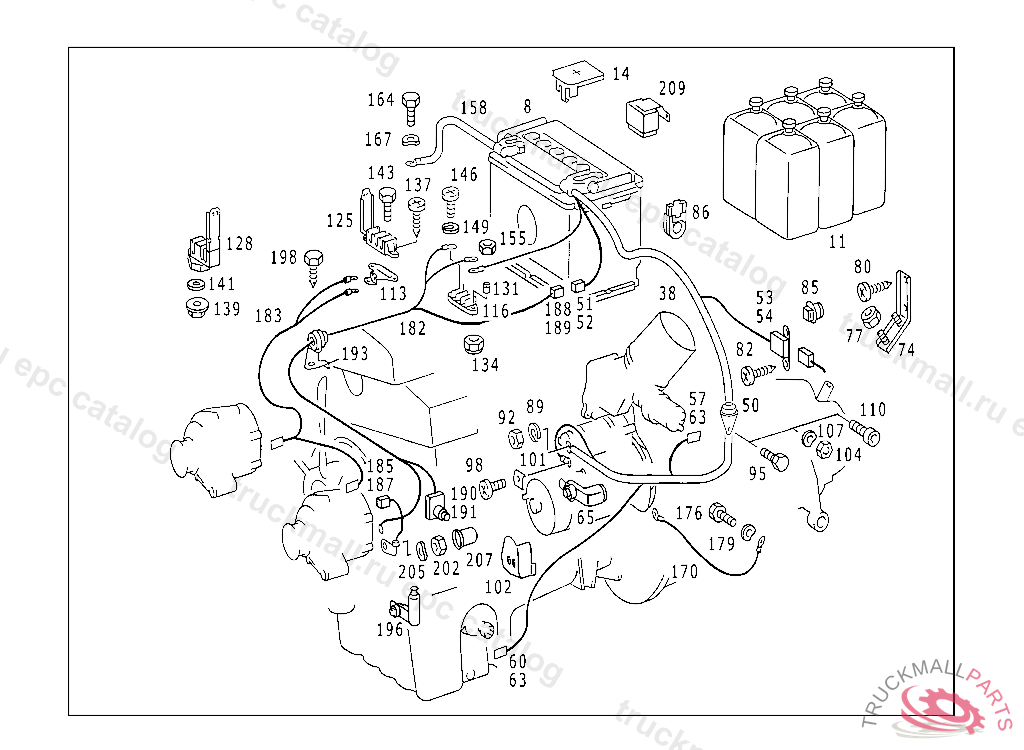

Поз.
Артикул
Описание
8
BATTERY FILLED 12V/62 AH
8
BATTERY PARTS KIT
8
BATTERY PARTS KIT,5 338284
8
BATTERY100 AH
11
BATTERY ACID BOTTLE SET ,5 338284
11
BATTERY ACID BOTTLE SET
14
BOOT POS. POLE
38
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR
38
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR
53
PLUG HOUSING INBOARD CABLE HARNESS PLUG-CONNECTION
54
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
57
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
60
GROMMETTO 014 545 07 28
60
PLUG. PIN BUSHING HOUSING NTC FEELER
63
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
65
GROMMET CABLE TO STARTING MOTOR
74
BRACKET STARTING MOTOR CABLE HARNESS PLUGCONNECTION
77
NUT BRACKET TO ANTENNA, ONLY USED WITH REAR END MOUNTINGA 001878
80
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
85
FASTENER BUTTON ELECTRIC CABLE TO FIRE WALL
86
GROMMET STARTING CABLE THRU UNIT PARTITION PANEL
89
SPRING WASHER LICENSE PLATE TO BRACKET
89
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
89
SPRING WASHER , Replaced By: N000137008212
92
NUT
92
NUT BALL PIVOT TO LEVER
95
SCREW PUMP TO BRACKET
102
COVERING CABLE TO STARTING MOTOR,TERMINAL 50
113
BRACKET CABLE CONNECTOR TO DAMPER STRUT
116
SOCKET-TERMINAL STRIP SPRING DOME
125
SOCKET-TERMINAL STRIP 3-POLE
128
SOCKET-TERMINAL STRIP RIGHT FRONT WHEEL ARCH,F 005739
131
LOCK FRONT PANEL,LATERAL RIGHT,9/87
137
SHEET METAL SCREW MODULE TO HOUSING
137
SHEET METAL SCREW , Replaced By: N000000000453
139
NUT
141
WASHER BRACKET TO CROSS MEMBER
143
SCREW COVER PLATE TO COVER PLATE M 6 X 10
146
SCREW , Replaced By: N007985004107
146
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
149
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
149
LOCK WASHER T-FITTING TO BRACKET
155
NUT BALL PIVOT TO LEVER
158
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND 220 MM
158
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND
164
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
167
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
167
SPRING WASHER , Replaced By: N000137008212
170
NEG. CABLE , Replaced By: A9015400741
170
GROUND STRAP FROM ENGINE TO FRAME
176
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
179
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
179
SPRING WASHER , Replaced By: N000137008212
182
CABLE HARNESS FROM ALTERNATOR TO CABLE CONNECTOR 120 A
182
CABLE HARNESS FROM ALTERNATOR TO CABLE CONNECTOR
193
BRACKET ALTERNATOR CABLE HARNESS
198
SHEET METAL SCREW BRACKET TO CAB FLOOR
202
NUT
202
NUT TACHOGRAPH TO BRACKET
205
LOCK WASHER T-FITTING TO BRACKET
205
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
207
PROTECTION CAP , Replaced By: A0008310929
207
CAP SCREW HEAD COVERING
209
RELAY CUT-OFF RELAY BATTERY
