Главная
›
Mercedes
›
CAR
›
320 CE / E 320 / E36 AMG FROM 09/89
›
124.052
›
50 RADIATOR
›
330 INDEPENDENT HEATING IL. 3
Mercedes A0069900201 - Болт

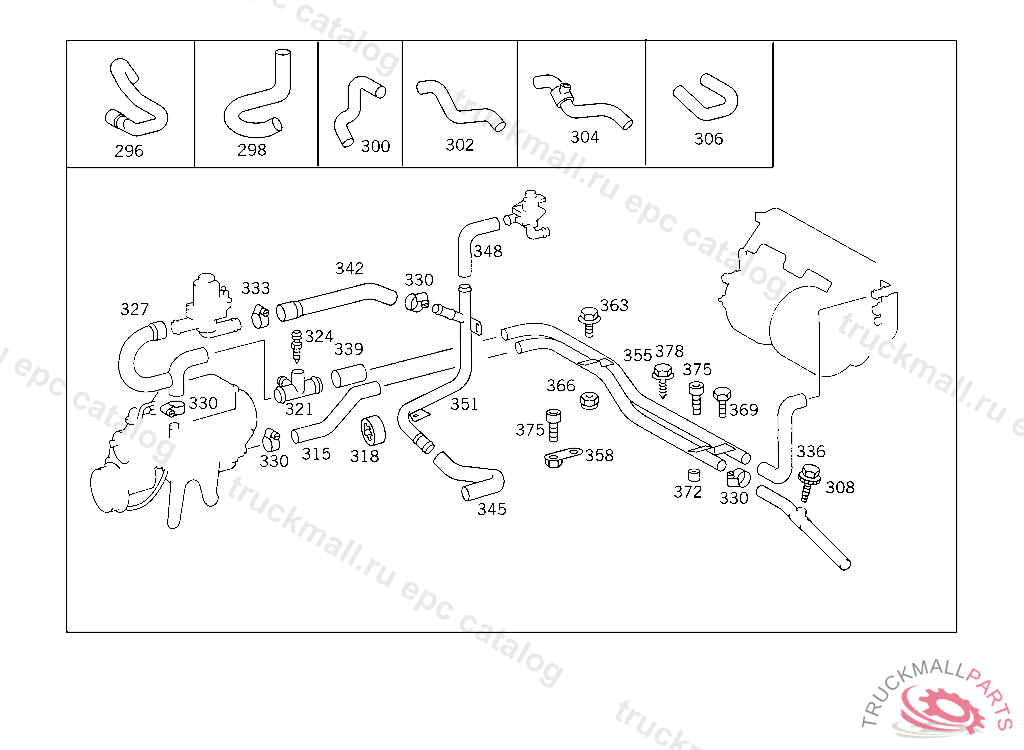

320 CE / E 320 / E36 AMG FROM 09/89 124.052
50 RADIATOR - 330 INDEPENDENT HEATING IL. 3
Поз.
Артикул
Описание
302
A1245069635
HOSE FROM ENGINE FEED TO PIPING
304
A1245069535
HOSE FROM ENGINE FEED TO PIPING
306
A1245066935
HOSE FROM ENGINE FEED TO PIPING
308
A0069900201
SCREW ,A 004654
315
A1245060438
HOSE FROM DE-AERATION VALVE TO PIPE LINE,B 926099
315
A1245060538
HOSE FROM HEATER UNIT TO PIPE LINE,B 926099
318
A1164660882
RUBBER RING
330
A0059970190
HOSE CLAMP LINE MOUNTING
330
N916026016001
CLAMP , Replaced By: A0059970190
333
N916026020001
CLAMP , Replaced By: N000000000667
333
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
336
A1245060938
HOSE FROM PIPE LINE TO HEAT EXCHANGER
355
A1245002672
LINE AT ENGINE
355
A1245002772
LINE AT FRAME
358
A1245004731
BRACKET
358
A1245060946
BRACKET , Replaced By: A1245004731
375
N007984006029
SCREW
378
N914128006200
SHEET METAL SCREW
