Поз.
Артикул
Описание
5

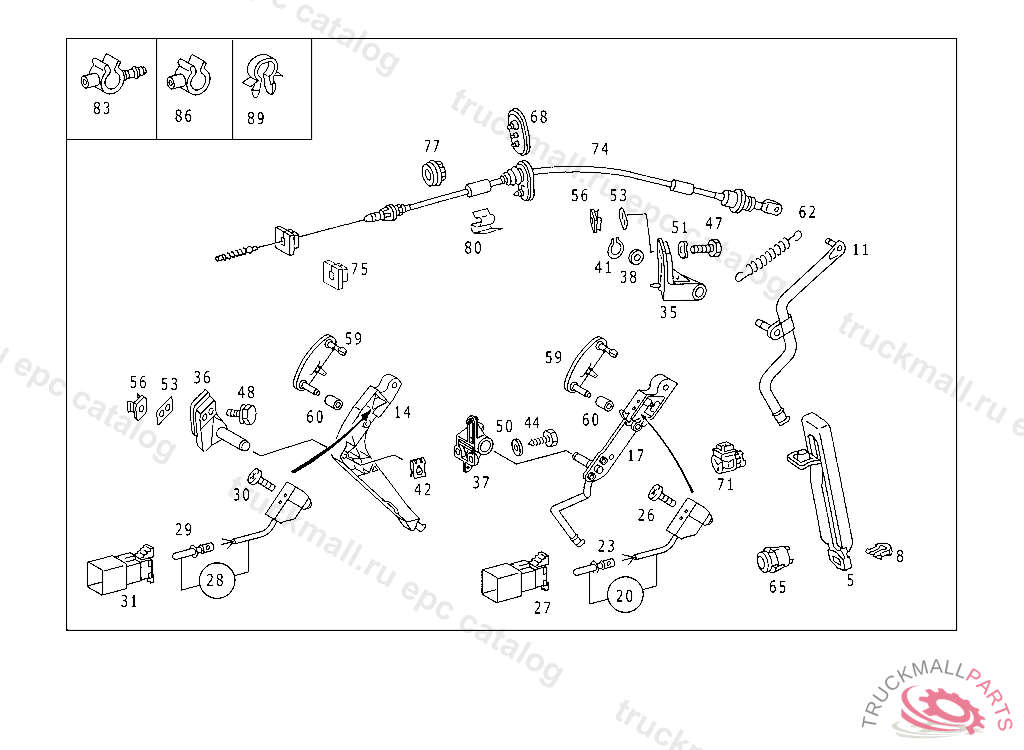

ACCELERATOR PEDAL
8
CLIP
11
LEVER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A1243002125, +001A2013010318, +001A1299930810
11
LEVER ACCELERATOR PEDAL
11
LEVER ACCELERATOR PEDAL
14
LEVER ACCELERATOR PEDAL,B 838715,J 003393
14
LEVER ONLY USED W/ACCELERATION SKID CONTROL (ASR)
17
LEVER ONLY USED W/ACCELERATION SKID CONTROL (ASR)
20
SWITCH ONLY USED W/ACCELERATION SKID CONTROL (ASR)
23
PLUG PIN0.5-2.0 MM2
26
SCREW ONLY USED W/ACCELERATION SKID CONTROL (ASR)
26
SCREW , Replaced By: A0049906112
27
PLUG INTERMEDIATE CONNECTOR,STARTING LOCK
28
SWITCH ONLY USED W/ACCELERATION SKID CONTROL (ASR)
29
PLUG PIN0.5-2.0 MM2
30
SCREW ONLY USED W/ACCELERATION SKID CONTROL (ASR)
30
SCREW , Replaced By: A0049906112
31
PLUG INTERMEDIATE CONNECTOR,STARTING LOCK
35
BEARING ACCELERATOR PEDAL BEARING
36
BEARING ACCELERATOR PEDAL BEARING,B 838715,J 003393
37
BEARING ACCELERATOR PEDAL BEARING TO 124 300 21 25
37
BEARING PEDAL LEVER TO FRONT PANEL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
38
FITTED WASHER ACCELERATOR PEDAL BEARING,B 838714,J 003392
41
LOCK RINGTO 000 553 37 01,000 553 39 01,
42
CLIP PEDAL LEVER TO BEARING,B 838715,J 003393
44
SHEET METAL SCREW BRACKET TO FIRE WALL 6.3X22
47
SCREW LICENSE PLATE TO BRACKET
48
COMBINATION BOLT BEARING TO FIRE WALL,B 838715,J 003393
50
WASHER COMPRESSED AIR LINE TO BRACKET
50
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
51
SPRING WASHER LICENSE PLATE TO BRACKET
53
GASKET BEARING TO FIRE WALL
56
NUT RETAINER LICENSE PLATE TO BRACKET
59
LEVER ,B 838715,J 003393 TO BE ADAPTED DURING ASSEMBLY
60
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
62
SPRING ACCELERATOR PEDAL TO 124 300 21 25
62
SPRING ACCELERATOR PEDAL,B 838714,J 003392
62
SPRING ACCELERATOR PEDAL,B 838715,J 003393
62
SPRING ONLY USED W/ACCELERATION SKID CONTROL (ASR)
65
STOP ACCELERATOR PEDAL,A 907056
68
GROMMET PASSAGE OF LINE THRU PARTITION PANEL, LEFT
71
SWITCH (KICK-DOWN SWITCH)
74
WIRE CABLE
74
WIRE CABLE
74
WIRE CABLE
74
WIRE CABLE
75
GUIDE
77
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
80
CLIP
83
BRACKET LINE MOUNTING 11 MM
86
CLAMP ELECTRIC CABLE TO BRAKE HOSE
89
CLAMP
