Mercedes N914114006007 - Болт

200 CE / E 200 FROM 09/89 124.060

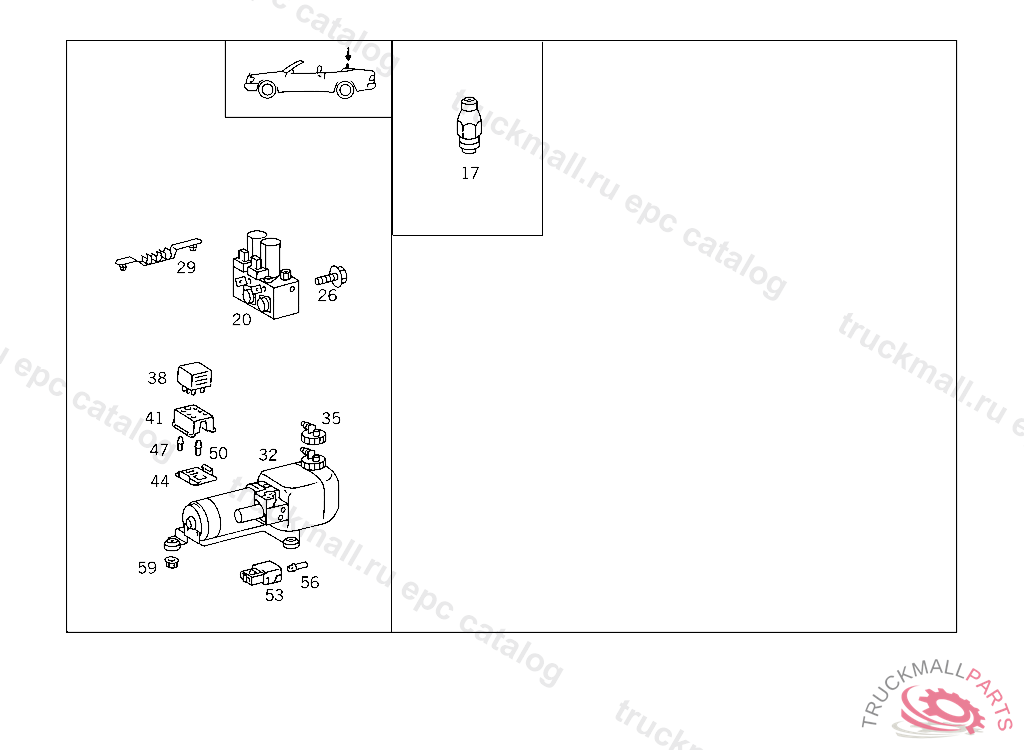

80 VACUUM SYSTEM - 175 FOLDING TOP ACTUATION,HYDRAULIC (SEMI-AUTOMATIC)

Поз.
Артикул
Описание
17
A1298001272
CYLINDER PAWLS
20
A1248001078
VALVE
20
A1248001678
VALVE
26
N914114006007
SCREW
29
A1248050714
BRACKET
32
A1248002348
PUMP SPARE WHEEL WELL, OPERATION OF ROLL-OVER BAR, KABEL BEI ENTFALL HAUPTVENTIL ZURUECKBINDEN
35
A1298000021
COVER OIL TANK, TO BE ADAPTED DURING ASSEMBLY
38
A0015427419
RELAY
41
A0065458028
PIN BUSHING HOUSING 4-POLE
44
A0095453028
COVER
47
A0035452626
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
50
A0055453628
PLUG PIN , Replaced By: A0015453826
53
A0125458628
PIN BUSHING HOUSING TELL-TALE LAMP ASD
56
A0035450626
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
59
N913002006009
NUT OIL TANK TO BRACKET
