300 CE-24 FROM 09/89 124.061

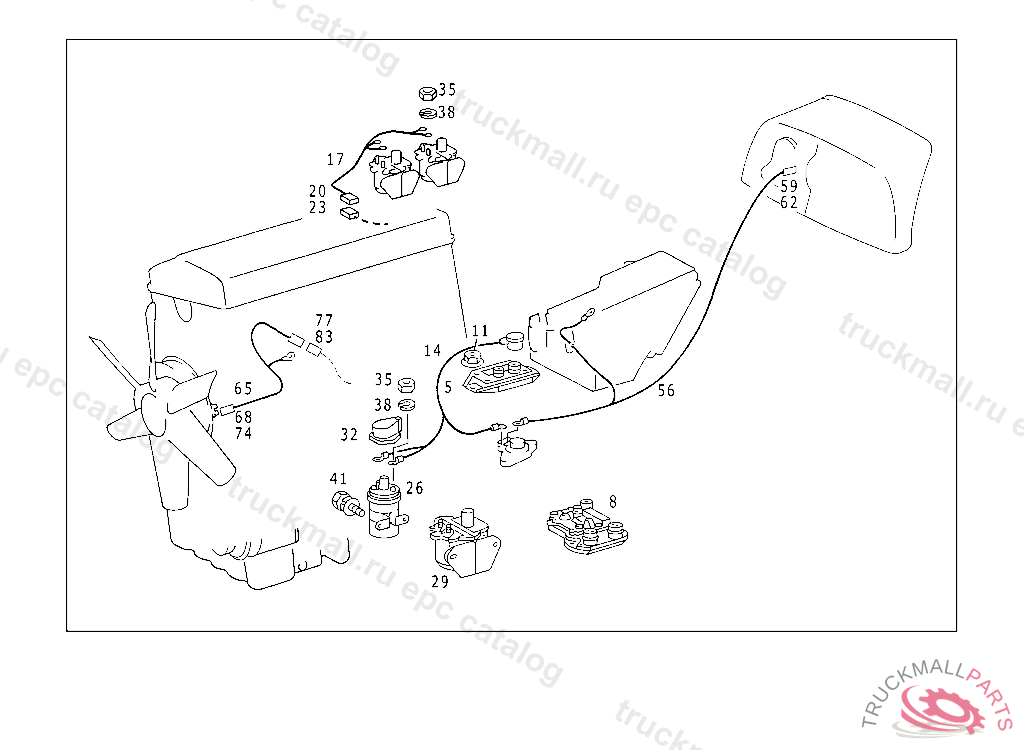

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 255 IGNITION SYSTEM AND CABLE HARNESS FOR TACHOMETER AND FAN

Поз.
Артикул
Описание
8
A0125452132
IGNITION CONTROL BOX
8
A0125452032
IGNITION CONTROL BOX
11
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
29
A0001586403
IGNITION COIL
29
A0001585803
IGNITION COIL
32
A0001582285
SUPPRESSOR HOUSING IGNITION COIL
35
N000934006007
NUT BALL PIVOT TO LEVER
35
N000934005008
NUT TACHOGRAPH TO BRACKET
38
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
38
N912004005100
LOCK WASHER T-FITTING TO BRACKET
41
N914001006010
COMBINATION BOLT VACUUM LINE TO FRONT STIFFENING, FROM CHASSIS:107.025 000007 107.026 001620
