Главная
›
Mercedes
›
CAR
›
300 CE-24 FROM 09/89
›
124.061
›

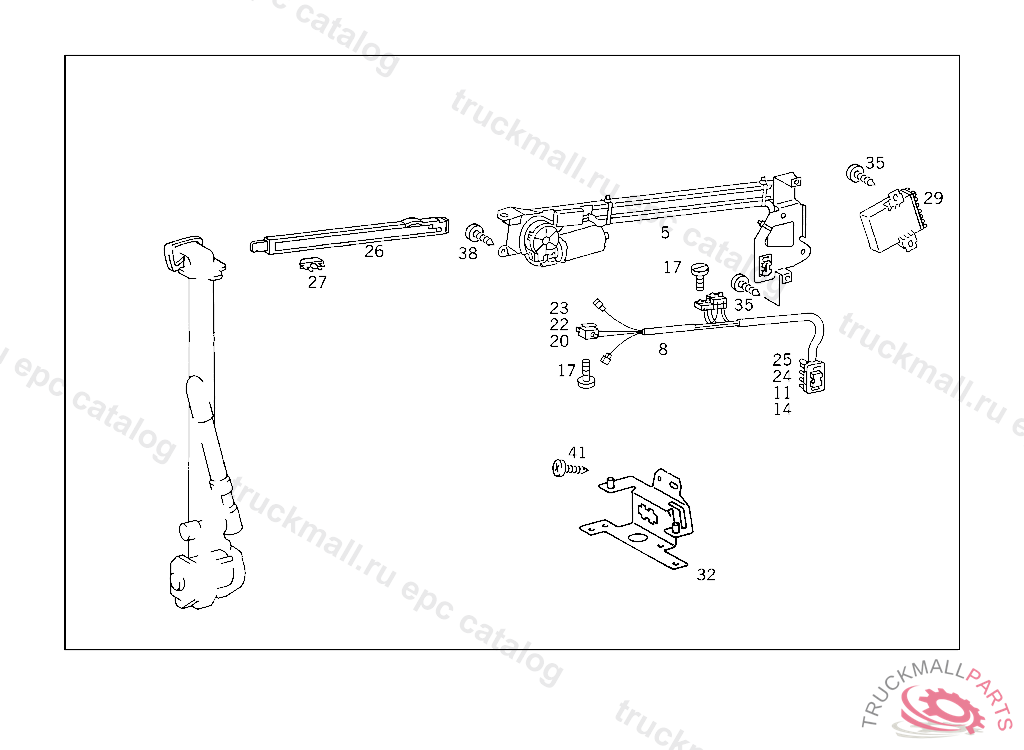

97 SEAT ACCESSORIES
›
030 BELT FEEDER
Mercedes A1248680176 - ЗАЩЕЛКА
300 CE-24 FROM 09/89 124.061
97 SEAT ACCESSORIES - 030 BELT FEEDER
Поз.
Артикул
Описание
5
A1248600604
DRIVE BELT FEEDER,RIGHT
5
A1248600504
DRIVE BELT FEEDER,LEFT
8
A1248201804
ELECTRIC CABLE RIGHT
8
A1248200704
ELECTRIC CABLE LEFT
20
A0165451428
PLUG PIN0.5-2.0 MM2
22
A0175451228
PLUG LEFT
23
A1405453440
BRACKET LEFT
24
A0035450626
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
25
A0195454928
PLUG RIGHT
26
A1248600057
ROD
27
A1248680176
PAWL
29
A1408202526
CONTROL UNIT BELT FEEDER
32
A1248209614
BRACKET AT RIGHT SIDE MEMBER
35
N000000000460
SHEET METAL SCREW BRACKET TO FLOOR PLATE
38
N000000000453
SHEET METAL SCREW MODULE TO HOUSING
41
N914126006000
SCREW , 183 003776 190 004444
