Mercedes N914114006007 - Болт

300 CE-24 FROM 09/89 124.061

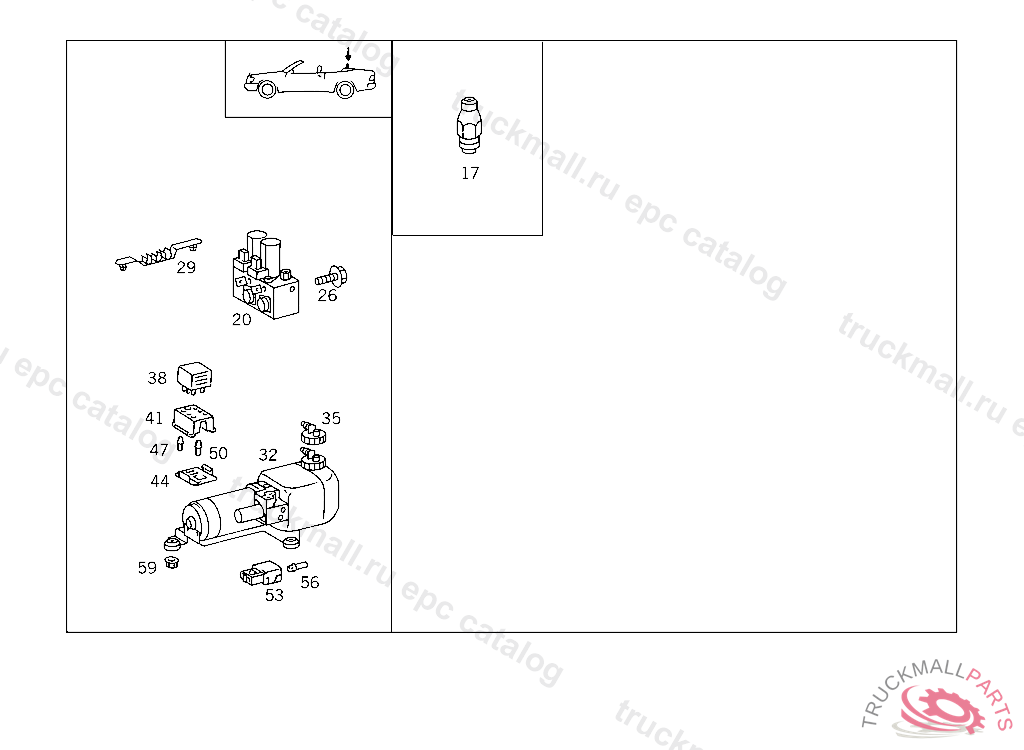

80 VACUUM SYSTEM - 168 ROLL-OVER BAR ACTUATION

Поз.
Артикул
Описание
17
A1298001272
CYLINDER PAWLS
20
A1248001678
VALVE
20
A1248001078
VALVE
26
N914114006007
SCREW
29
A1248050714
BRACKET
32
A1248002348
PUMP SPARE WHEEL WELL, OPERATION OF ROLL-OVER BAR, KABEL BEI ENTFALL HAUPTVENTIL ZURUECKBINDEN
35
A1298000021
COVER OIL TANK, TO BE ADAPTED DURING ASSEMBLY
38
A0015427419
RELAY
41
A0065458028
PIN BUSHING HOUSING 4-POLE
44
A0095453028
COVER
47
A0035452626
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
50
A0055453628
PLUG PIN , Replaced By: A0015453826
53
A0125458628
PIN BUSHING HOUSING TELL-TALE LAMP ASD
56
A0035450626
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
59
N913002006009
NUT OIL TANK TO BRACKET
