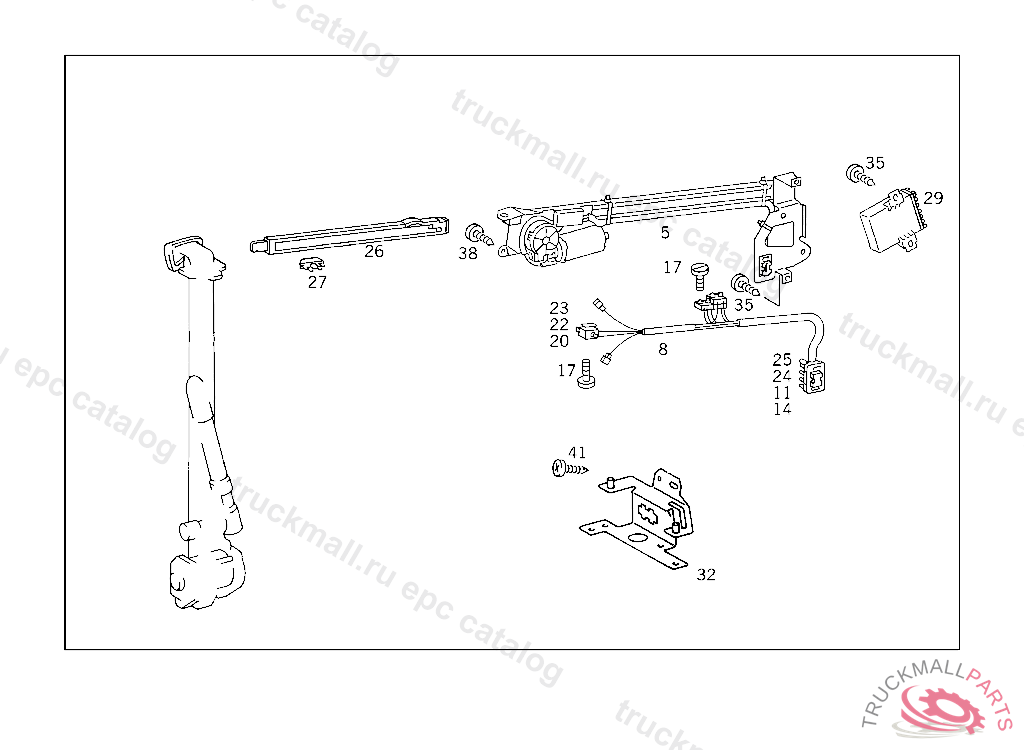

220 CE / E 220 FROM 09/89 - 124.062 - 97 SEAT ACCESSORIES
Поз.
Артикул
Описание
5
DRIVE BELT FEEDER,RIGHT
5
DRIVE BELT FEEDER,LEFT
8
ELECTRIC CABLE LEFT
8
ELECTRIC CABLE RIGHT
20
PLUG PIN0.5-2.0 MM2
22
PLUG LEFT
23
BRACKET LEFT
24
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
25
PLUG RIGHT
26
ROD
27
PAWL
29
CONTROL UNIT BELT FEEDER
32
BRACKET AT RIGHT SIDE MEMBER
35
SHEET METAL SCREW BRACKET TO FLOOR PLATE
38
SHEET METAL SCREW MODULE TO HOUSING
41
SCREW , 183 003776 190 004444
