Поз.
Артикул
Описание

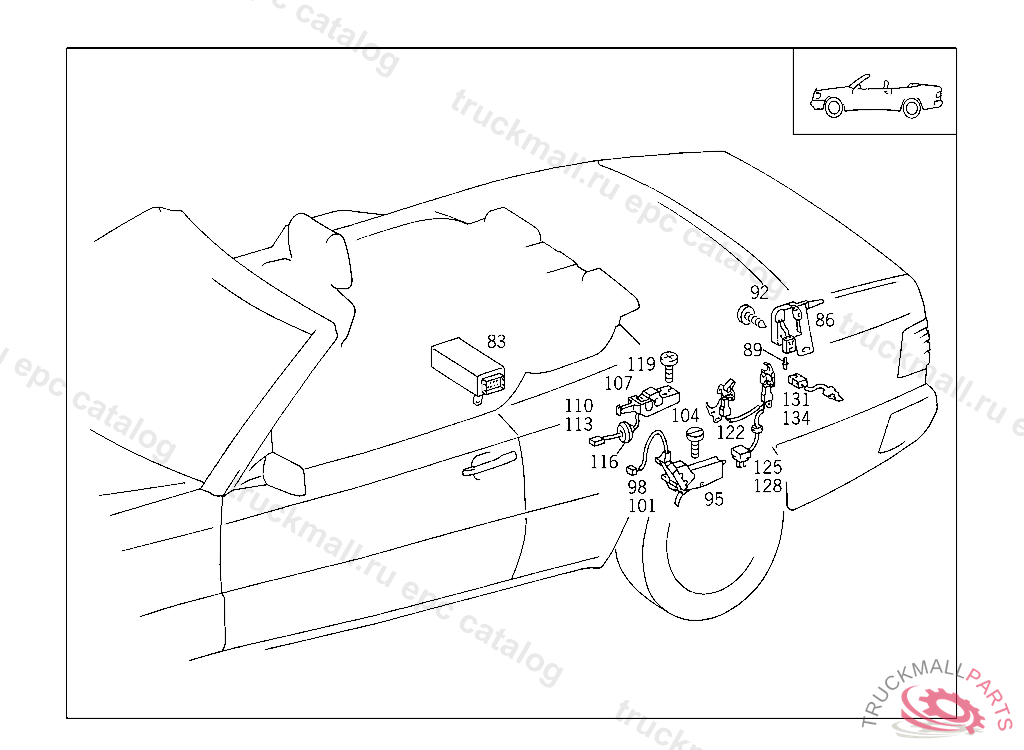

83
CONTROL UNIT ON FLOOR BELOW REAR SEAT,INSIDE RIGHT, HYDRAULIC FOLDING TOP CONTROL AND ROLL-OVER BARB 993871
83
CONTROL UNIT ON FLOOR BELOW REAR SEAT,INSIDE RIGHT, HYDRAULIC FOLDING TOP CONTROL AND ROLL-OVER BARB 993872
86
SWITCH REAR LID CENTRAL PART,FOLDING TOP CASE COVER
89
PLUG PIN
92
COMBINATION BOLT
95
SWITCH FOLDING TOP SUPPORT,LEFT
98
PIN BUSHING HOUSING CONTROL UNIT
101
ROUND PIN BUSHING2.5 MM2
104
SCREW
107
SWITCHHALTEBUEGEL AN VERDECKLAGER RECHTS
110
PLUG HOUSING
113
PLUG PIN
116
GROMMET , UP TO CHASSIS123.A 182585 F 027779 126.A 087563
119
SCREW
119
SCREW , Replaced By: N007985003150
122
SWITCHAN VERSCHLUSS VDKD MITTE
125
PLUG HOUSING ENGINE CABLE HARNESS PLUG-CONNECTION
128
PLUGTO 012 545 89 28, UP TO END OF MODEL YEAR '85
131
PLUG HOUSING
134
PLUG PIN
