Mercedes A1409900436 - Болт

200 TE / E 200 200-320 FROM 10/92, 250D-300D FROM 7/93 124.079

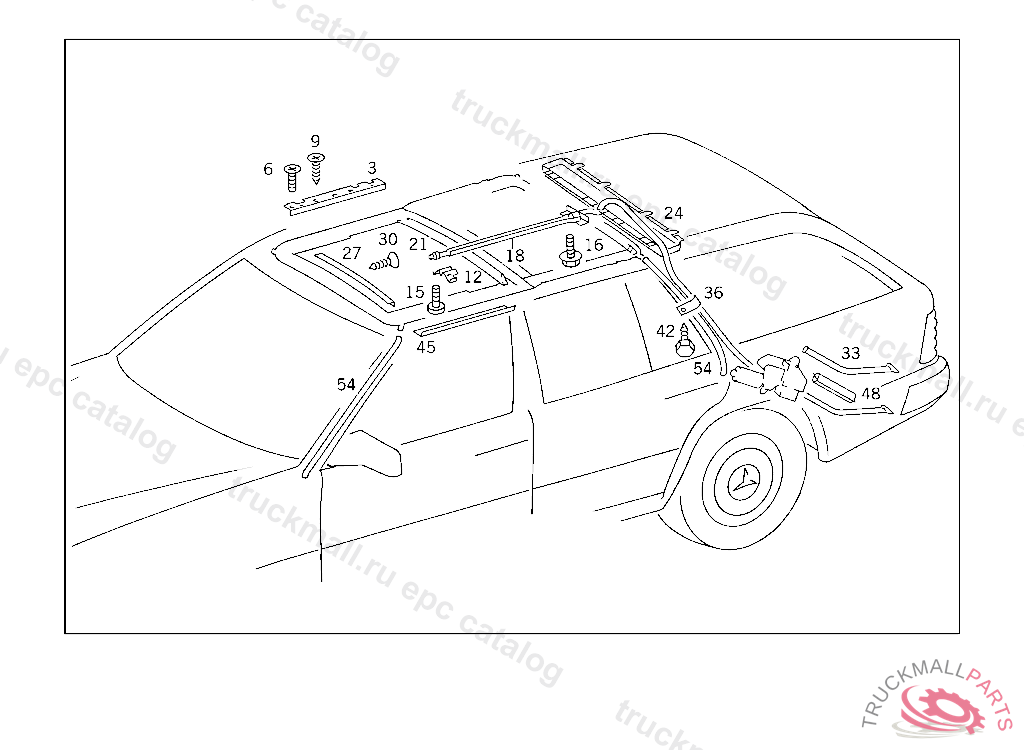

78 ELECTRIC SLIDING/LIFTING ROOF - 105 CABLE,SLIDING RAILS

Поз.
Артикул
Описание
3
A1247822026
SLIDING RAIL FRONT RIGHT
3
A1247821926
SLIDING RAIL FRONT LEFT
6
N000965004024
SCREW
9
A1409900436
SCREW
12
A1267820140
SHACKLE AT TRANSPORT BRIDGE
15
N914112005002
SCREW SHACKLE TO BRIDGE
16
A0049908601
SCREW
18
A1247800677
TUBE FROM MOTOR TO SLIDING ROOF PLATE
21
A1247801589
CABLE FROM MOTOR TO SLIDING ROOF PLATE
24
A1247820156
COVERING ON SLIDING ROOF DRIVE CABLE CONDUIT UNDER ROOF PANELLING
27
A2017820113
COVER RAIL
30
N007983002203
SHEET METAL SCREW
33
A1247820817
TUBE AT MOTOR
36
A1249950020
CLAMP TUBE TO REAR PILLAR
42
N007976004302
SHEET METAL SCREW , ONLY FOR MODELS 123.020,023,043,083
45
A1247821426
SLIDING RAIL BETWEEN HEADLINER AND SLIDING ROOF, RIGHT
45
A1247821326
SLIDING RAIL BETWEEN HEADLINER AND SLIDING ROOF, LEFT
48
A1247820091
INSULATION150 MM, TO BE ADAPTED DURING ASSEMBLY
54
A1247820796
HOSE WATER DRAIN,FRONT 1100 MM, TO BE ADAPTED DURING ASSEMBLY
