220 TE / E 220 200-320 FROM 10/92, 250D-300D FROM 7/93
124.082
35 REAR AXLE
001 HYDRAULIC SYSTEM USED WITH AUTOMATIC LOCKING DIFFERENTIAL (ASD) (FOR TYPE R129,W IL.3

Mercedes N304017006018 - Болт

220 TE / E 220 200-320 FROM 10/92, 250D-300D FROM 7/93 124.082

35 REAR AXLE - 001 HYDRAULIC SYSTEM USED WITH AUTOMATIC LOCKING DIFFERENTIAL (ASD) (FOR TYPE R129,W IL.3

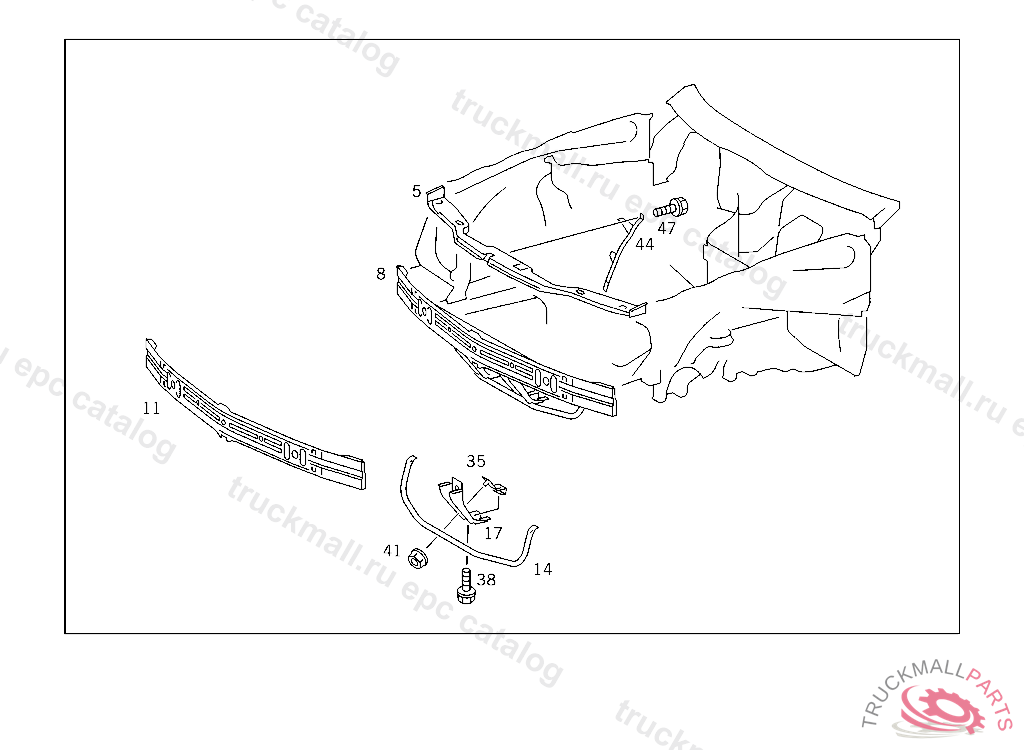

Поз.
Артикул
Описание
5
A1246200272
STIFFENING FRONT CENTRAL
8
A1246203786
SUPPORT RADIATOR SUPPORT, ORDER ADDITIONALLY FOR USE WITH HIGH-MOUNTED RADIATOR: 2 X 124 620 19 31
11
A1246260530
COVERING RADIATOR SUPPORT
14
A1246260916
REINFORCEMENT IN FRONT OF LOW-MOUNTED RADIATOR
17
A1246262231
CONSOLE RADIATOR SUPPORT, USED WITH LOW-MOUNTED RADIATOR
35
A1246202614
BRACKET RIGHT RADIATOR MOUNTING CONSOLE
38
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
38
N914007006012
COMBINATION BOLT , Replaced By: N304017006018, +001N006902006102
41
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
44
A1246203785
STRUT BETWEEN FRONT CROSS MEMBER AND FRONT CENTRAL STIFFENING
47
N910105006002
HEXAGON HEAD BOLT
