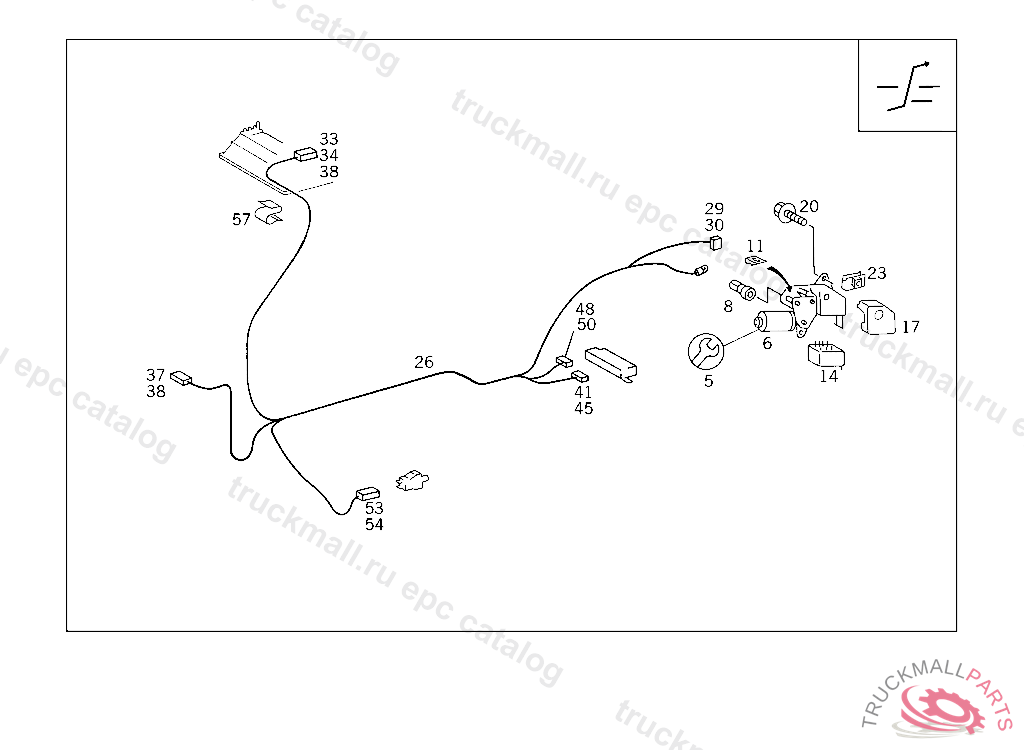

Поз.
Артикул
Описание
5
REPAIR KIT ELECTRIC SLIDING ROOF MOTOR
6
DRIVE ELECTRIC SLIDING ROOF
8
CAP , 033 102016 123 329278 130 276373
11
CLIP
14
RELAY ELECTRIC SLIDING ROOF MOTOR
17
COVERING ELECTRIC SLIDING ROOF MOTOR
20
HEXAGON HEAD BOLT
23
NUT RETAINER
26
CABLE HARNESS ELECTRIC SLIDING ROOF
26
CABLE HARNESS ELECTRIC SLIDING ROOF
29
PIN BUSHING HOUSING HEADLAMP,WIPER MOTOR,BLOWER SWITCH
30
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
33
PIN BUSHING HOUSING MIRROR ADJUSTMENT SWITCH, 6-POLE
34
COVERTO 010 545 11 28
37
PIN BUSHING HOUSING OUTBOARD TEMPERATURE INDICATOR
38
ROUND PIN BUSHING2.5 MM2
41
PIN BUSHING HOUSING CONTROL UNIT OF COMFORT CONTROL
41
PIN BUSHING HOUSING CONTROL UNIT OF COMFORT CONTROL
45
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
48
PIN BUSHING HOUSING BIPOLAR
50
PLUG PIN , 107.042 L.H.D. A 005252 107.042 R.H.D. A 007245 123. L.H.D. A 154544,F 019237 123. R.H.D. A 118487,F 020926
53
PIN BUSHING RADIO SET
54
INSULATING SLEEVETO 000 546 43 40
57
CLIP CABLE HARNESS TO ROOF RAIL
57
CLIP WIRE CABLE TO AIR CLEANER
