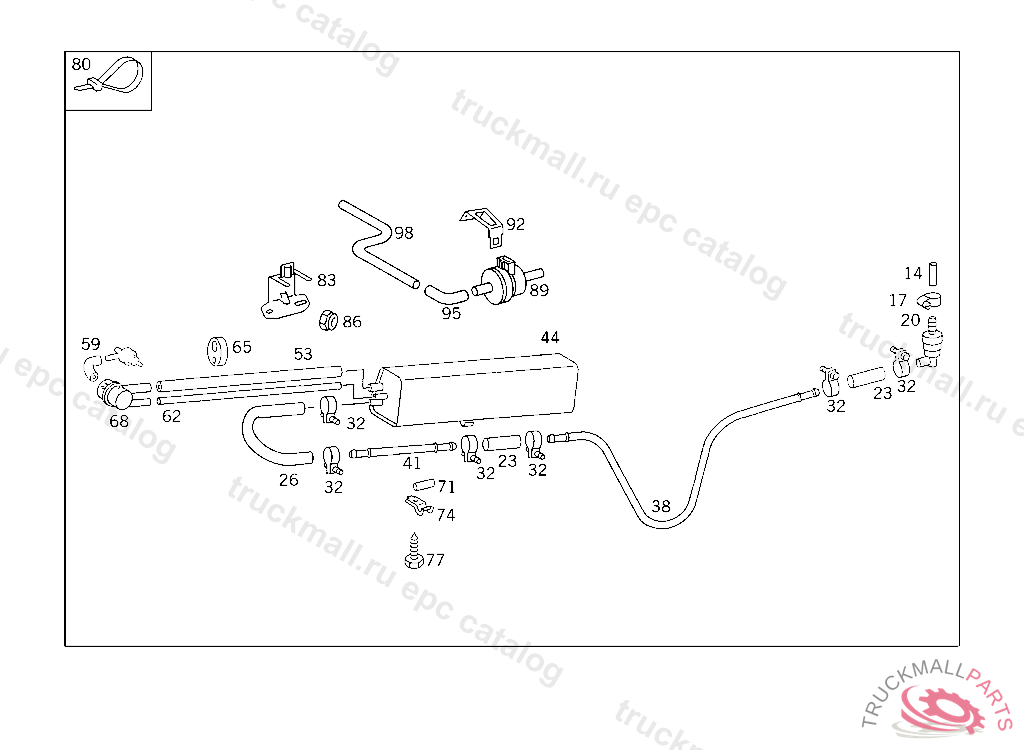

Поз.
Артикул
Описание
14
HOSE ***
17
LOOM TIE
20
VALVE BREATHER LINE,K 169122
20
VALVE BREATHER LINE,K 169122
23
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
23
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
23
HOSE FROM FEED LINE TO FILTER 240 MM
26
HOSE FROM ACTIVATED CHARCOAL FILTER TO BREATHER LINE
32
LOOM TIE
38
BREATHER PIPE REAR
41
BREATHER PIPE FRONT
44
ACTIVATED CHARCOAL FILTER , 020,021,023 ONLY ON RETROFIT/CATALYST VEHICLES
53
HOSE ***
62
HOSE FROM ACTIVATED CHARCOAL FILTER TO REGENERATION VALVE,C 013142SIEHE KG 15
62
PLASTIC PIPE AERATION, ORDER BY THE METER
62
HOSE FROM ACTIVATED CHARCOAL FILTER TO REGENERATION VALVE
62
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
62
HOSE , Replaced By: A1200780181
65
BRACKET , ONLY ON RETROFIT/CATALYST VEHICLES A123282 F031824
68
BOOT , 003,004,080,083 ONLY ON RETROFIT/CATALYST VEHICLESF 039532
71
HOSE HAND BRAKE VALVE BLEEDING, ORDER BY THE METER
74
CLAMP FORKED SUPPORT,TOP
77
SHEET METAL SCREW VALVE TO WINDOW SILL
80
LOOM TIE
83
BRACKET REGENERATION VALVE
86
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
86
NUT , Replaced By: N913023006001
86
NUT , Replaced By: N910112006001
