Mercedes A1244400209 -

E 280 JAPAN FROM 09/89 124.088

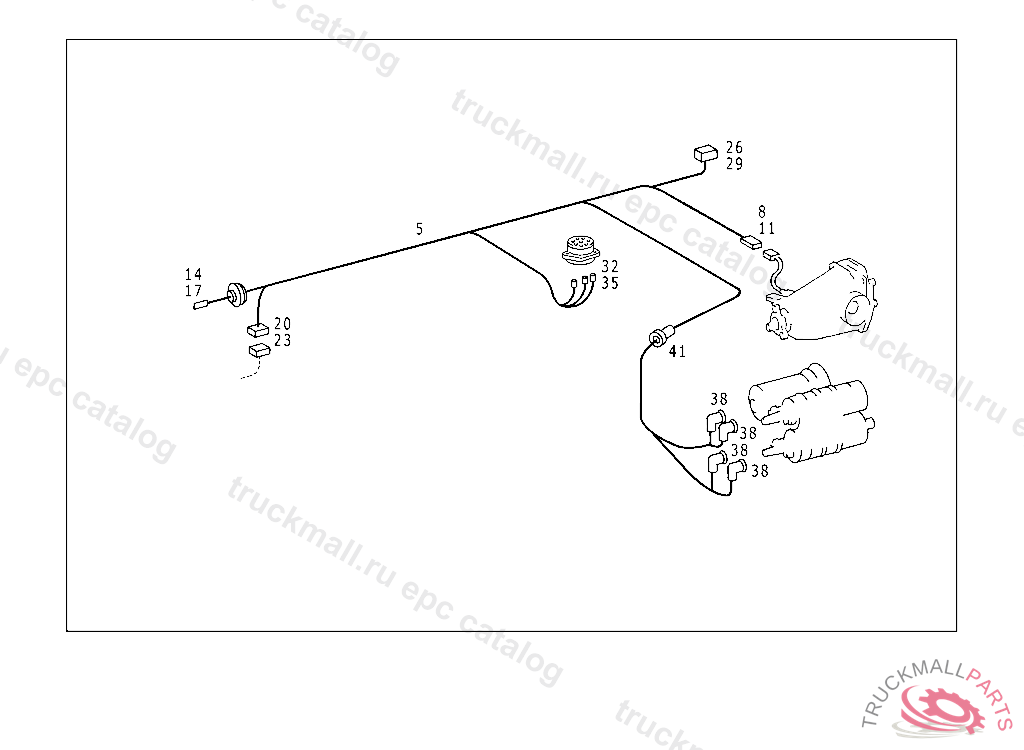

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 535 FUEL PUMP CABLE

Поз.
Артикул
Описание
5
A1244409508
CABLE HARNESS FUEL PUMP & SPEED SENSOR ABS/ASD
5
A1244400209
CABLE HARNESS FUEL PUMP & SPEED SENSOR ABS/ASR
8
A0085451028
COVERTO 008 545 08 28
8
A0085450828
PIN BUSHING HOUSING ELECTRIC CHANGE-OVER VALVE
11
A0015454426
ROUND PIN BUSHING4 MM2
14
A0095451428
COVERTO 011 545 10 28
14
A0115451028
PLUG HOUSING MAIN CABLE HARNESS
17
A0115451228
PLUG PIN
20
A0095453528
COVERTO 006 545 78 28
20
A0065457828
PLUG HOUSING
23
A0015453826
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
26
A0125458628
PIN BUSHING HOUSING TELL-TALE LAMP ASD
29
A0035450626
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
32
A0175457628
PIN BUSHING HOUSING. PLUG REAR AXLE TRANSFER CASE PLUGCONNECTION A
32
A0175458128
PIN BUSHING HOUSING REAR AXLE TRANSFER CASE PLUGCONNECTION E
32
A0005454140
BRACKETTO 017 545 79 28
32
A0175458028
PIN BUSHING HOUSING REAR AXLE TRANSFER CASE PLUGCONNECTION D
35
A0035454826
ROUND PIN BUSHING1 MM
38
A1239971681
GROMMET
41
A1119971481
GROMMET ENGINE COMPARTMENT LAMP
41
A0089970981
GROMMET FUEL PUMP BRANCH-OFF TO LUGGAGE COMPARTMENT FLOOR
