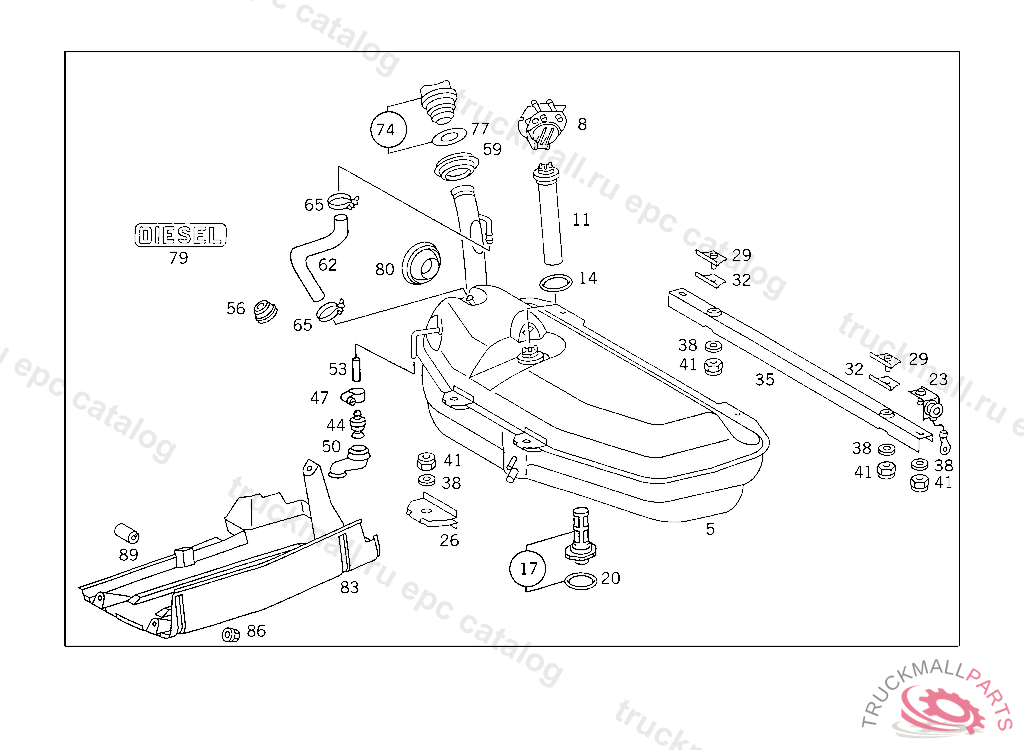

Поз.
Артикул
Описание
5
FUEL TANK72 LITER,F 197948
5
FUEL TANK70 LITER, USED WITHOUT ADDITIONAL HEATER
8
FUNNEL , Replaced By: A1694700029
8
FILLER NECK
11
GAUGE SENDER UNIT
14
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
17
FUEL STRAINER
20
SEAL RING
23
BRACKET LEFT
23
BRACKET RIGHT
26
REINFORCEMENT
29
REINFORCEMENT
32
REINFORCEMENT
35
SUPPORT
38
WASHER BRACKET TO FENDER BRACKET
38
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
41
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
41
NUT , Replaced By: N913004008001
41
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
56
GROMMET
59
GROMMET FILLER NECK THRU FENDER RECESS
62
HOSE FROM FUEL TANK TO FILLER NECK 515 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
65
HOSE CLAMP LINE MOUNTING
65
CLAMP , Replaced By: A0059970190
74
FILLER CAP CENTRAL LOCKING MECHANISM TO 124 470 08 04 / 09 04
77
SEAL RING
80
GROMMET
83
PROTECTIVE COVER , USED WITHOUT AUTOMATIC LOCKING DIFFERENTIAL (A S D)
83
PROTECTIVE COVER , ONLY USED WITH AUTOMATIC LIMITED-SLIP DIFFERENTIAL (A S D)
86
NUT COVERING TO CAB FIRE WALL
89
HOSE , ORDER BY THE METER 107.022 005201 ALSO INSTALLED ON 005190-005192,005194-005199. 107.023 012497 107.024 021804 ALSO INSTALLED ON 021794,021804
