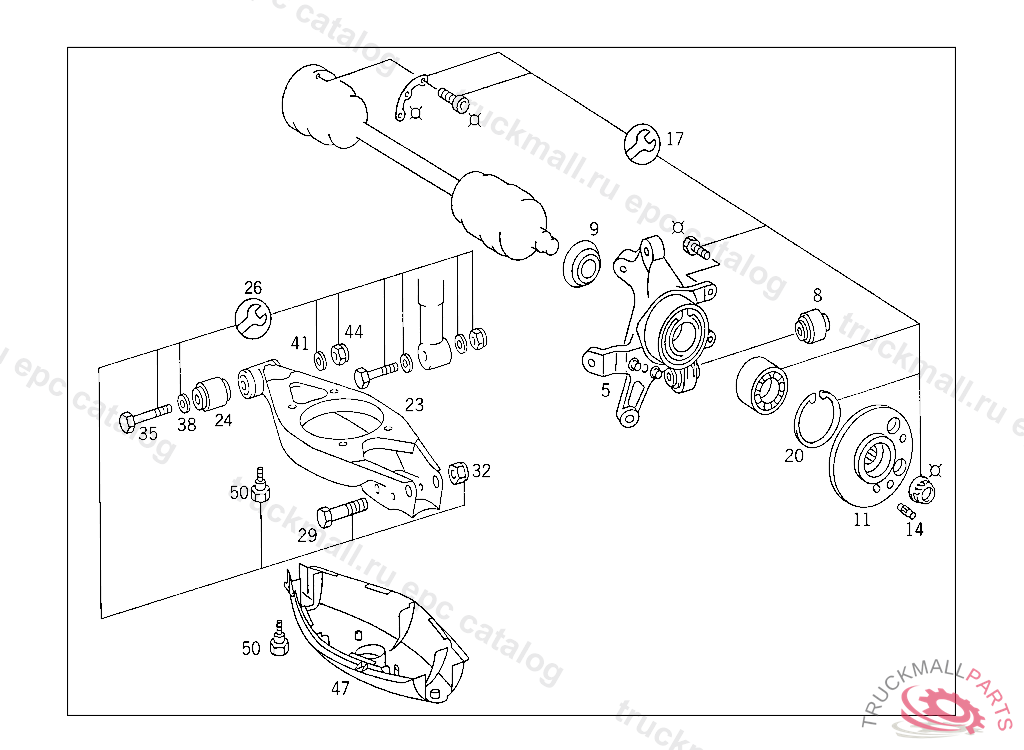

Поз.
Артикул
Описание
5
WHEEL BEARING WITH LOWER CONTROL ARM JOINT AND WHEEL MOUNTING,RIGHT
5
WHEEL BEARING WITH LOWER CONTROL ARM JOINT AND WHEEL MOUNTING,LEFT
8
JOINT
8
JOINT , Replaced By: A2203520227
9
SEAL RING , FOR SUBSEQUENT INSTALLATION IN CASE OF BAD ROAD CONDITIONS
11
FLANGE
14
PIN
17
REPAIR KIT REAR WHEEL BEARING
17
REPAIR KIT , Replaced By: A1249800516, +002A1243570175
20
LOCK
23
CONTROL ARM SPRING CONTROL ARM
24
RUBBER MOUNTING
26
REPAIR KIT MOUNTING PARTS
29
SCREW SPRING CONTROL ARM TO WHEEL BEARING
32
NUT BRACKET TO SIDE MEMBER
35
SCREW SPRING CONTROL ARM TO REAR SUBFRAME
38
WASHER , Replaced By: A1243520276
38
WASHER SPRING CONTROL ARM TO REAR SUBFRAME
41
WASHER SPRING CONTROL ARM TO REAR SUBFRAME
41
WASHER , Replaced By: A2103570275
44
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
47
COVERING SPRING CONTROL ARM
50
SCREW PROTECTIVE PLATE TO SPRING CONTROL ARM
