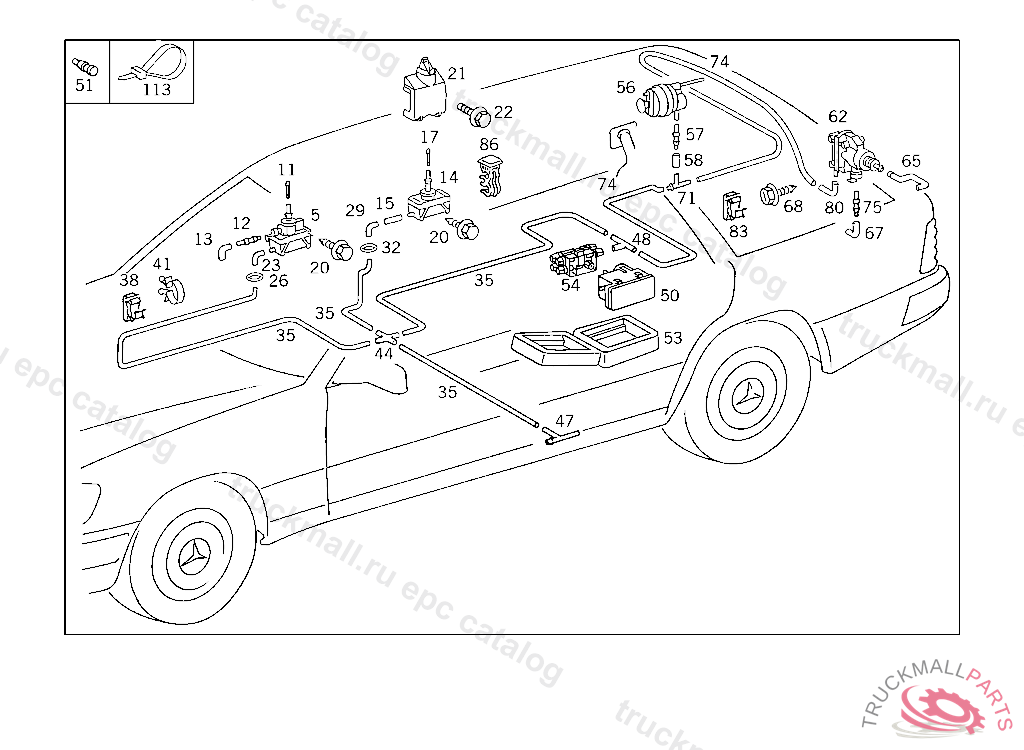

Поз.
Артикул
Описание
5
ELEMENT FRONT DOOR,F 158288
5
ELEMENT FRONT DOOR,F 158288
5
ELEMENT FRONT DOOR,F 158288
11
ROD FRONT DOOR VACUUM ELEMENT
12
PLUG VACUUM ELEMENT AT FILLER NECK FLAP,F 158288
13
HOSE *** 30 MM
14
ELEMENT REAR DOOR
14
ELEMENT REAR DOOR
14
ELEMENT REAR DOOR
15
HOSE *** 30 MM
15
COUPLING , A 585497 F 773609 VACUUM LINE WITH CONNECTOR TO BE CUT OFF TO THE LENGTH REQUIRED, AND TO BE CONNECTED TO EXISTING VACUUM LINE BY MEANS OF 007 997 61 82 HOSE
17
CONTROL ROD. ROD REAR DOOR VACUUM ELEMENT
20
SCREW ELEMENT ON FRONT AND REAR DOORS
21
CAP REAR DOOR ELEMENT
22
SCREW VACUUM ELEMENTS ON LEFT AND RIGHT REAR DOORS
23
HOSE TO ELEMENT AT FRONT SEAT
26
SEAL RING
29
HOSE *** 30 MM
32
RUBBER RING EMERGENCY LANTERN TO CAB
35
HOSE ORDER BY THE METER
38
CLIP
41
CLAMP BOWDEN CABLE TO CAB
44
DISTRIBUTOR MAIN FLOOR,RIGHT
47
DISTRIBUTOR HEATING AND FUEL CONSUMPTION INDICATOR
48
DISTRIBUTOR CENTRAL LOCKING MECHANISM PUMP,RIGHT
50
PUMP CENTRAL LOCKING MECHANISM, NOT WITH FRONT ORTHOPAEDIC BACKREST, ONLY USED WITH IMMOBILISER
50
PUMP CENTRAL LOCKING MECHANISM, NOT WITH FRONT ORTHOPAEDIC BACKREST
50
PUMP INFRARED REMOTE CONTROL & ORTHOPAEDIC FRONT BACKREST, ONLY USED WITH IMMOBILISER
50
PUMP INFRARED REMOTE CONTROL & ORTHOPAEDIC FRONT BACKREST
51
PLUG BLIND PLUG,FOR FREE CONNECTIONS
53
CAP BOTTOM AND TOP
54
DISTRIBUTOR WITH 11 CONNECTIONS
54
DISTRIBUTOR WITH 7 CONNECTIONS
56
ELEMENT FILLER NECK FLAP,F 158288
56
ELEMENT FILLER NECK FLAP,F 158288
57
PLUG VACUUM ELEMENT AT FILLER NECK FLAP,F 158288
58
HOSE *** 30 MM
62
ELEMENT FRONT DOOR,F 158288
62
ELEMENT REAR PANEL DOOR
62
ELEMENT FRONT DOOR,F 158288
62
ELEMENT REAR PANEL DOOR
62
ELEMENT FRONT DOOR,F 158288
62
ELEMENT REAR PANEL DOOR
62
ELEMENT , Replaced By: A1248001675, +001A1298050444, +001A0079976182
62
ELEMENT , Replaced By: A1248002275, +001A1298050444, +001A0079976182
62
ELEMENT , Replaced By: A1248001975, +001A1298050444, +001A0079976182
65
ROD REAR PANEL DOOR
67
HOSE *** 30 MM
68
SCREW ELEMENT ON FRONT AND REAR DOORS
71
DISTRIBUTOR HEATING AND FUEL CONSUMPTION INDICATOR
74
HOSE ORDER BY THE METER
75
PLUG VACUUM ELEMENT AT FILLER NECK FLAP,F 158288
80
HOSE *** 30 MM
83
CLIP
86
CLIP ENGINE HOOD RELEASE CABLE TO FRONT PANEL,BOTTOM
86
CLIP LIGHT-RANGE-REGULATOR VACUUM LINE
113
LOOM TIE
113
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
