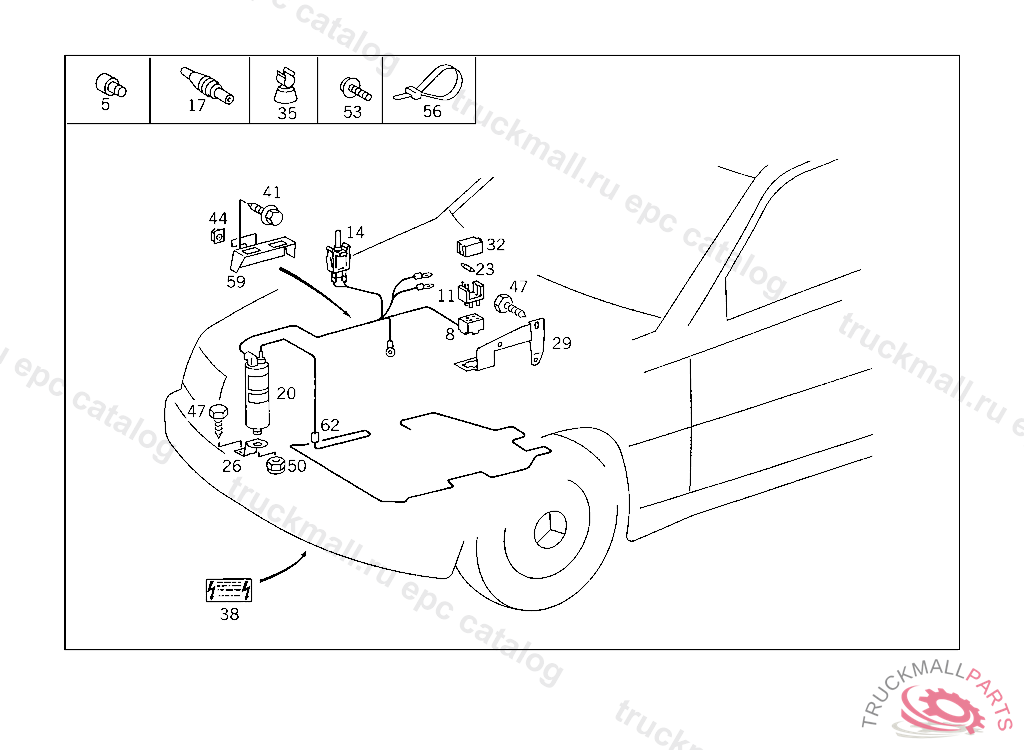

Поз.
Артикул
Описание
5
CABLE SLEEVE
8
ELECTRIC CABLE SUBSEQUENT INSTALLATION
8
CABLE HARNESS
11
FUSE BOX
14
SWITCH
17
PLUG
20
CONTROL UNIT
20
CONTROL UNIT , Replaced By: A0115459232
23
FUSE , Replaced By: N072581008101
23
FUSEA8
26
BRACKET CONTROL UNIT
29
BRACKET ADDITIONAL FUSE BOX
32
COVERING FUSE BOX
35
BRACKET
38
WARNING STRIP
41
SCREW. SHEET METAL SCREW
44
LOCK. CLIP-TYPE NUT
47
SHEET METAL SCREW ALARM UNIT TO STRUT
47
COMBINATION BOLT BRACKET TO FRAME
47
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
50
NUT SWITCH TO FLOOR PLATE
53
SCREW
56
LOOM TIE TO MOUNT PLASTIC PIPING
59
BRACKET
62
ELECTRIC CABLE ,F 131809
