Поз.
Артикул
Описание

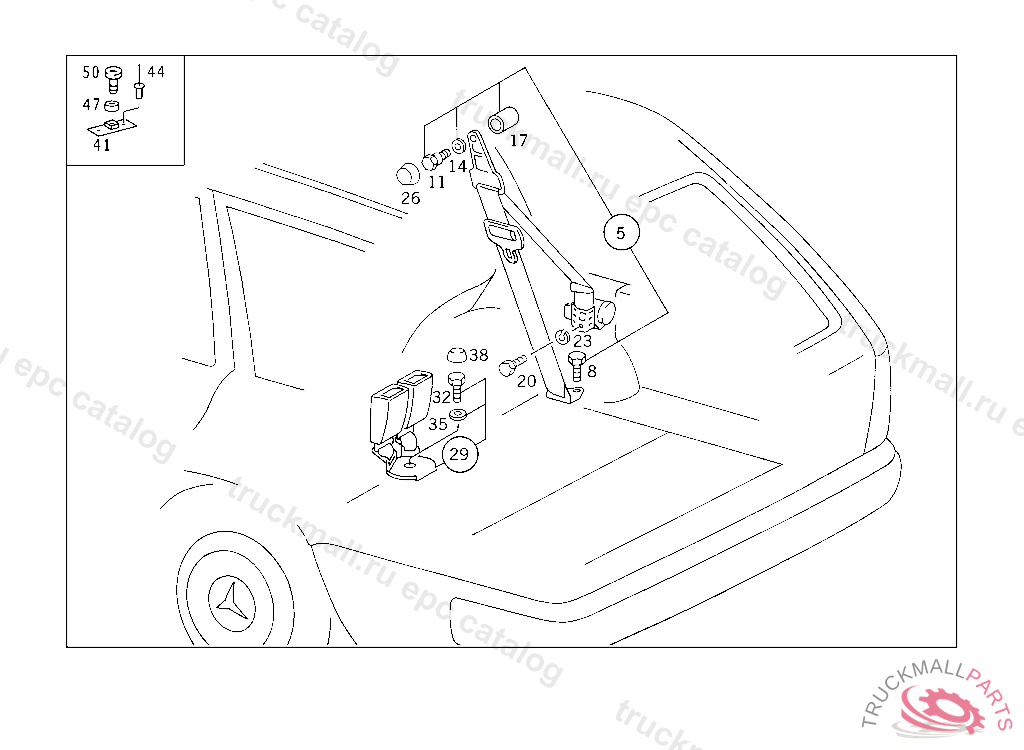

5
SAFETY BELT RIGHT FOLDING SEAT
5
SAFETY BELT LEFT FOLDING SEAT
8
SCREW SAFETY BELT TO SIDE MEMBER
11
SCREW GUIDE BRACKET TO TOP OF CENTRAL PILLAR
14
WASHERFA.KLIPPAN
17
SPACER TUBE GUIDE BRACKET TO CENTRAL PILLAR,REAR, OR TO ROOF RAIL
20
SCREW SAFETY BELT TO SIDE MEMBER
23
LOCK WASHER FITTING TO BRACKET
26
PLUG
26
LOCKING CAP. CAP , NO.9051I.......I.......I.......I.......I....... I, Replaced By: A6319973286
29
FASTENER CENTRAL
32
SCREW BELT LOCK TO FLOOR BELOW REAR SEAT
35
WASHERFA.KLIPPAN
38
PLUG
38
LOCKING CAP. CAP , NO.9051I.......I.......I.......I.......I....... I, Replaced By: A6319973286
41
THREADED CHUCK CHILD'S SEAT MOUNTING,F 385452
44
RIVET
47
SPACER TUBE
50
SCREW
