Mercedes A0001582285 - АВТОЗАПЧАСТЬ

300 TE-24,AMG 300 TE 3.4 200-300 9/89-10/92, 200D-300D 9/89-7/93 124.091

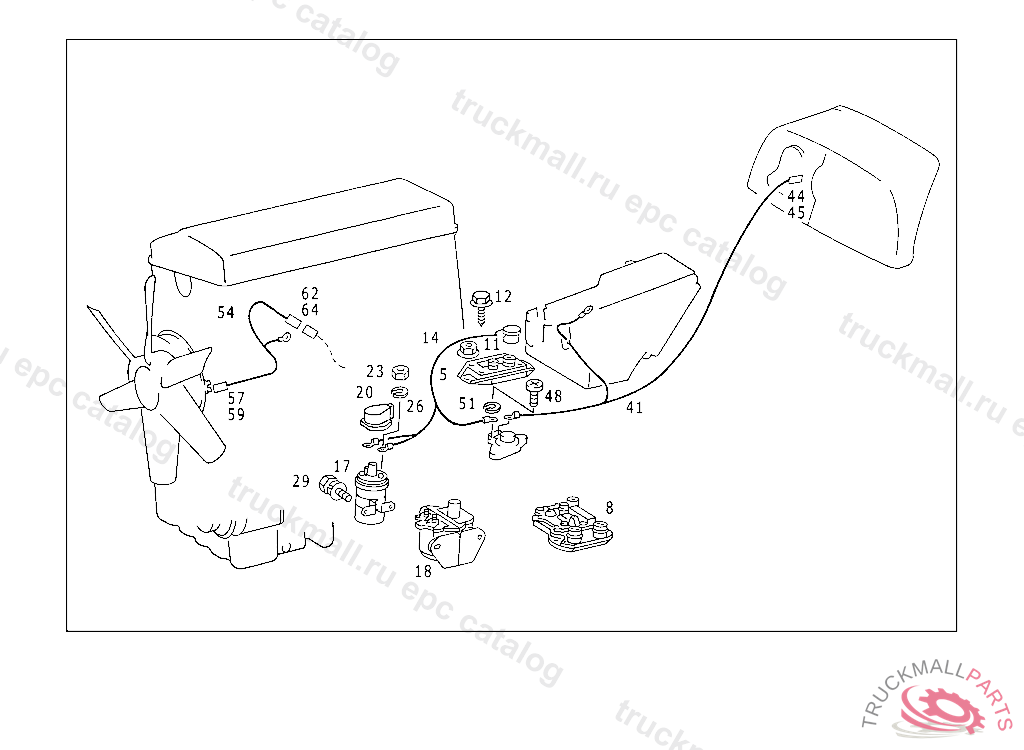

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 255 IGNITION SYSTEM AND CABLE HARNESS FOR TACHOMETER AND FAN

Поз.
Артикул
Описание
8
A0125452032
IGNITION CONTROL BOX
8
A0125452132
IGNITION CONTROL BOX
11
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
14
A1245404510
CABLE HARNESS TRANSISTORIZED IGNITION
18
A0001585803
IGNITION COIL
18
A0001586403
IGNITION COIL
20
A0001582285
SUPPRESSOR HOUSING IGNITION COIL
23
N000934005008
NUT TACHOGRAPH TO BRACKET
23
N000934006007
NUT BALL PIVOT TO LEVER
26
N912004005100
LOCK WASHER T-FITTING TO BRACKET
26
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
29
N914001006010
COMBINATION BOLT VACUUM LINE TO FRONT STIFFENING, FROM CHASSIS:107.025 000007 107.026 001620
41
A1245400434
CABLE HARNESS TACHOMETER
44
A0125458328
PIN BUSHING HOUSING SOLENOID VALVE,F 051968
45
A0035450626
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
48
N007985004125
SCREW , Replaced By: N007985004107
48
N007985004107
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
51
N912004004102
LOCK WASHER T-FITTING TO BRACKET
